Ventilator Window

NOTE: Fix the adjusting nut by bending the lock washer after the adjustment.

Remove the door trim and waterproof film. See VENTILATOR WINDOW ASSEMBLY  . Remove the ventilator window. Adjust the ventilator window by turning the adjusting nut so that the ventilator window can be operated smoothly. See Fig 1 .

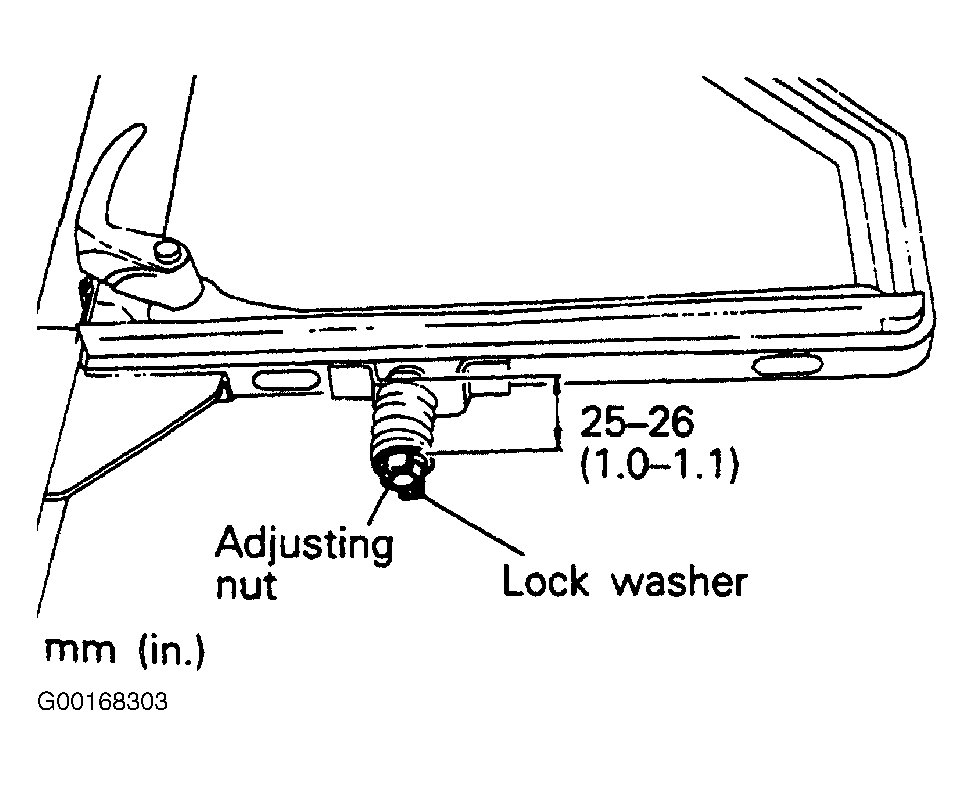

Fig 1: Adjusting Ventilator Window
G00168303Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
