Door Lock Relay
Door Lock Relay

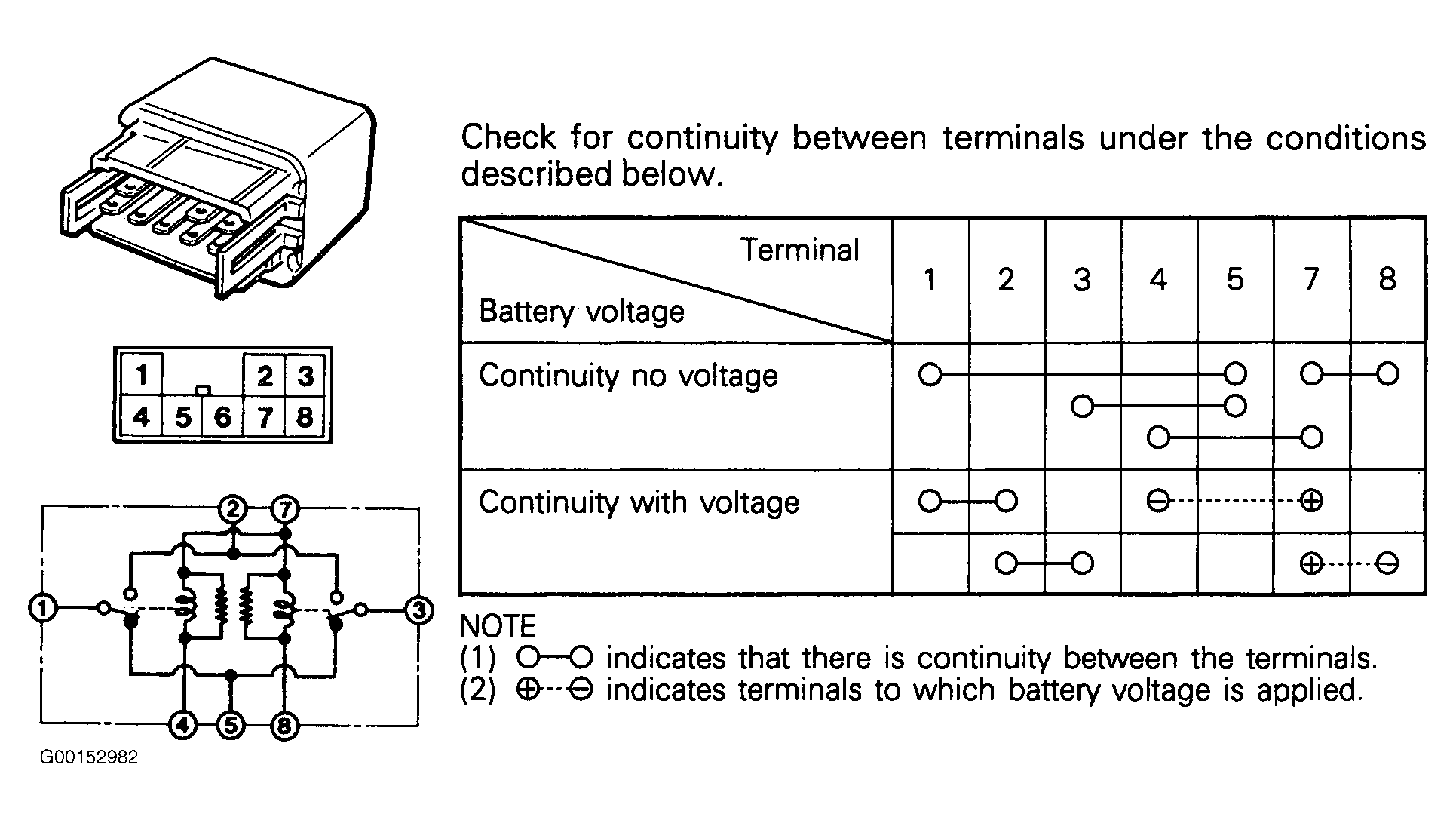

Fig 1: Testing Door Lock Relay
Courtesy of MITSUBISHI MOTORS OF AMERICA, INC.
Courtesy of MITSUBISHI MOTORS OF AMERICA, INC.
