ETACS Control Unit To Door Switch Input Circuit

NOTE: For circuit reference, see WIRING DIAGRAMS  .

NOTE: For checking driver door switch circuit, disconnect harness connector from the ETACS and check the wiring harness side.

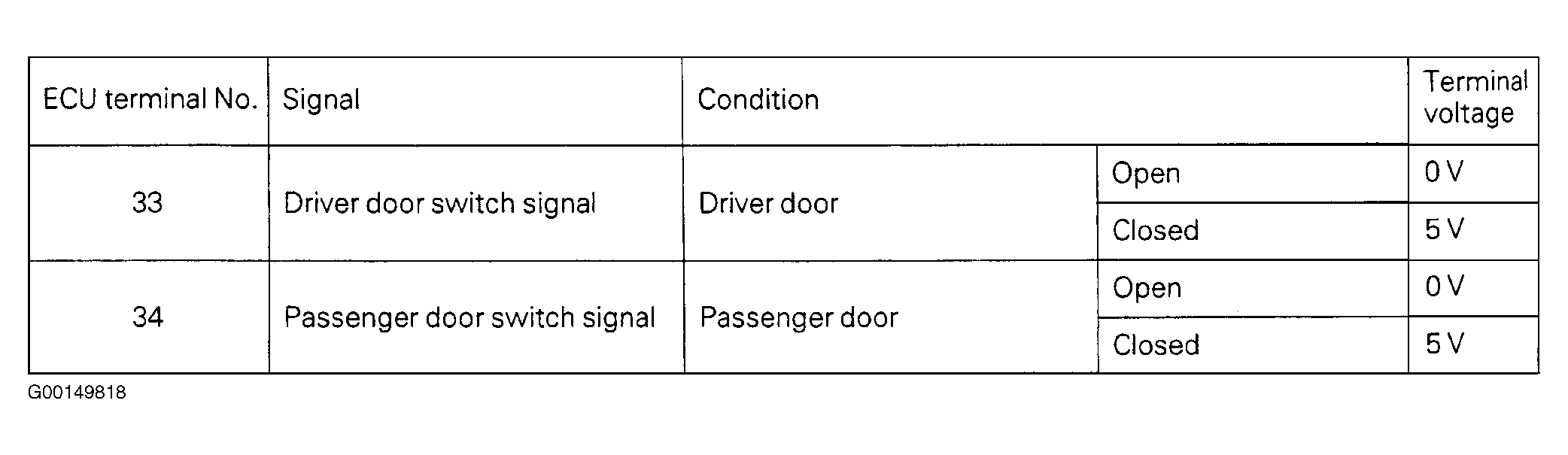

Fig 1: Testing Voltage Supply At ETACS Terminals To Door Switch Signal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

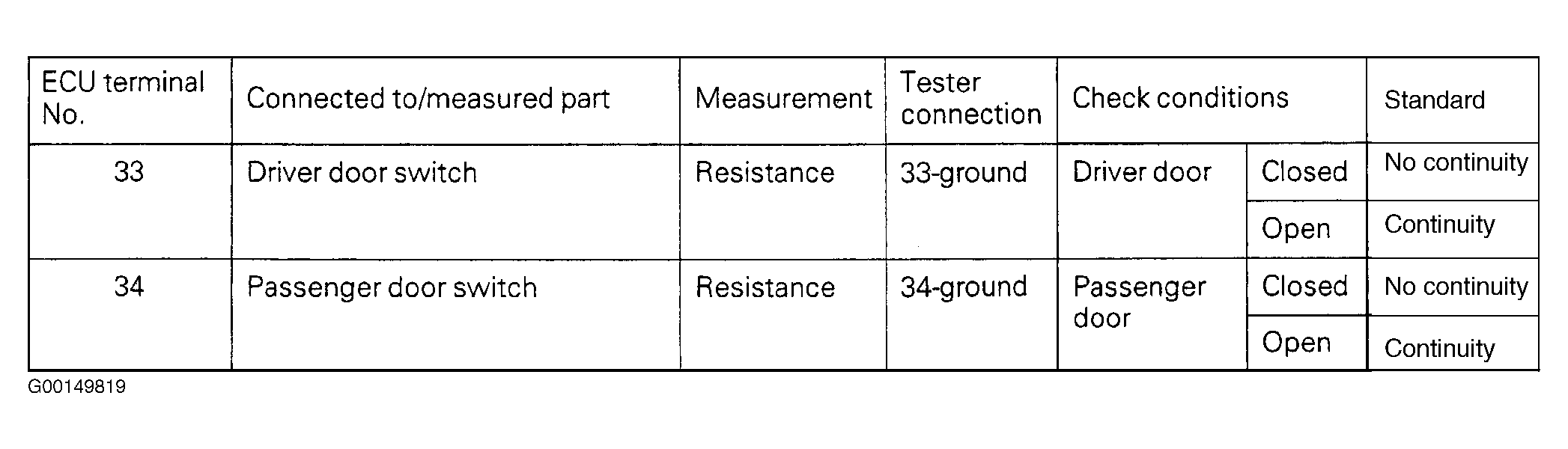

Fig 2: Checking Driver Door Switch Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
