ETACS Control Unit Lighting Monitor Ignition Switch Input Circuit

NOTE: For circuit reference, see WIRING DIAGRAMS  .

NOTE: For checking key reminder switch circuit, disconnect harness connector from the ETACS and check the wiring harness side.

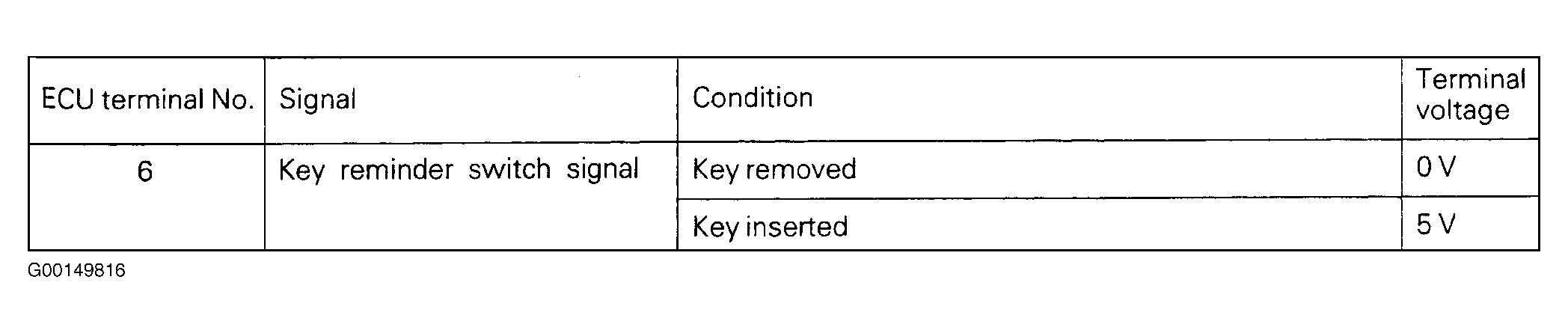

Fig 1: Pin Testing Voltage Supply At ETACS Terminals To Key Reminder Switch Signal

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

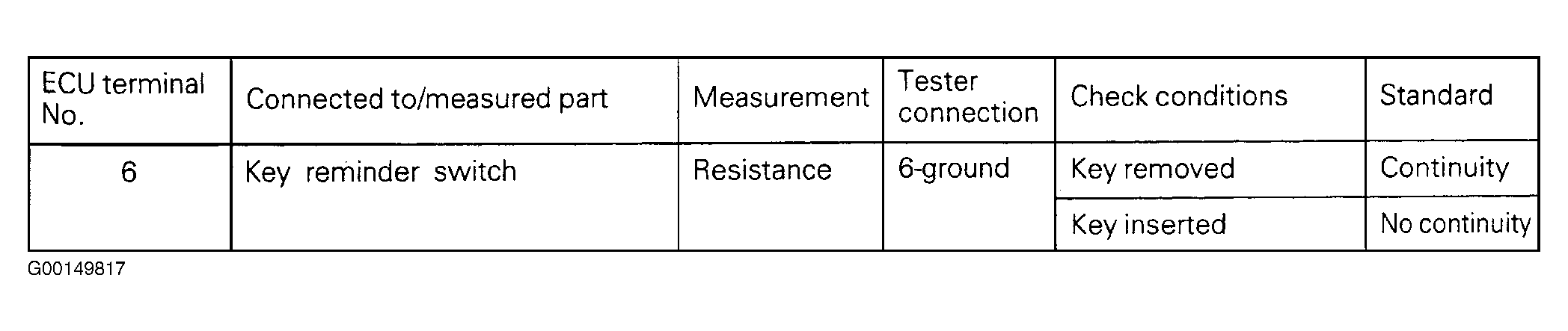

Fig 2: Checking Key Reminder Switch Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
