ETACS Control Unit Ground Status

NOTE: For circuit reference, see WIRING DIAGRAMS .

Disconnect harness connector from the ETACS and check the wiring harness side for continuity to ground.

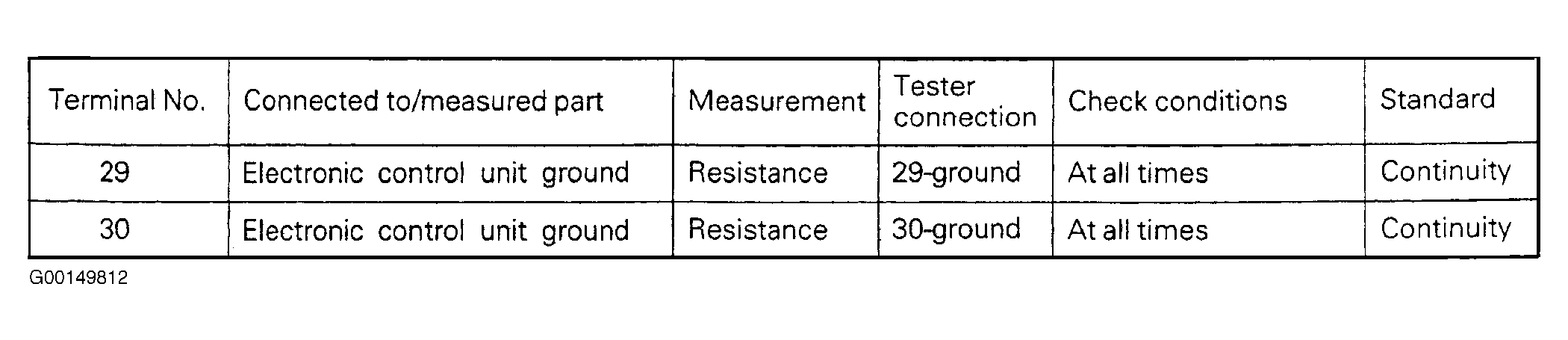

Fig 1: Checking ETACS Ground Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
