Wiring Diagrams

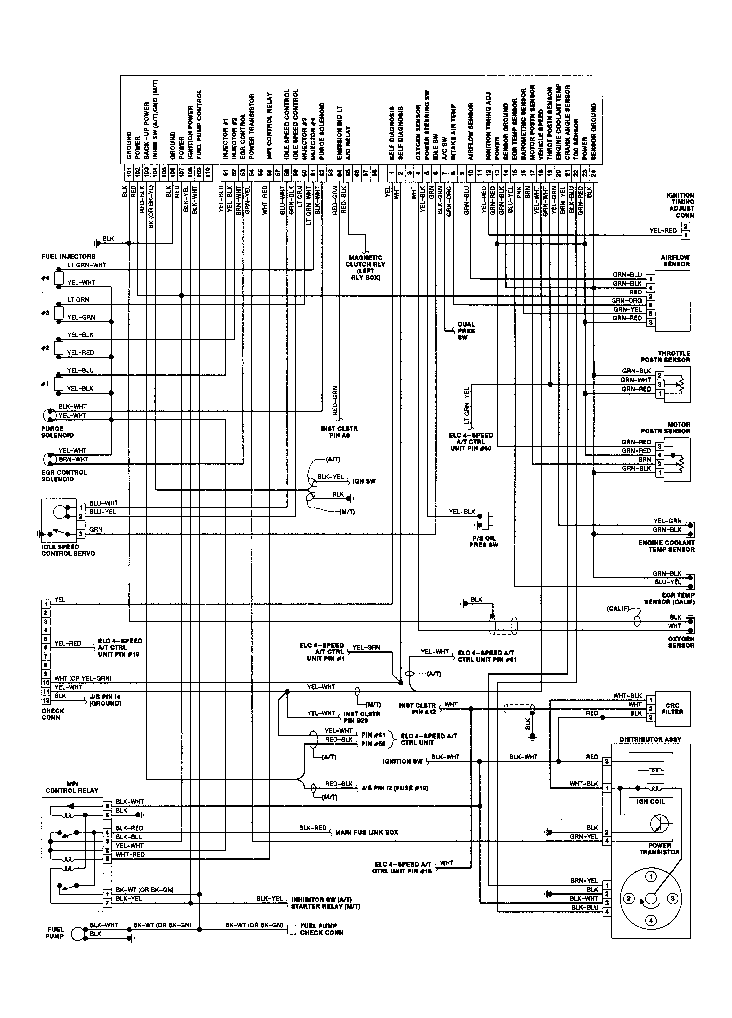

Fig 1: Eclipse 1.8L Wiring Diagram

G90C21669

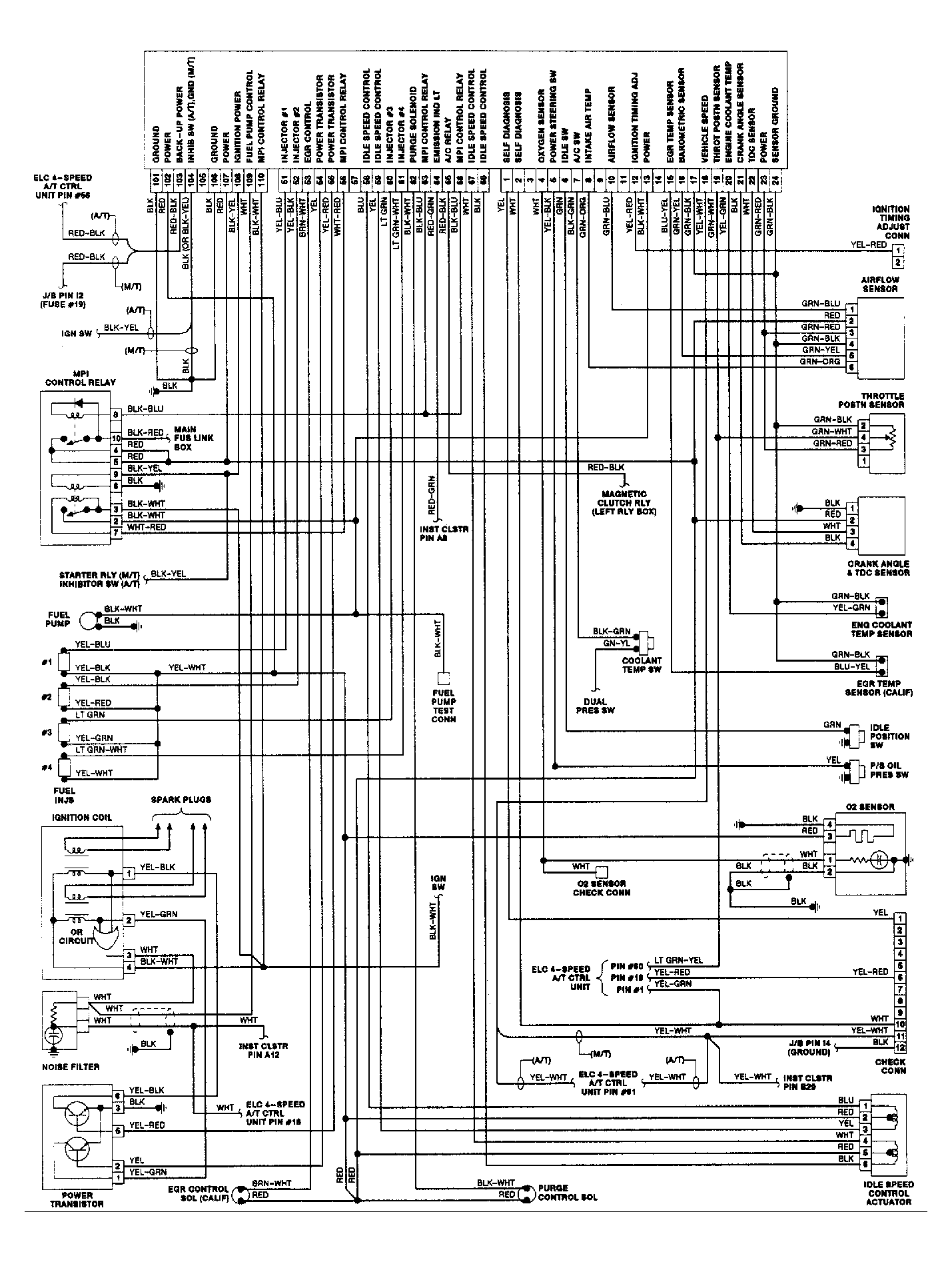

Fig 2: Eclipse 2.0L Wiring Diagram

G90F21670

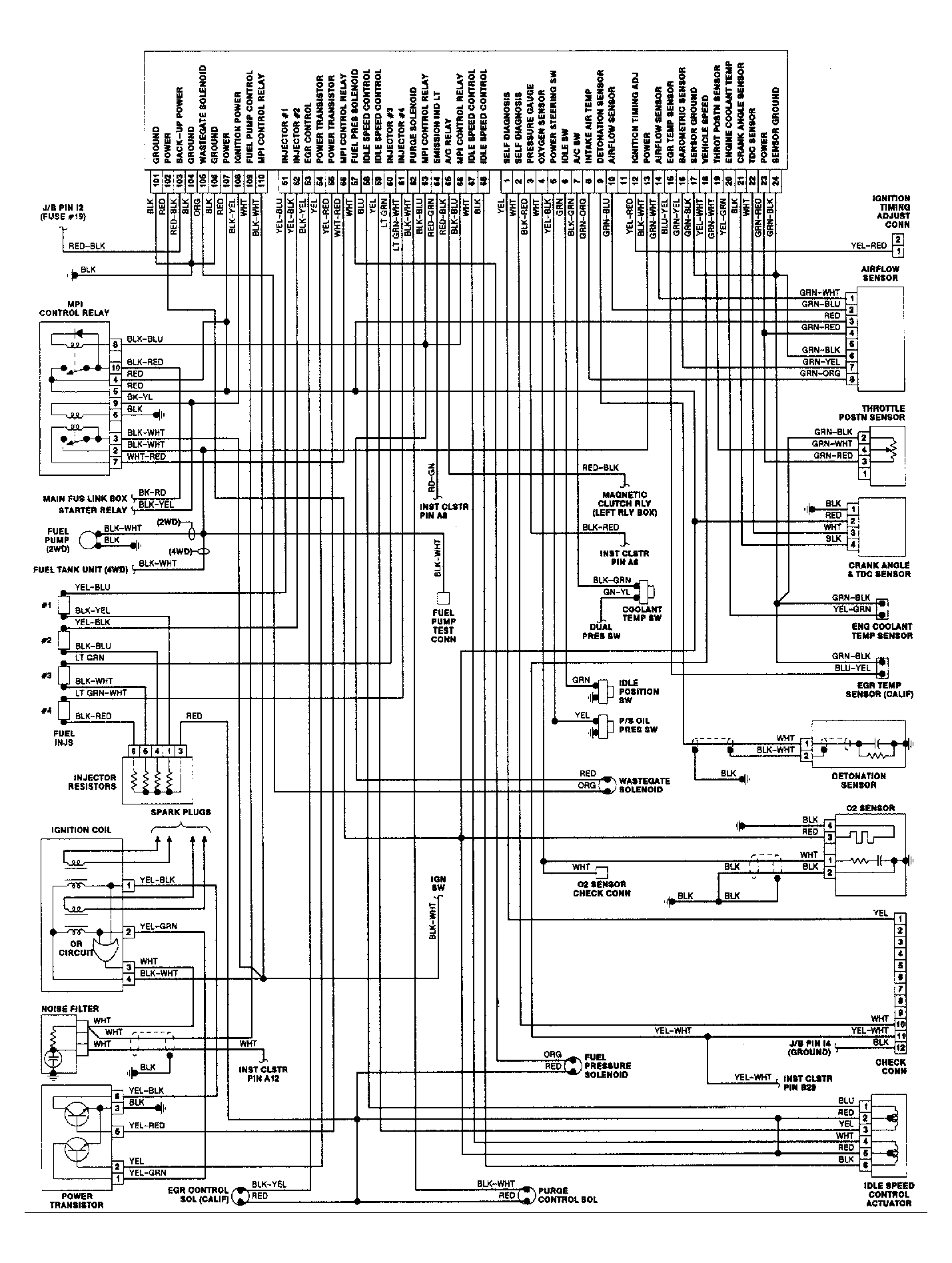

Fig 3: Eclipse 2.0L Turbo Wiring Diagram

G90G21671
