Neutral Safety Switch Adjustment: Eclipse

1. Place shift and manual control levers in Neutral. For adjustment, turn switch body in order to align small end of manual control lever with corresponding flange on switch body. Tighten switch mounting bolts to 84-108 INCH lbs. (10-12 N.m).
   CAUTION: DO NOT drop switch body.
2. Loosen nut at end of transaxle control cable and lightly pull in direction of switch. Torque nut to 84-120 INCH lbs. (10-14 N.m).
3. Ensure selector lever is in Neutral. Ensure lever correctly operates and functions at transaxle in range corresponding with that indicated by selector lever. See Fig 1.

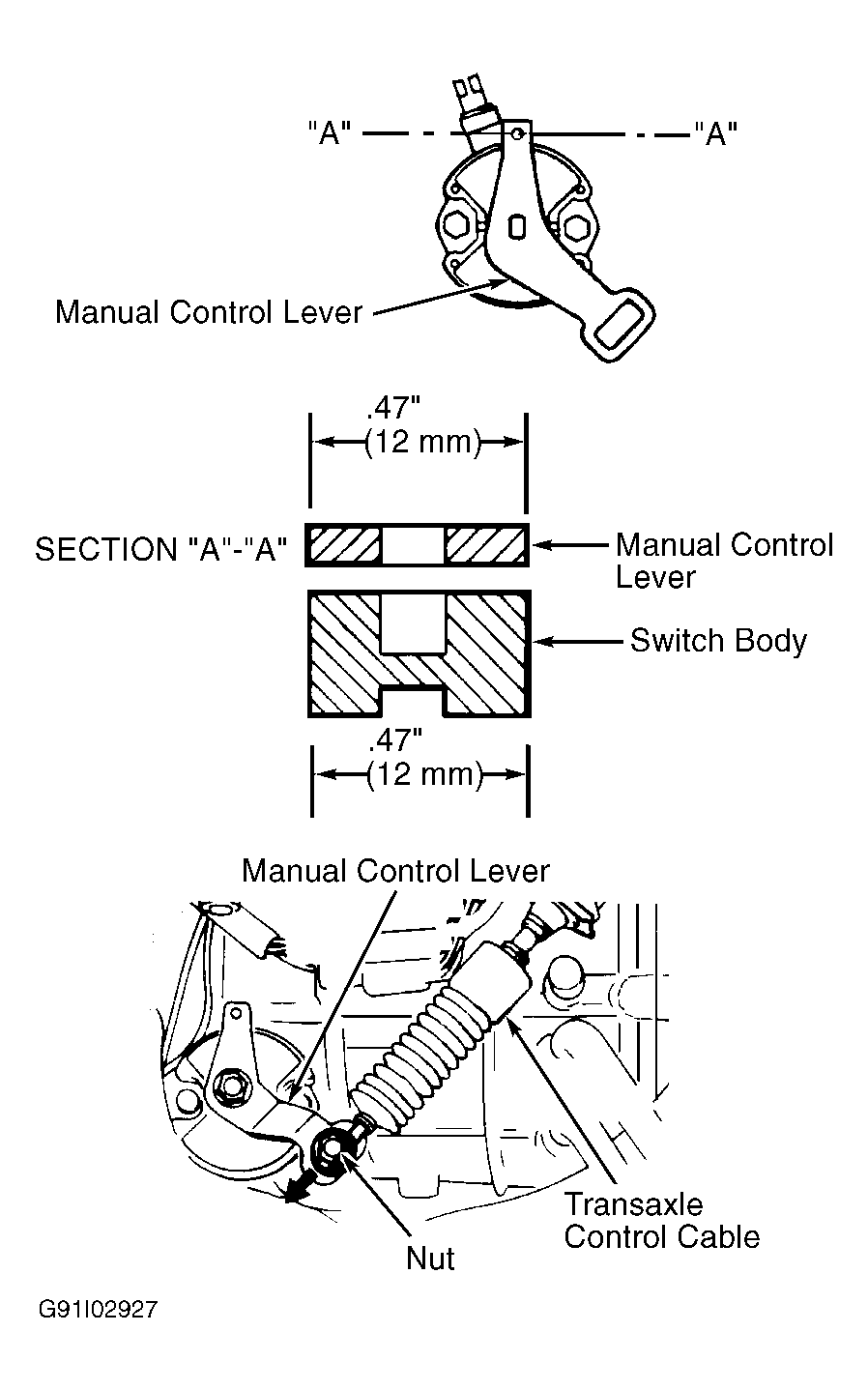

Fig 1: Adjusting Inhibitor (Neutral Safety) Switch (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
