Steering Column - Precis: Installation

1. To install, reverse removal procedure. Install cover assembly on intermediate shaft (if removed). Ensure bearing side of cover faces steering shaft side of intermediate shaft.
2. Apply grease to bearing and cover. Install 2-piece bearing into cover. See Fig 1 . Attach intermediate shaft lower joint to steering gear. Temporarily tighten cover bolts. Tighten lower joint clamp bolt.
3. Connect intermediate shaft upper joint to steering shaft. Ensure intermediate shaft is installed on steering gear so steering wheel will be centered. Attach steering column brackets to dash. Tighten clamp bolt of intermediate shaft. Tighten column bracket bolts.
4. Loosen cover assembly bolts. Position cover assembly so no clearance exists between joint and dust cover. Install remaining components.

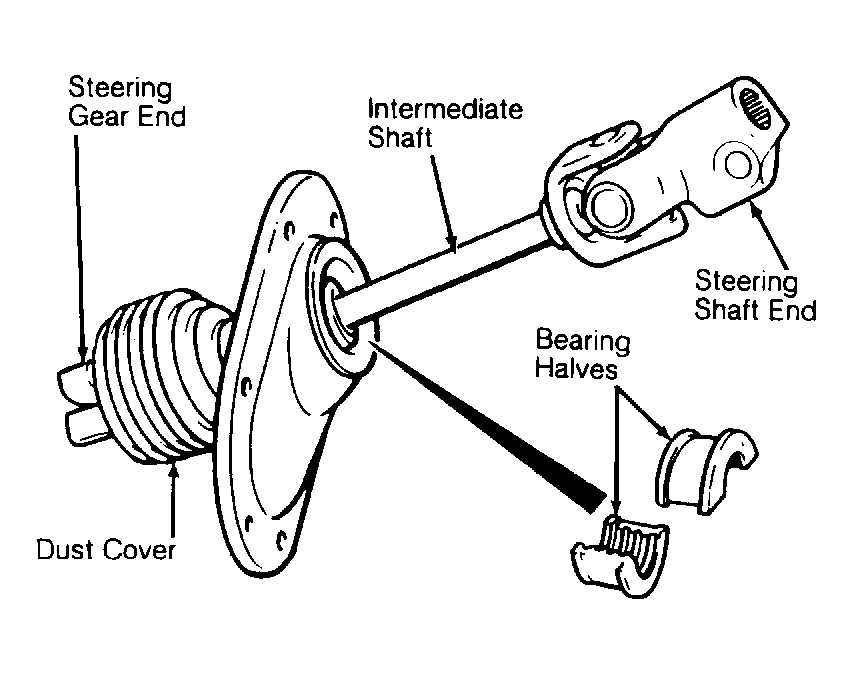

Fig 1: Cover Assembly & Bearing Installation (Precis)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Intermediate Shaft Installation (Precis)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
