Instrument Panel - Standard: Description

Standard instrument cluster includes speedometer, water temperature and fuel gauges. Oil pressure, brake fluid level warning and seat belt warning indicators are represented with light bulbs. Headlight switch is combined with turn signal switch and is located on steering column.

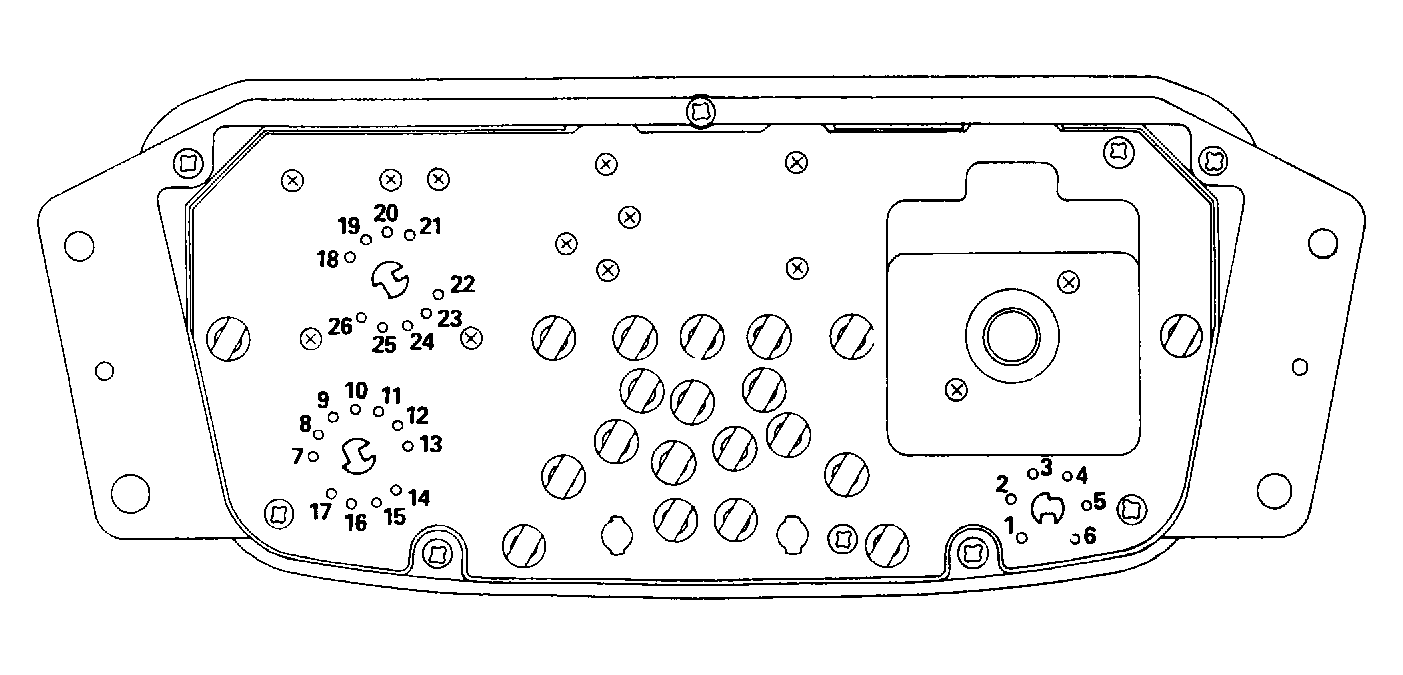

Fig 1: Instrument Panel Terminal Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

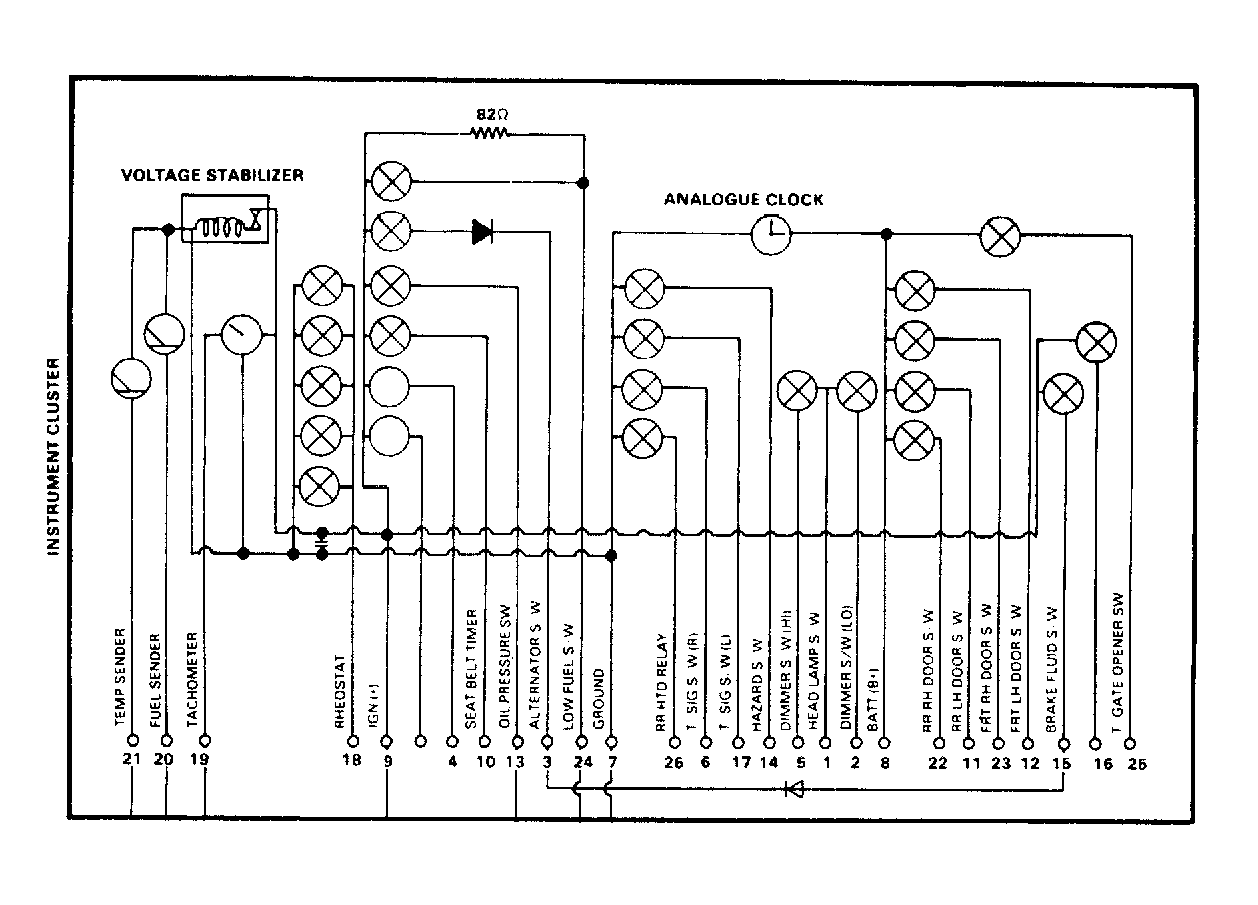

Fig 2: Instrument Panel Schematic & Terminal ID

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Combination Switch Terminal Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
