Alternator - MITSUBISHI: Description

Mitsubishi alternators are conventional 3-phase, self-rectifying type units containing 6 diodes (3 positive and 3 negative) which are used to rectify current. A case-mounted Integrated Circuit (IC) regulator is used on all models.

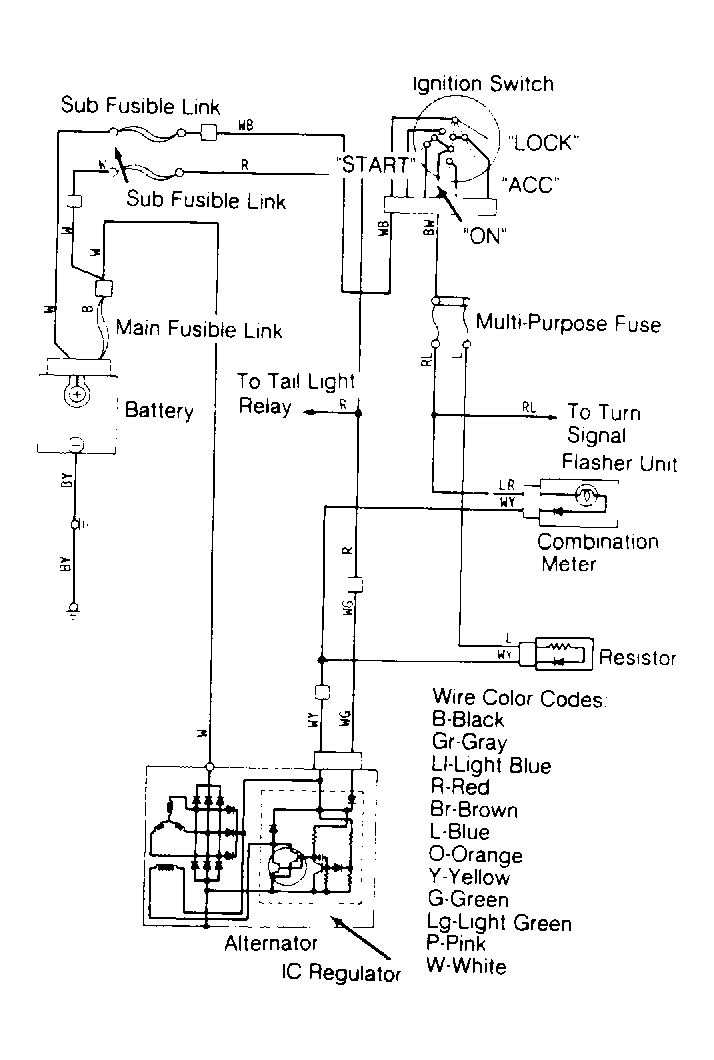

Fig 1: Mirage Charging System Wiring Schematic

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

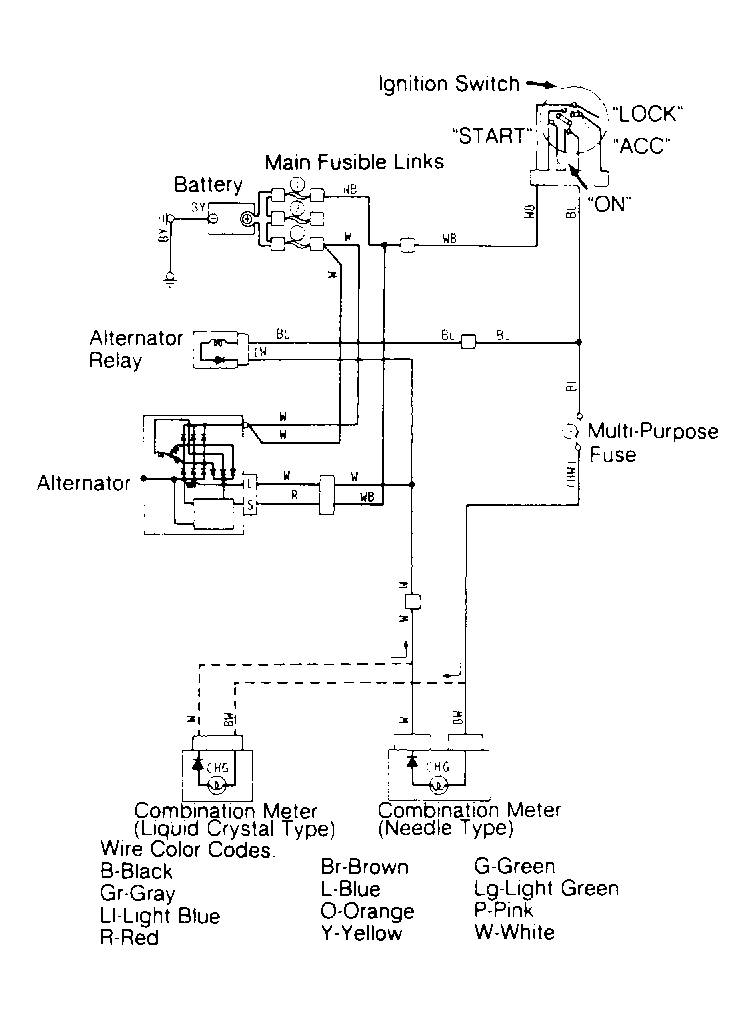

Fig 2: Starion Charging System Wiring Schematic

Courtesy of CHRYSLER MOTORS.

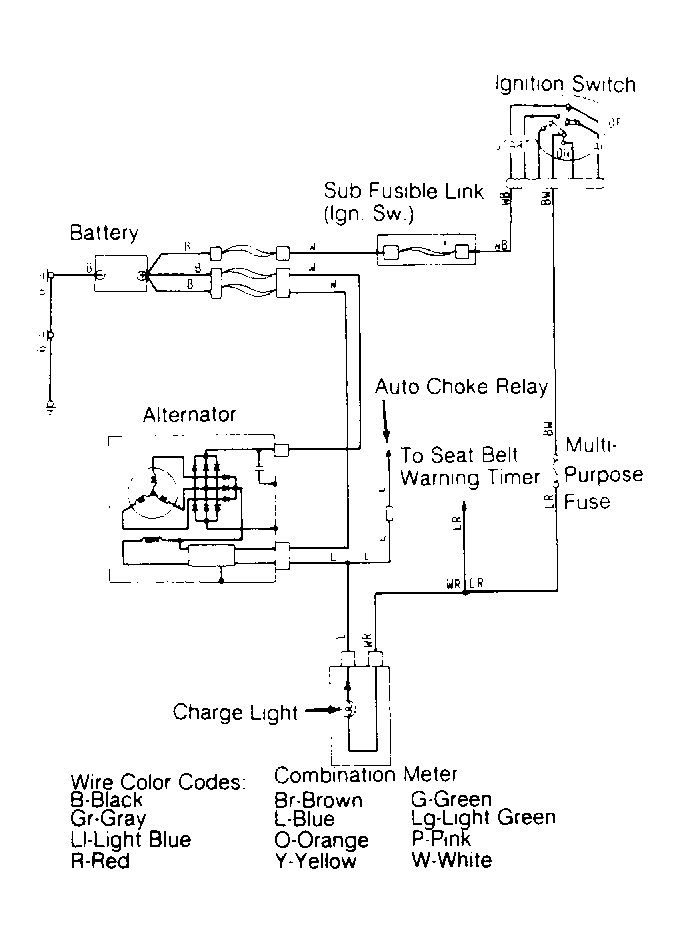

Fig 3: Galant & Sigma Charging System Wiring Schematic

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

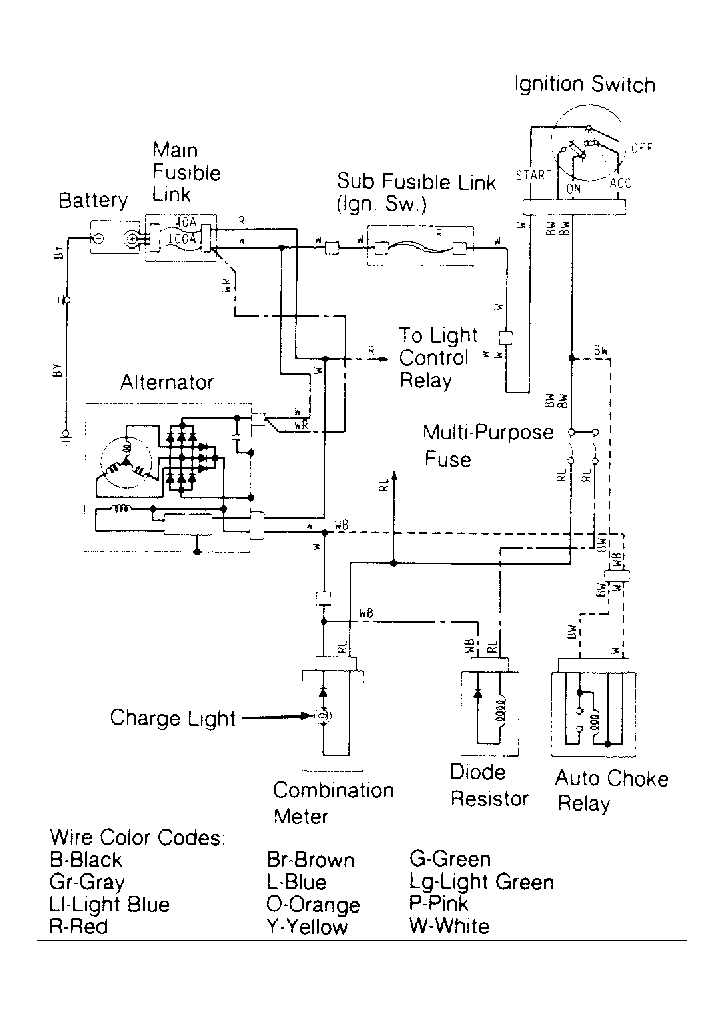

Fig 4: Montero Charging System Wiring Schematic

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

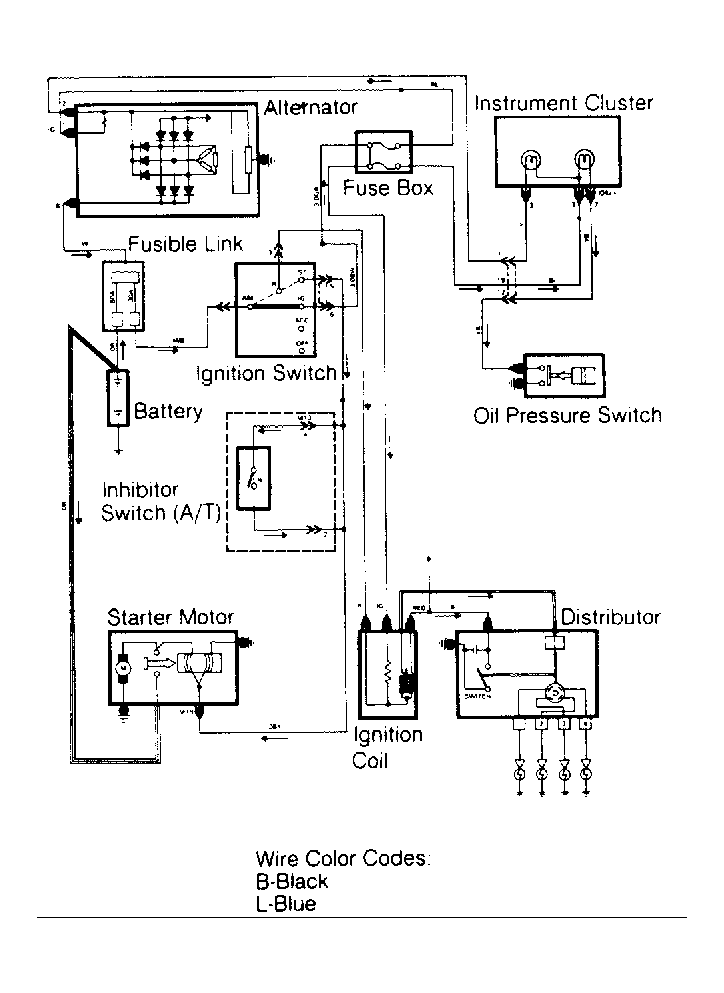

Fig 5: Pickup Charging System Wiring Schematic

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Precis Charging System Wiring Schematic

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Van/Wagon Charging System Wiring Schematic

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
