Power Window Sub Switch

For test procedures, see Fig 1 .

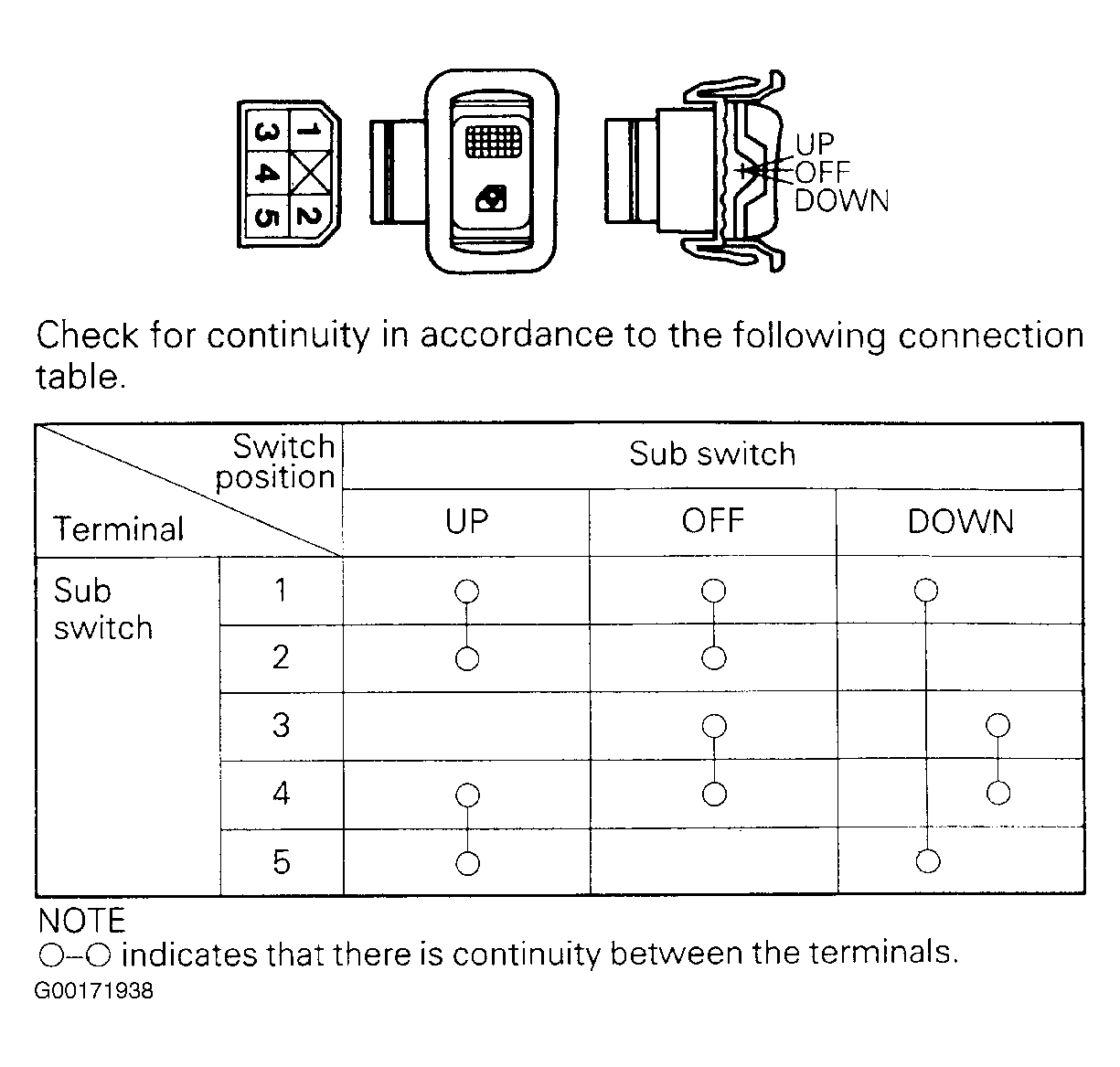

Fig 1: Power Window Sub Switch

G00171938

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
