Power Window Relay
Power Window Relay
For test procedures, see
Fig 1
.

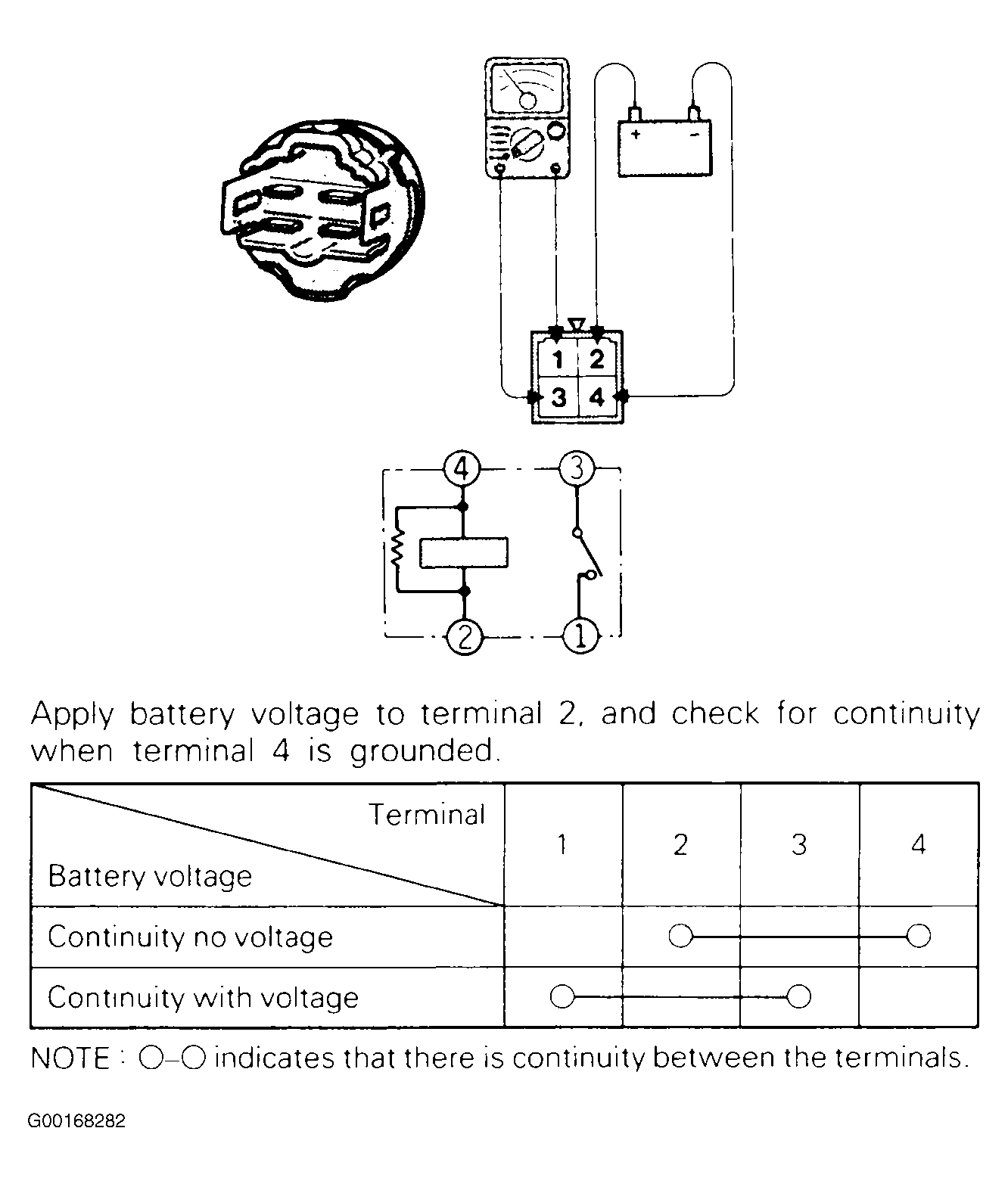

Fig 1: Testing Power Window Relay
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
