Power Window Main Switch
Power Window Main Switch
For test procedures, see
Fig 1
.

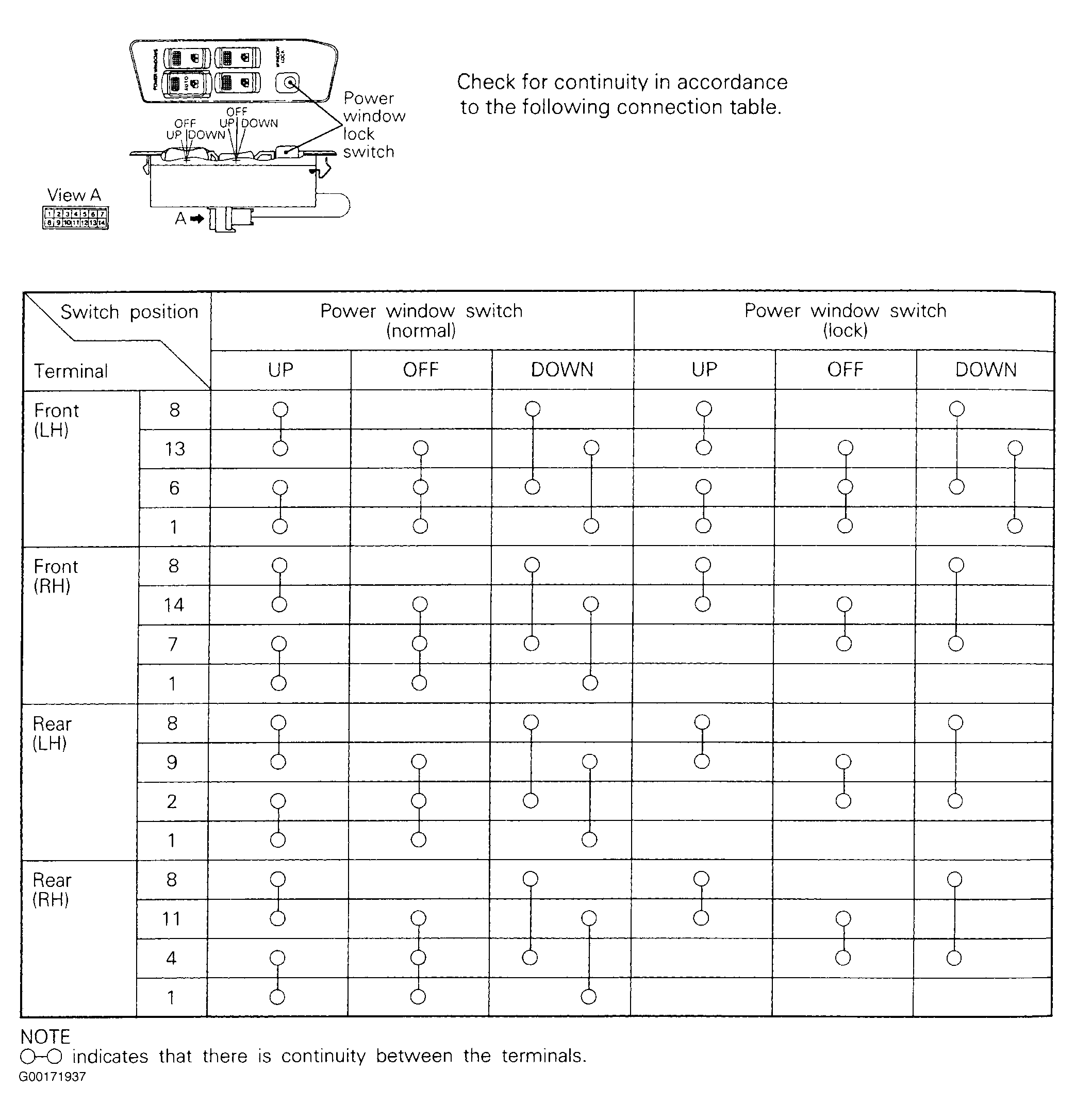

Fig 1: Testing Power Window Main Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
