Component Location

COMPONENT LOCATIONS

Component	Location
Multipurpose Fuse Block	Under lower left side of intrument panel. See Fig 1 .
Power Window Relay	In relay box under lower left side of intrument panel. See Fig 1 .
Sub Fusible Link Block	Right side of engine compartment, in front of shock tower.

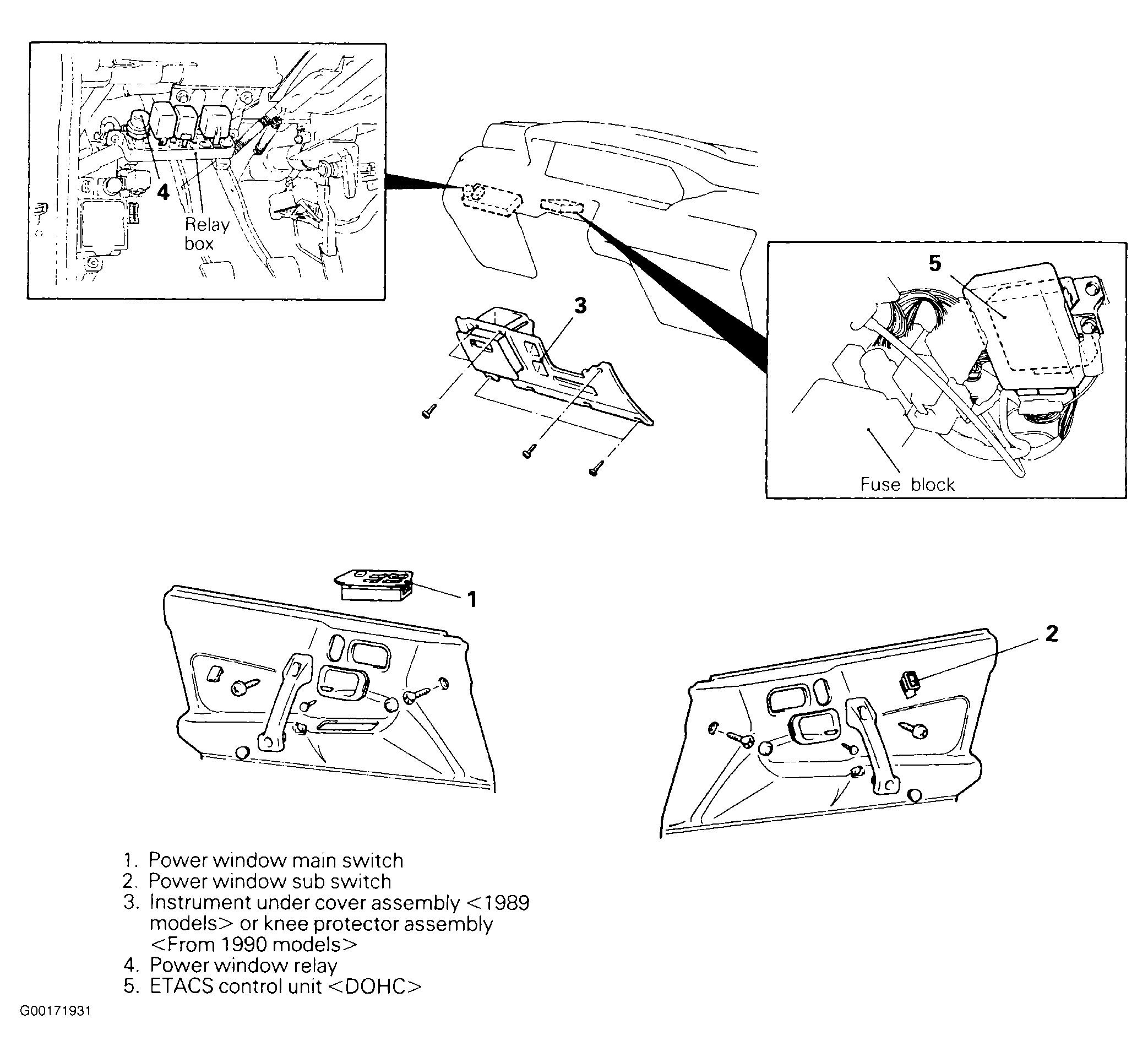

Fig 1: Locating Power Window Electrical Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
