Remote Controlled Mirror Switch

For remote controlled mirror switch tests, see Fig 1 .

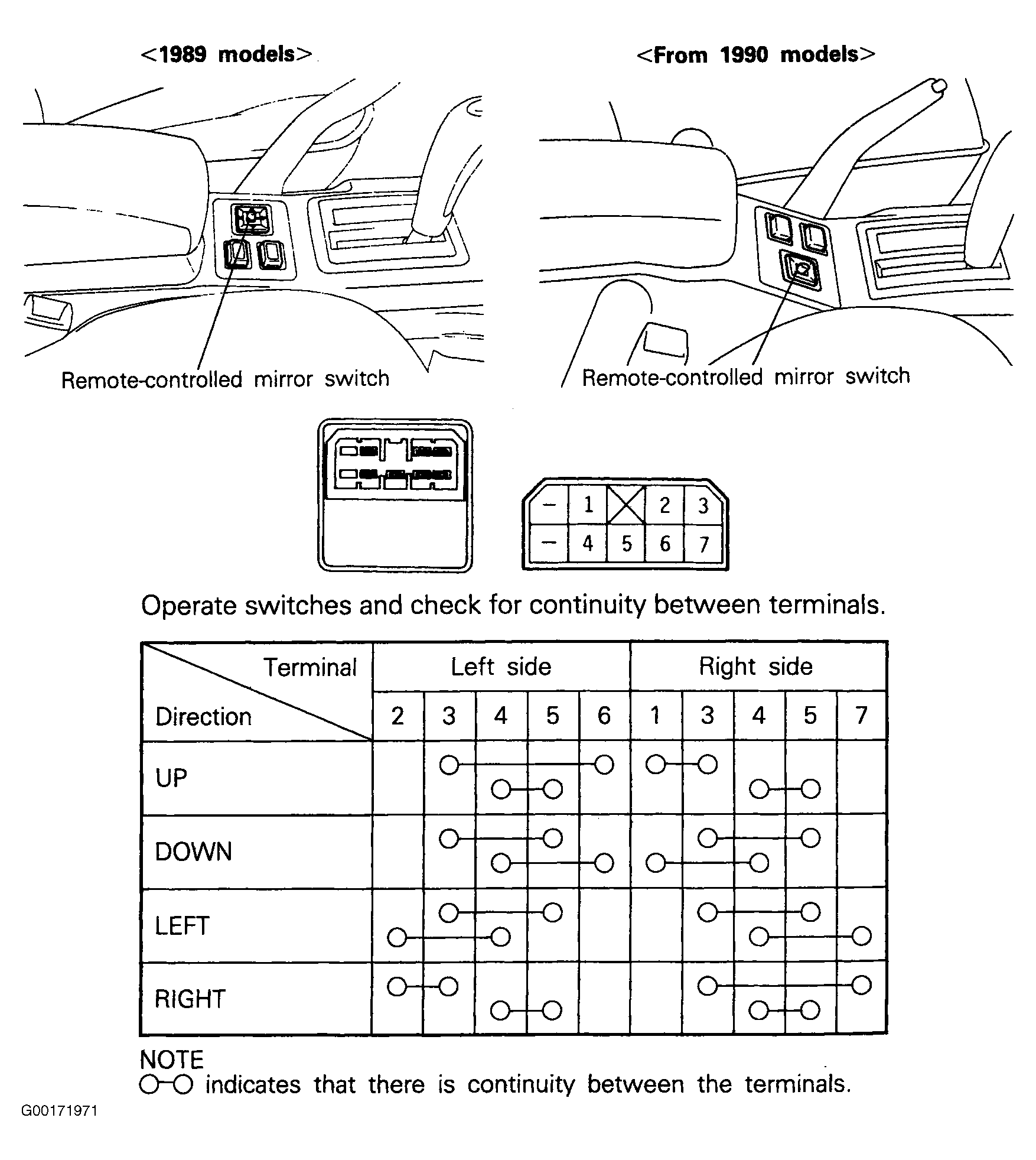

Fig 1: Testing Remote Controlled Mirror Switch

G00171971

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
