Wiring Diagrams

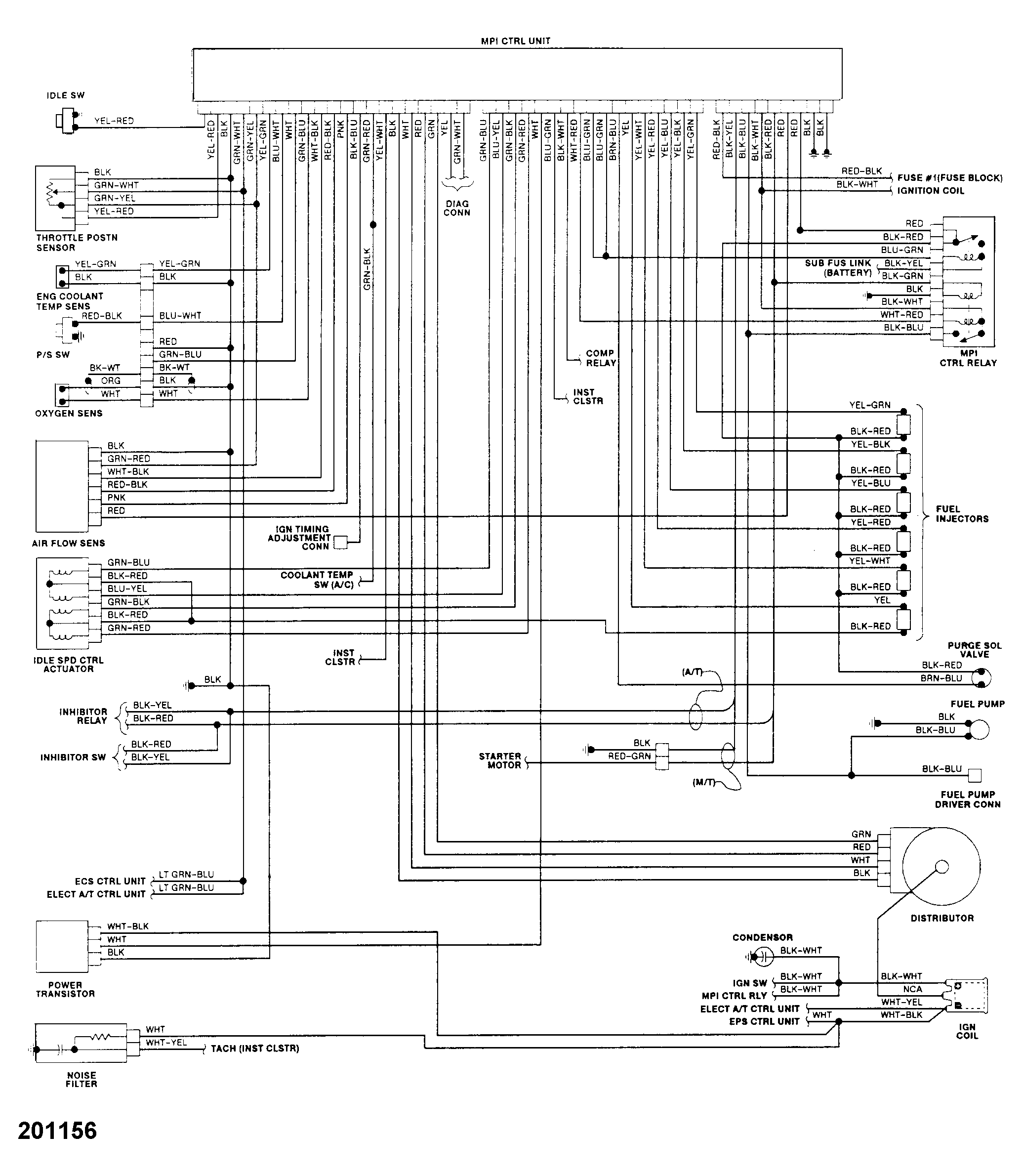

Fig 1: Wiring Diagram for Galant

G201156

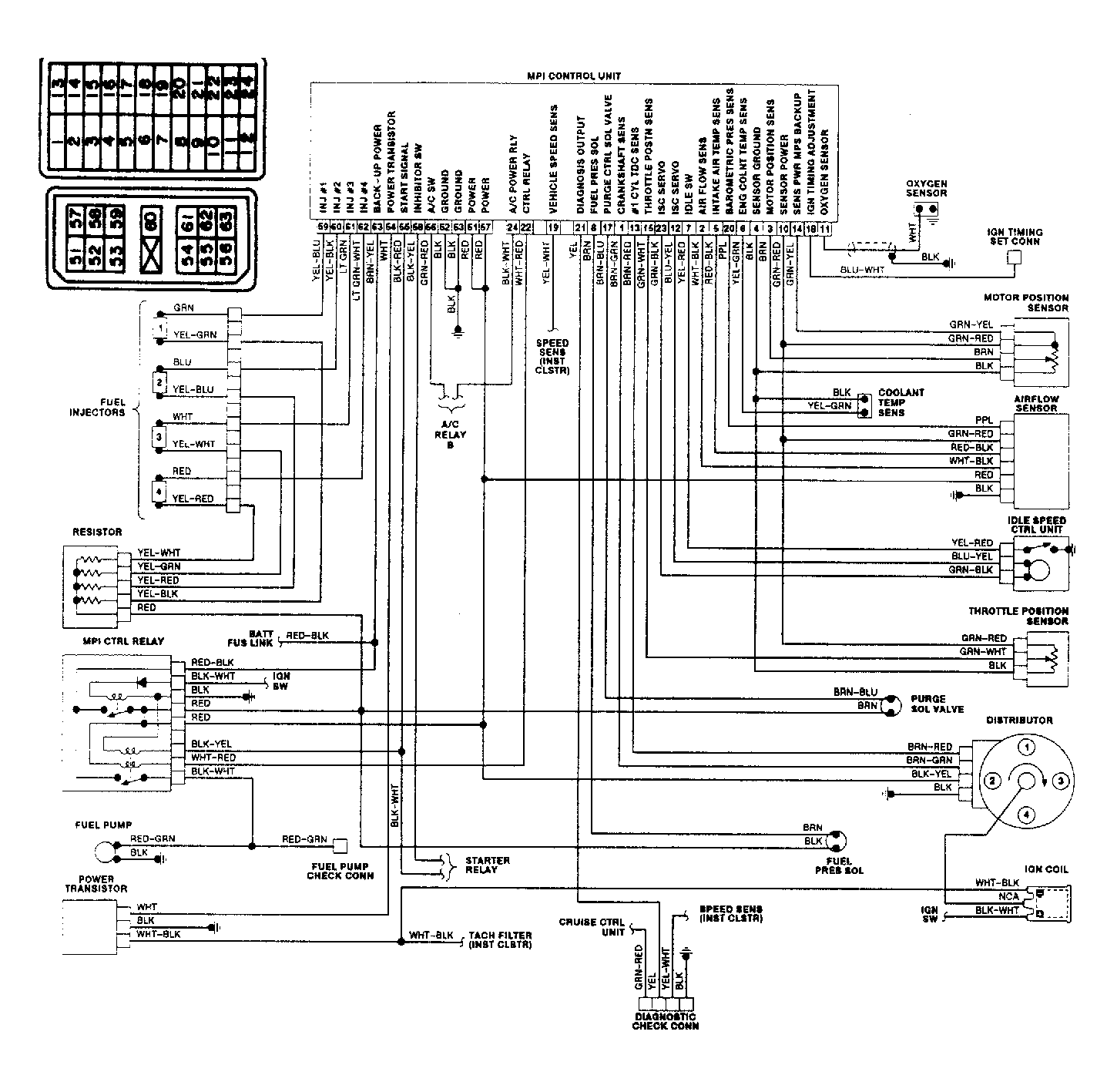

Fig 2: Wiring Diagram for Van/Wagon

G94465
