Wiring Diagrams

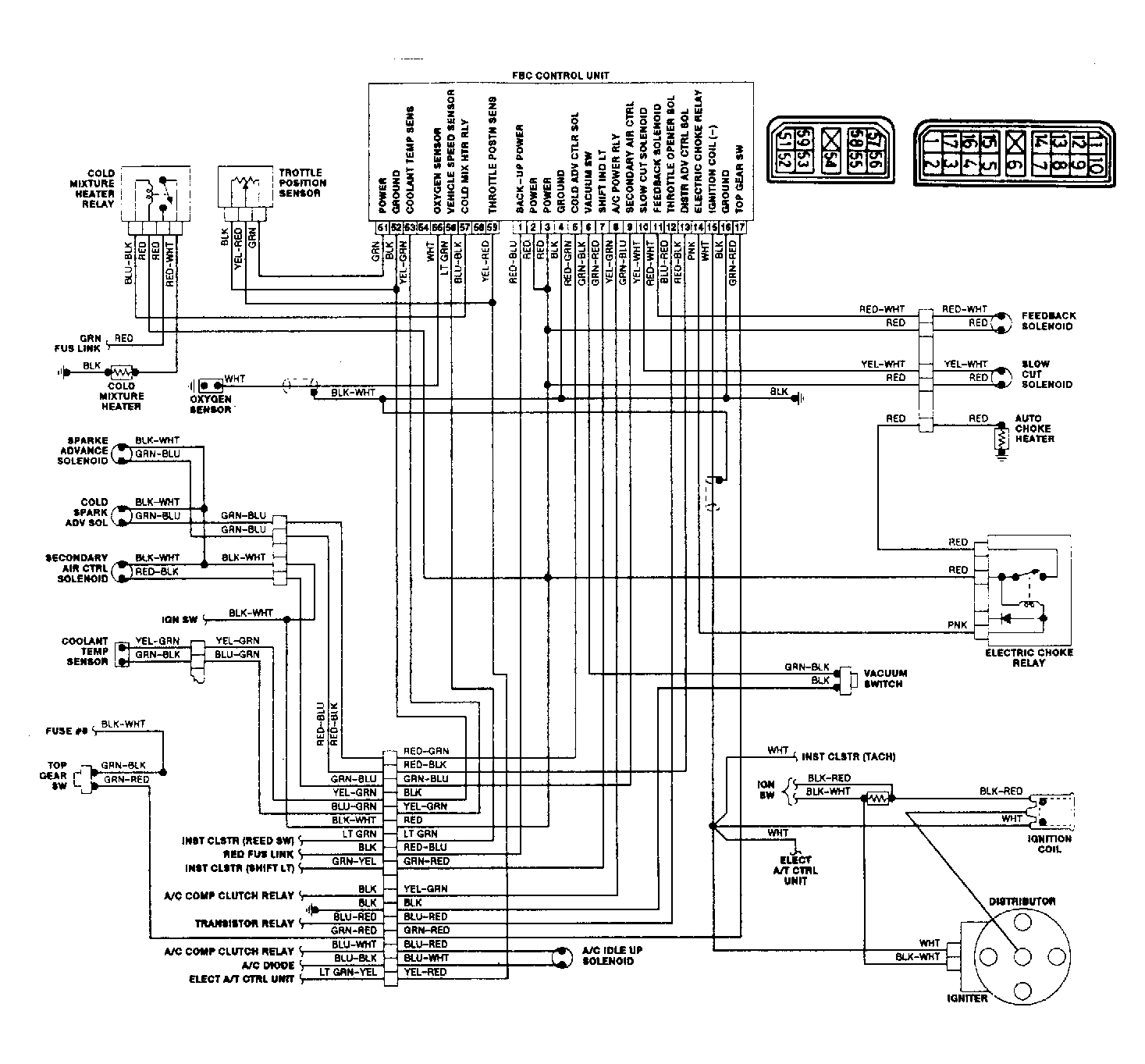

Fig 1: Wiring Diagram (Mirage)

G94420

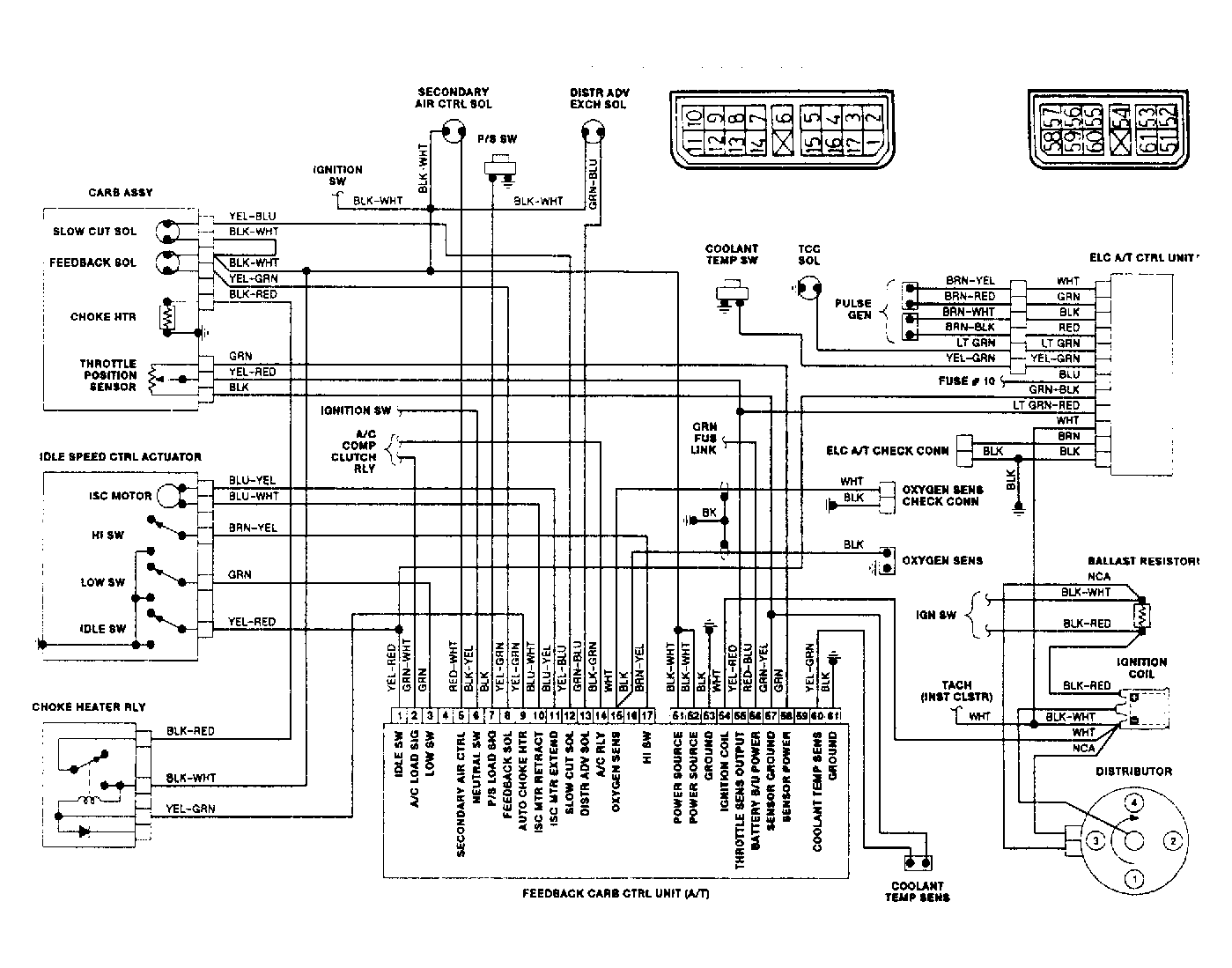

Fig 2: Wiring Diagram (Cordia/Tredia Auto. Trans.)

G94421

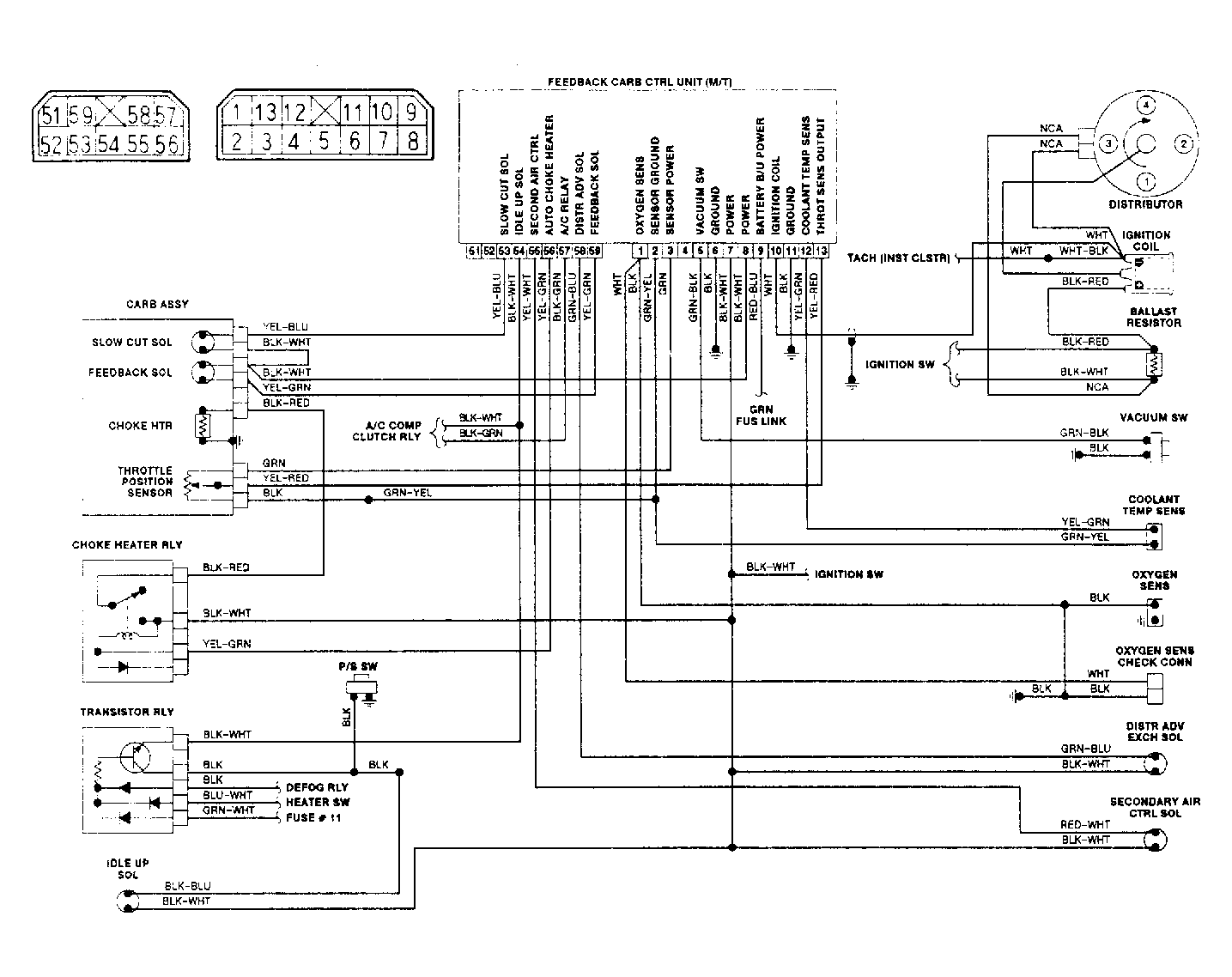

Fig 3: Wiring Diagram (Cordia/Tredia Man. Trans)

G94422

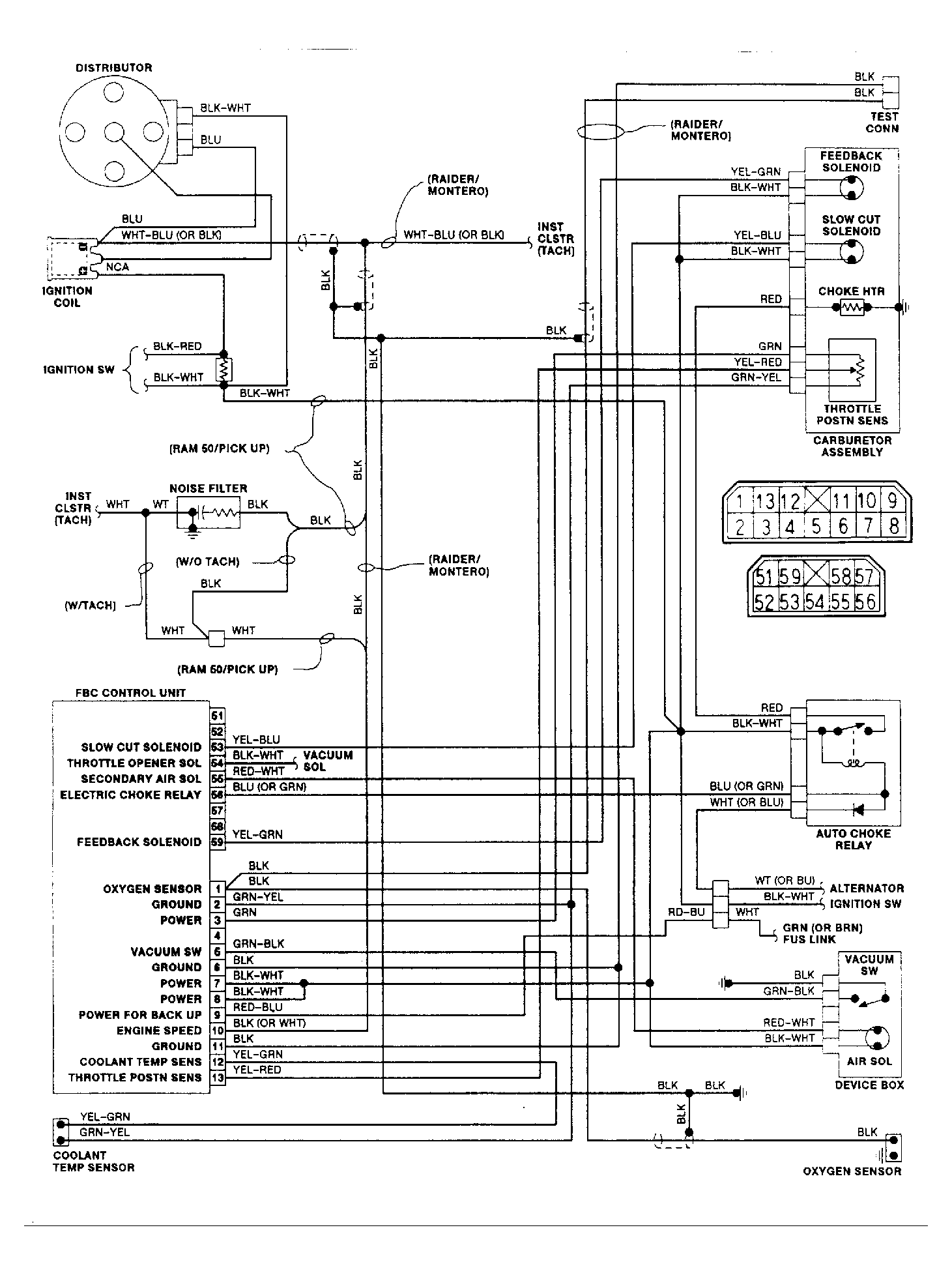

Fig 4: Wiring Diagram (Montero/Pickup)

G94423
