Check Charts

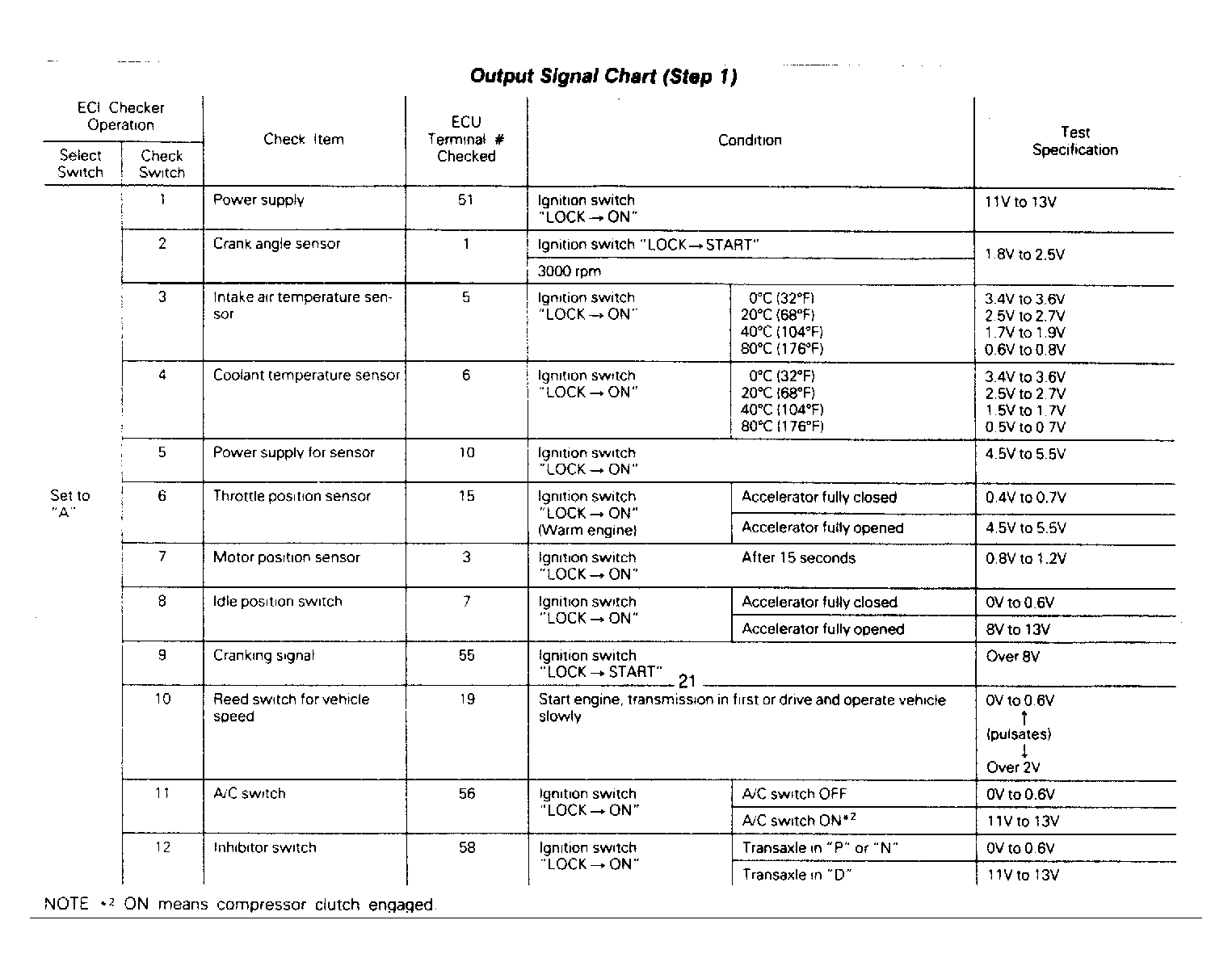

Fig 1: Output Signal Chart (Van/Wagon, Step 1) (1 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

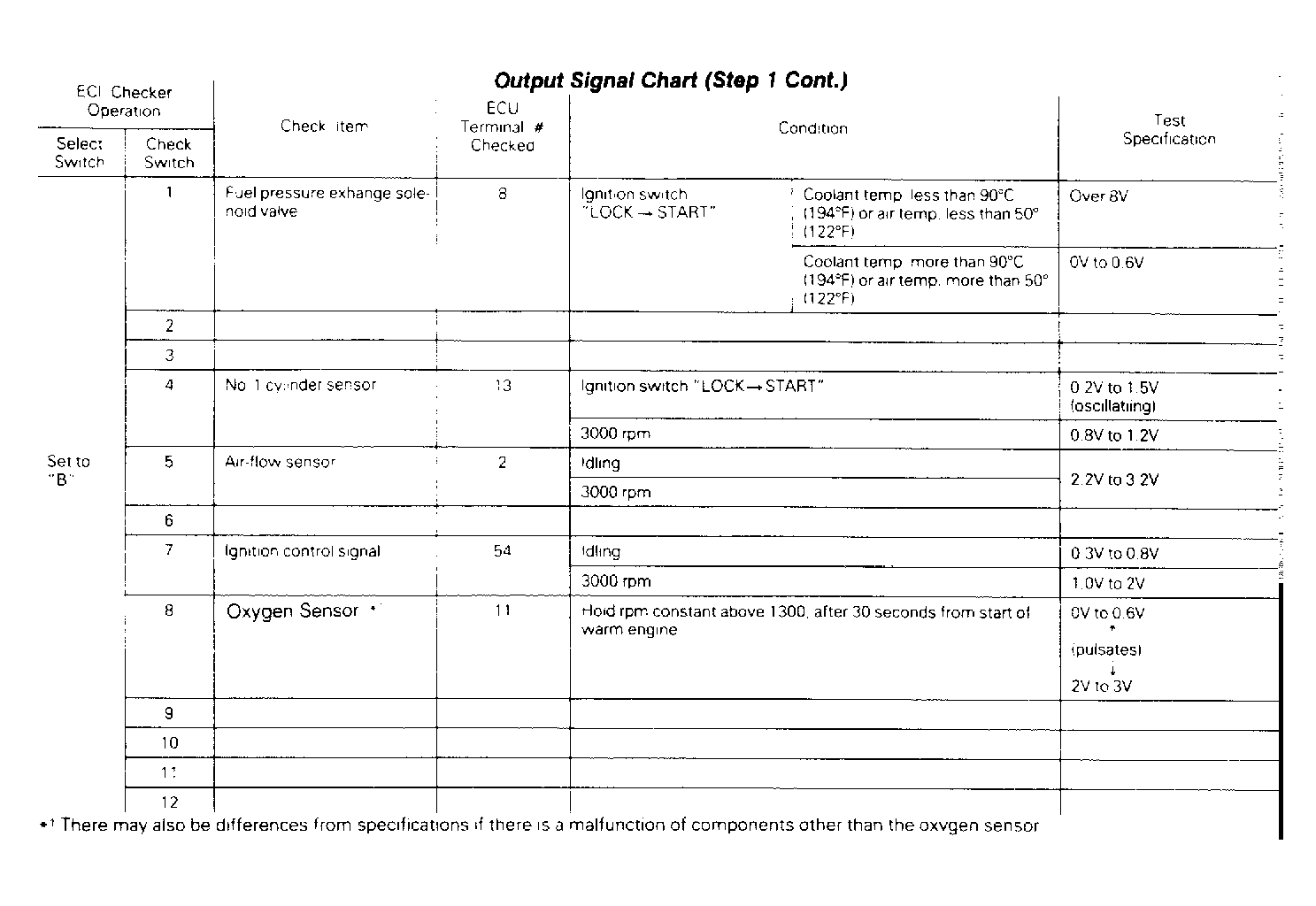

Fig 2: Output Signal Chart (Van/Wagon, Step 1) (2 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

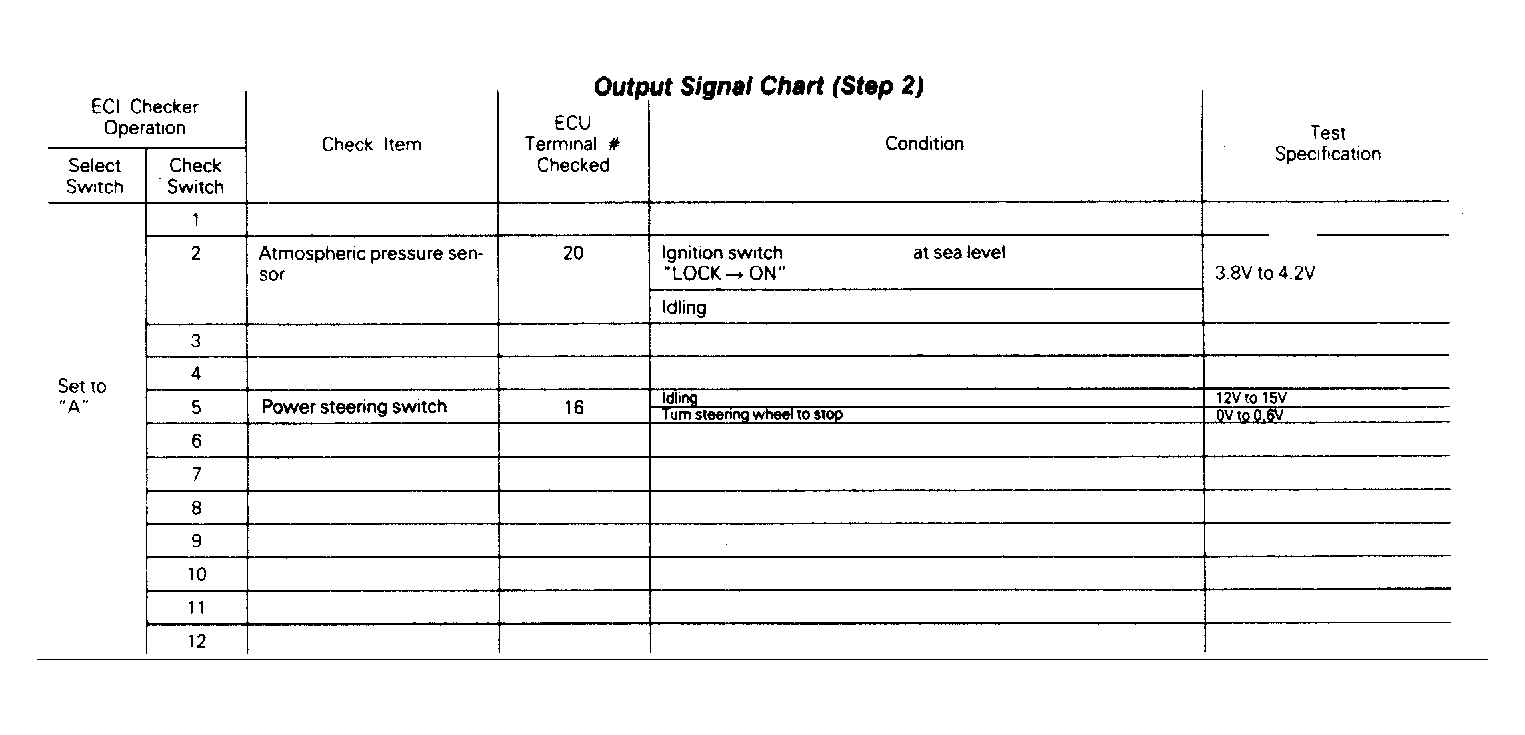

Fig 3: Output Signal Chart (Van/Wagon, Step 2) (1 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

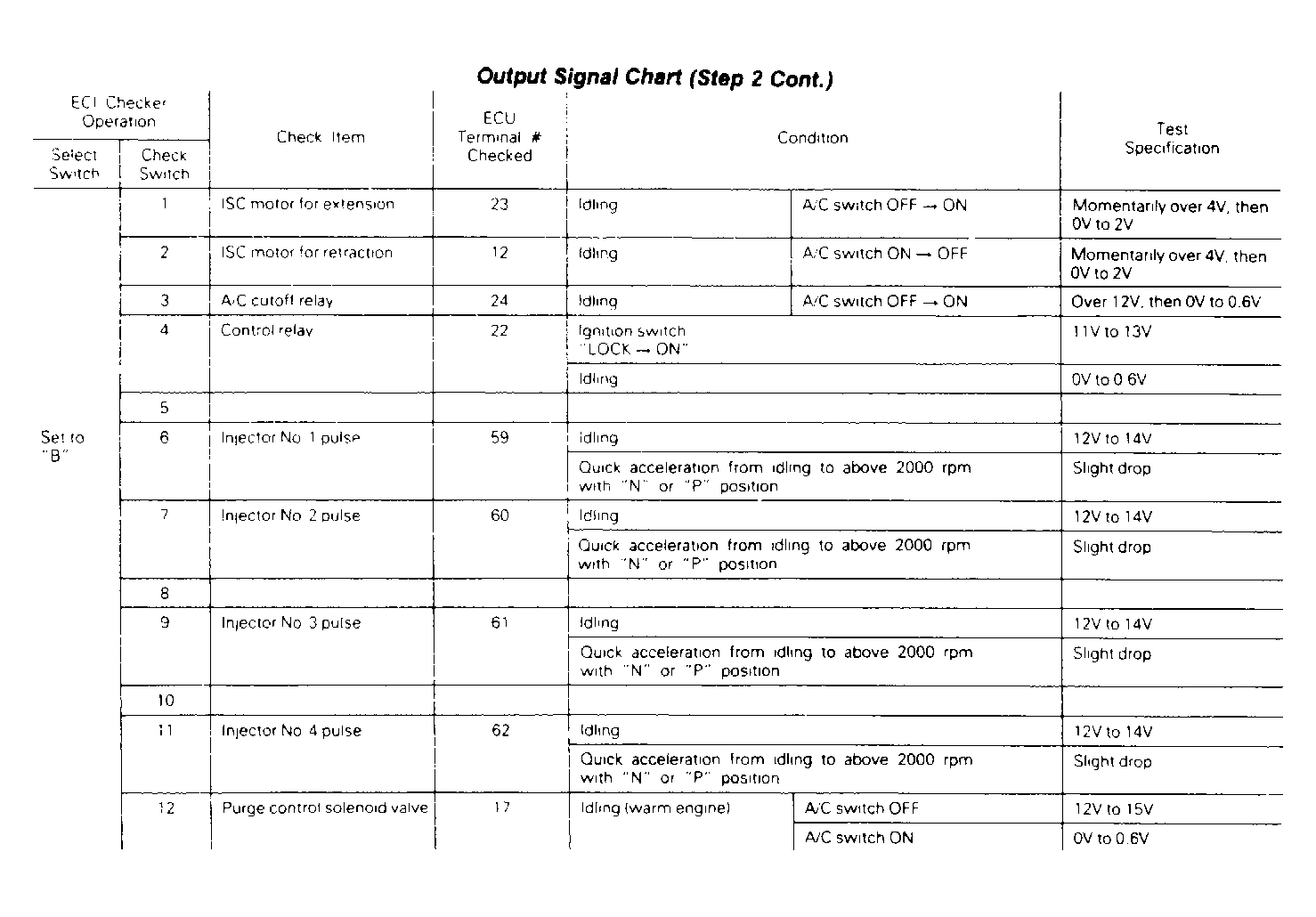

Fig 4: Output Signal Chart (Van/Wagon, Step 2) (2 of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

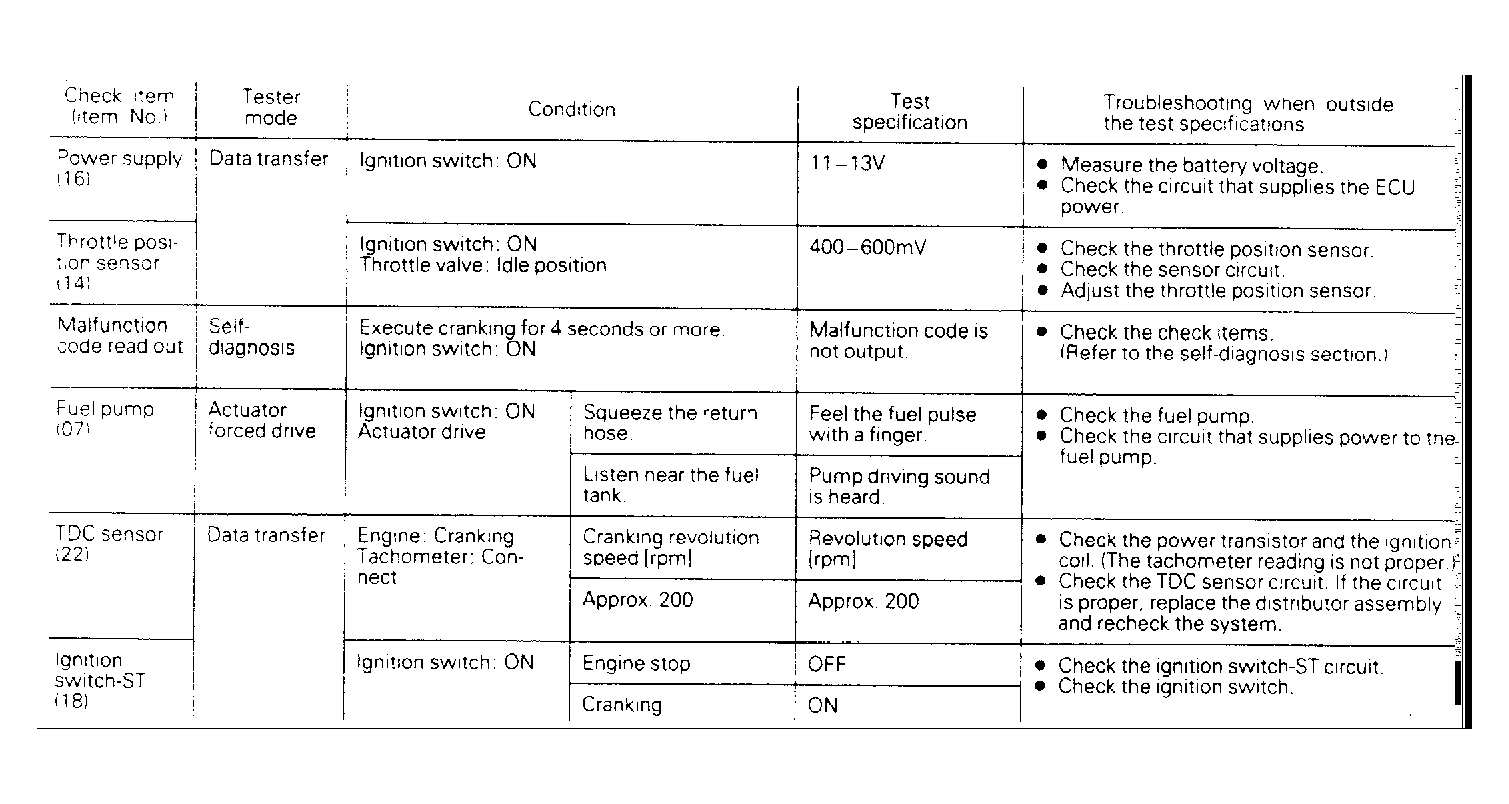

Fig 5: Multi-Use Tester Check Chart (Galant Cranking Check)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

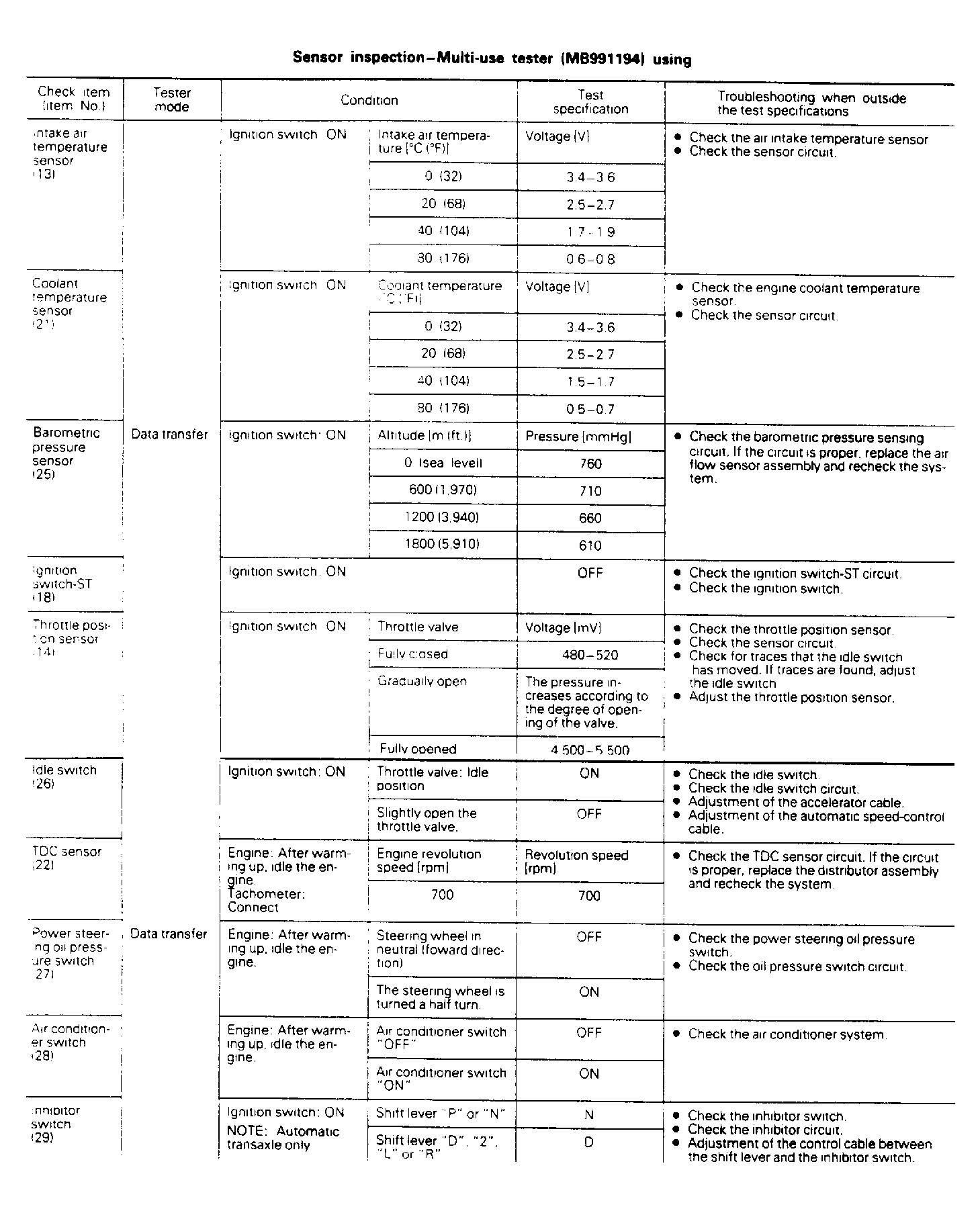

Fig 6: Multi-Use Tester Check Chart (Galant Sensor Inspection)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

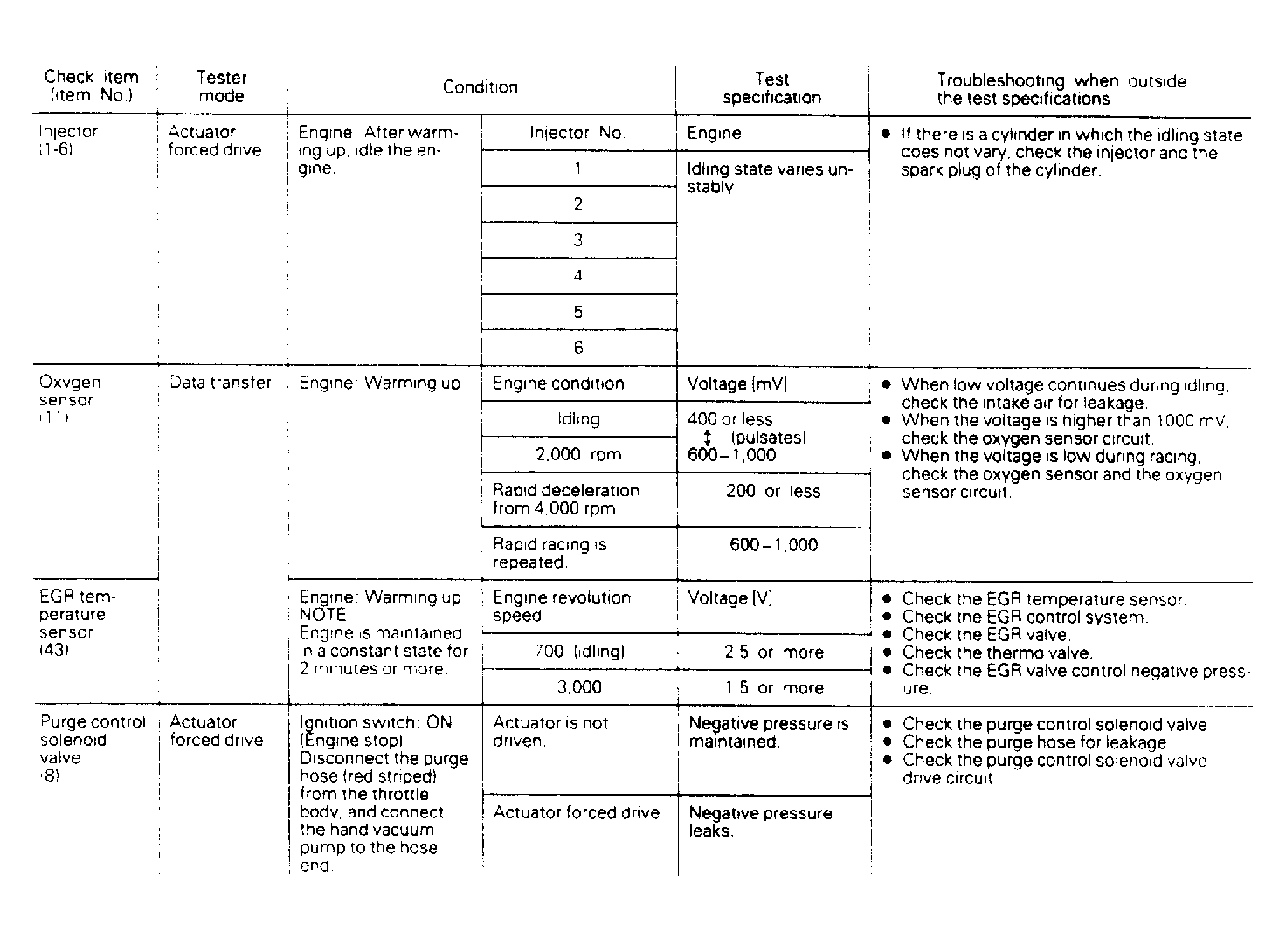

Fig 7: Multi-Use Tester Check Chart (Galant Engine Control System, Step 1)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

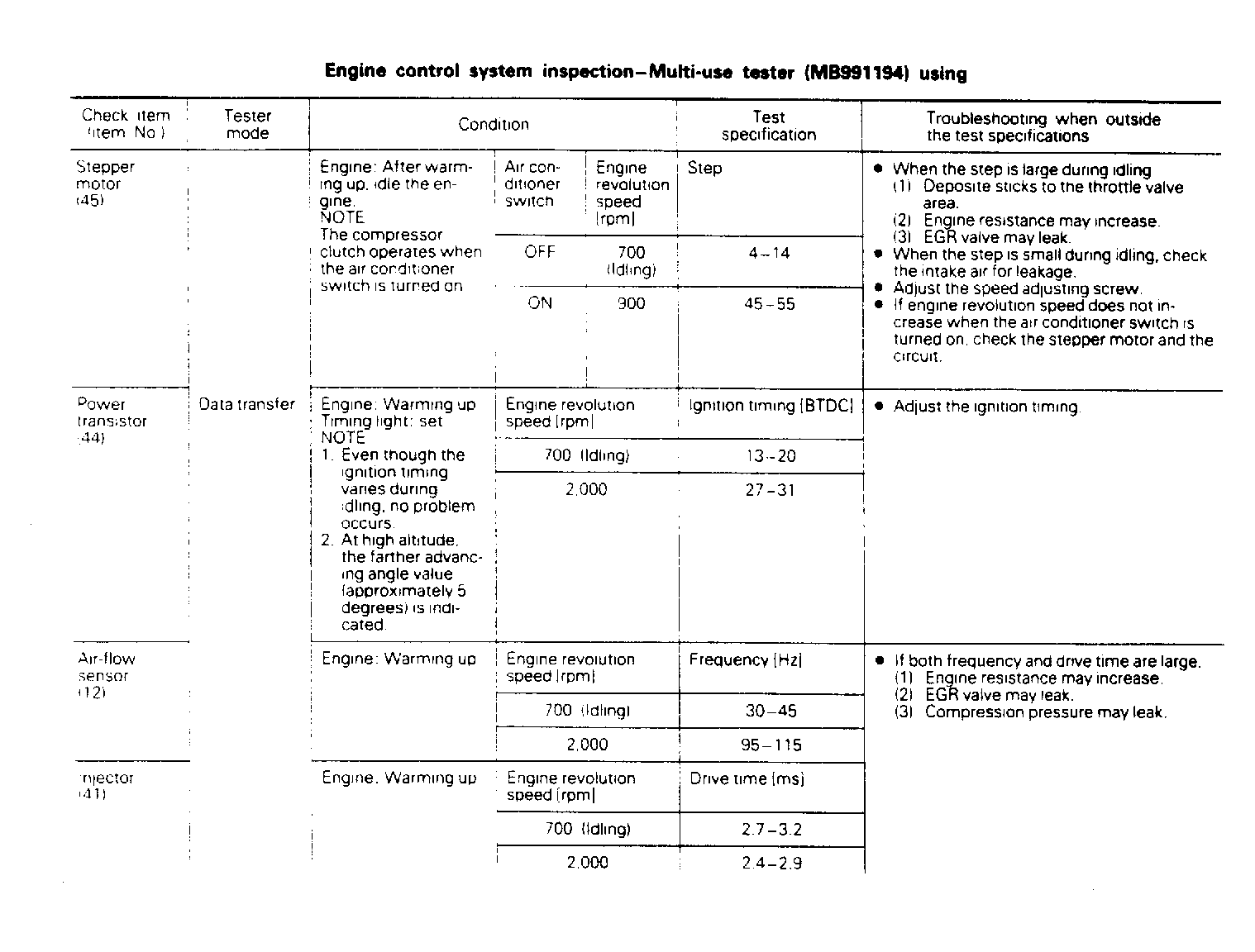

Fig 8: Multi-Use Tester Check Chart (Galant Engine Control System, Step 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
