Control Units

CONTROL UNITS LOCATION

Component Location

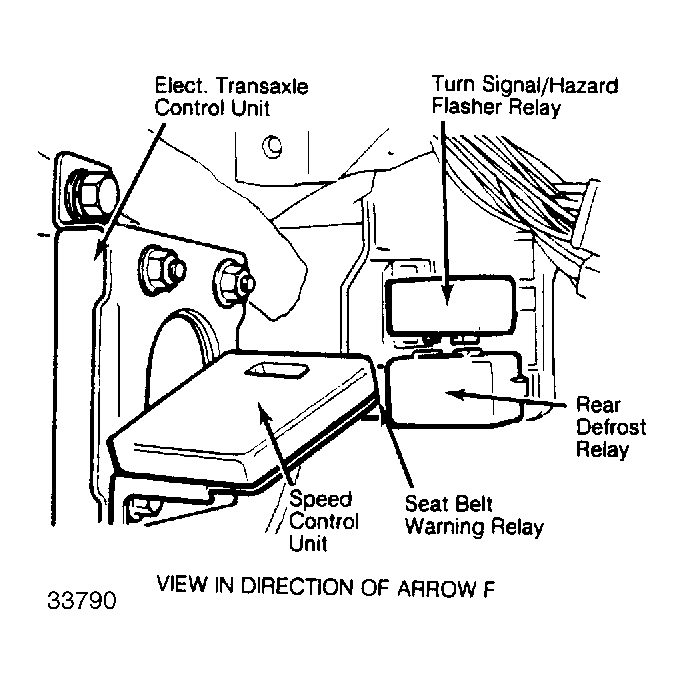

Electronic Transaxle Control Unit Under left side of dash. See Figure .
Elect. Controlled Injection (ECI) At right side kick panel.
Feedback Carburetor Control Unit At right side kick panel.
Manual Transaxle Control Unit Below left side of dash. See Figure .
Speed Control Unit Under left side of dash. See Figure & Figure .
