Removal And Installation

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

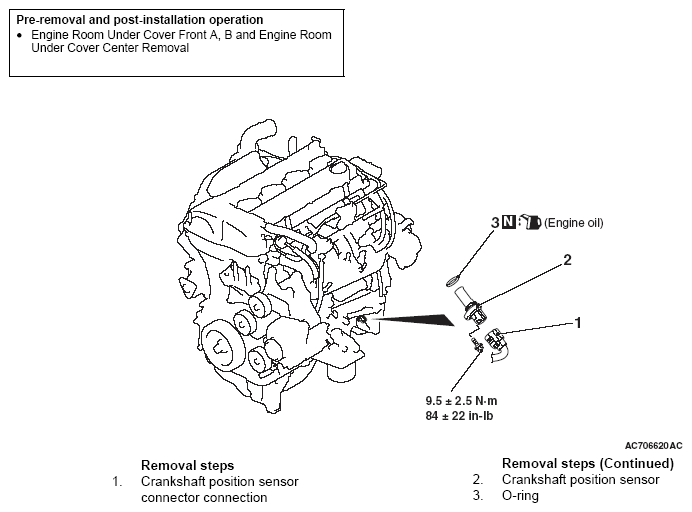

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
G05393760Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
