Removal And Installation: Notes

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

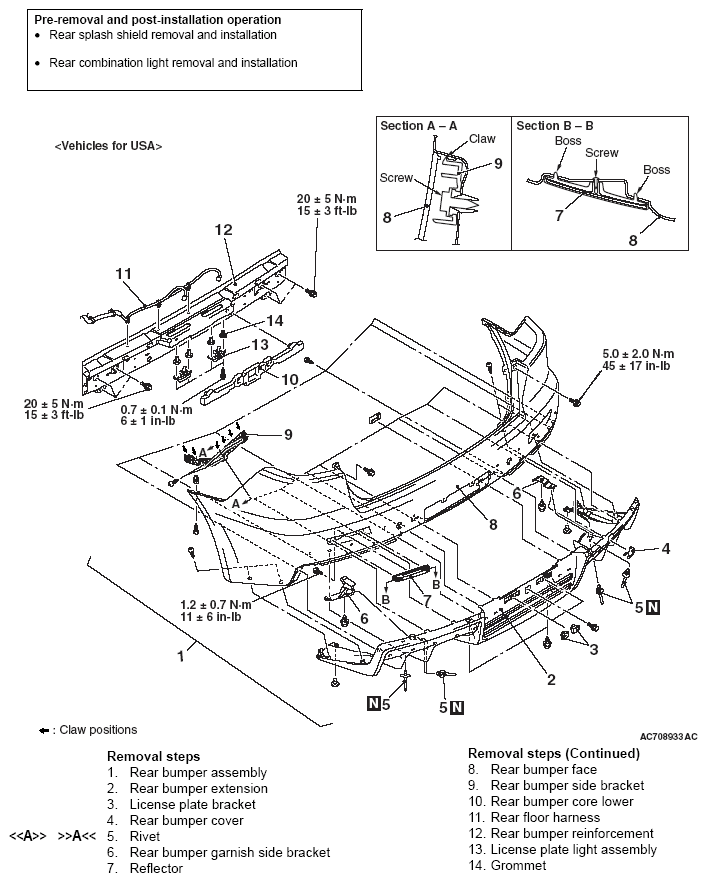

Fig 1: Rear Bumper Assembly Replacement Components With Torque Specifications (1 Of 2)
G05395951Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

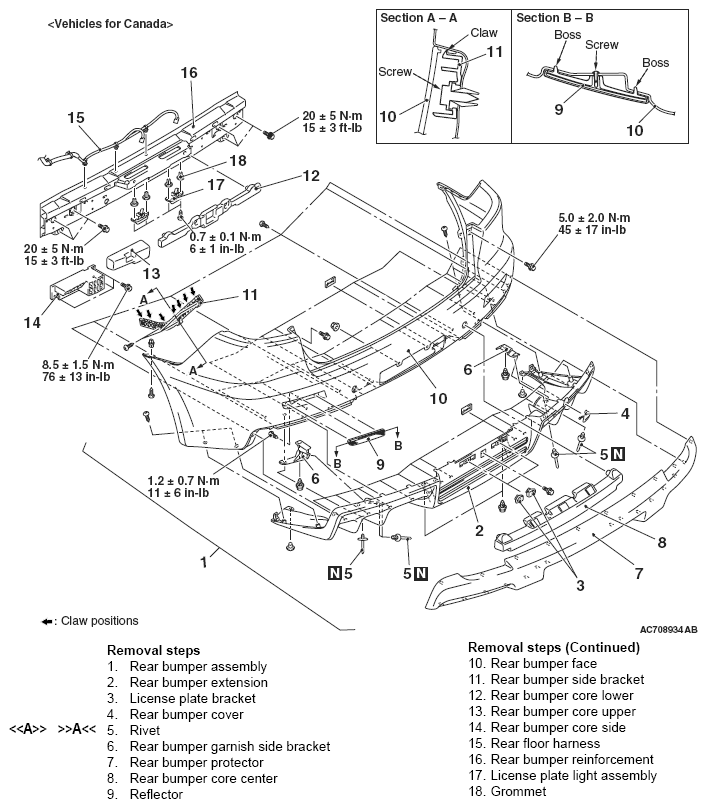

Fig 2: Rear Bumper Assembly Replacement Components With Torque Specifications (2 Of 2)
G05395952Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
