Trouble Shooting

NOTE: Refer to trouble shooting flow charts for trouble shooting diagnosis. See Fig 1 through Fig 4 .

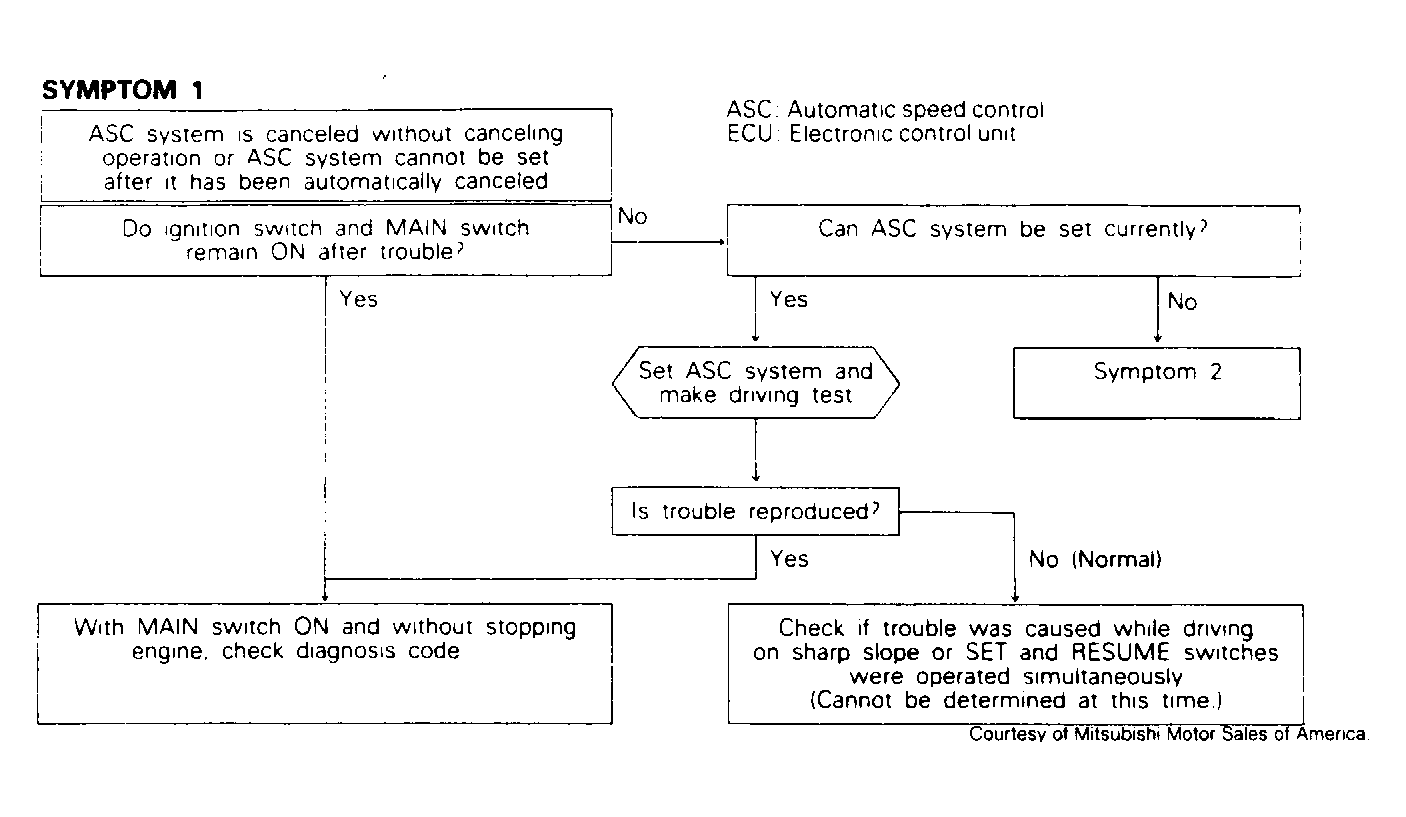

Fig 1: Trouble Shooting Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

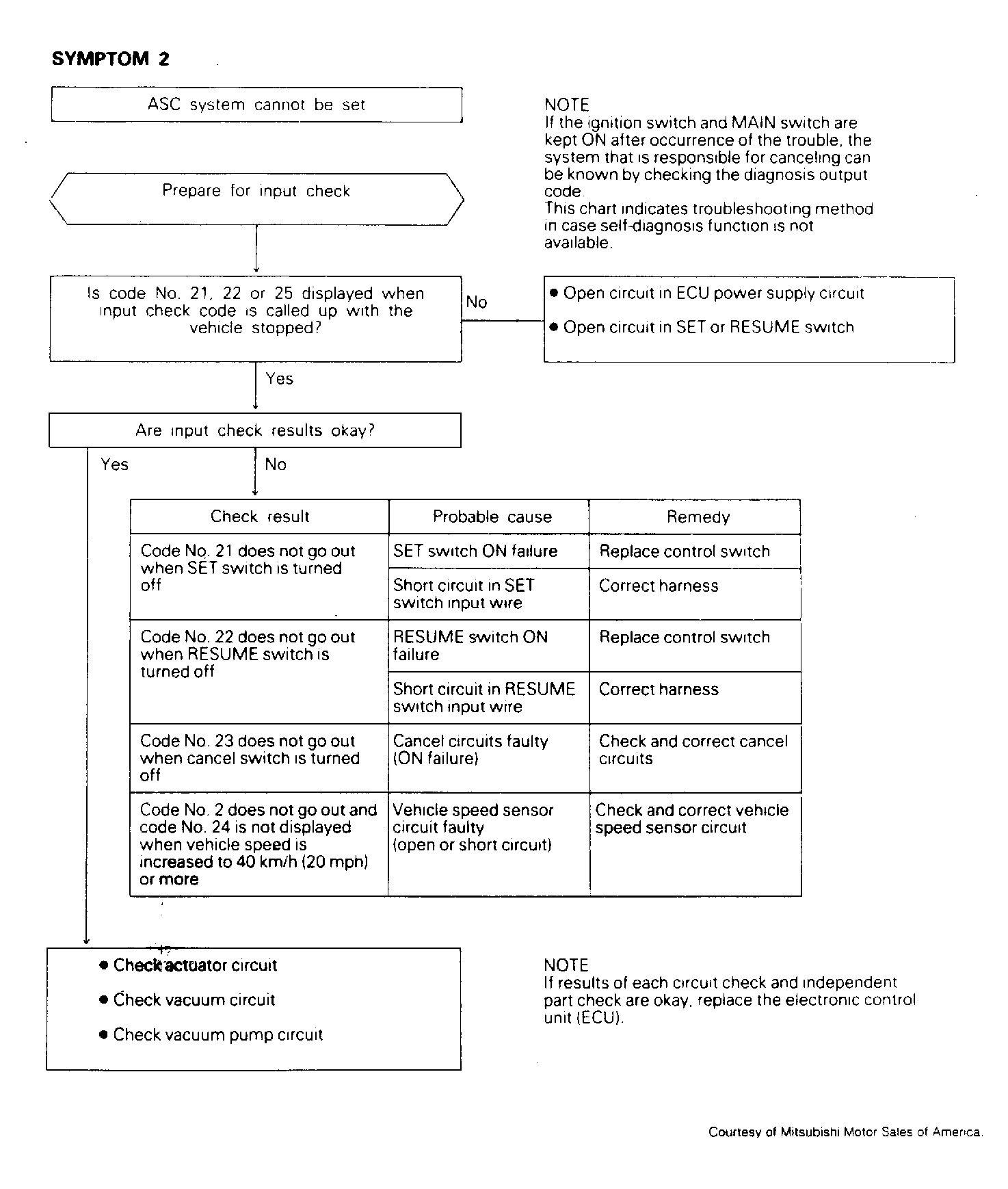

Fig 2: Trouble Shooting Chart (Cont.)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

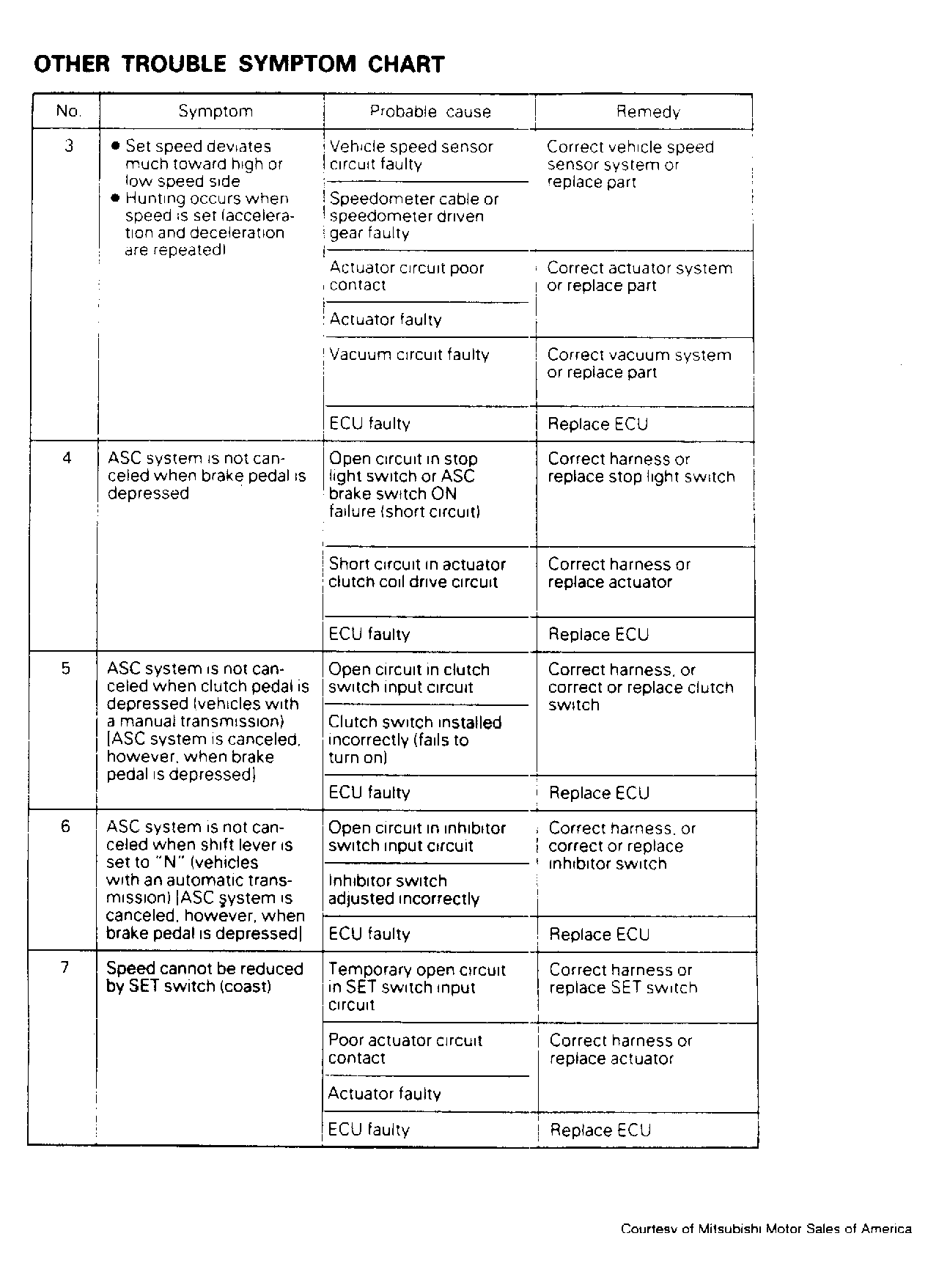

Fig 3: Trouble Shooting Chart (Cont.)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

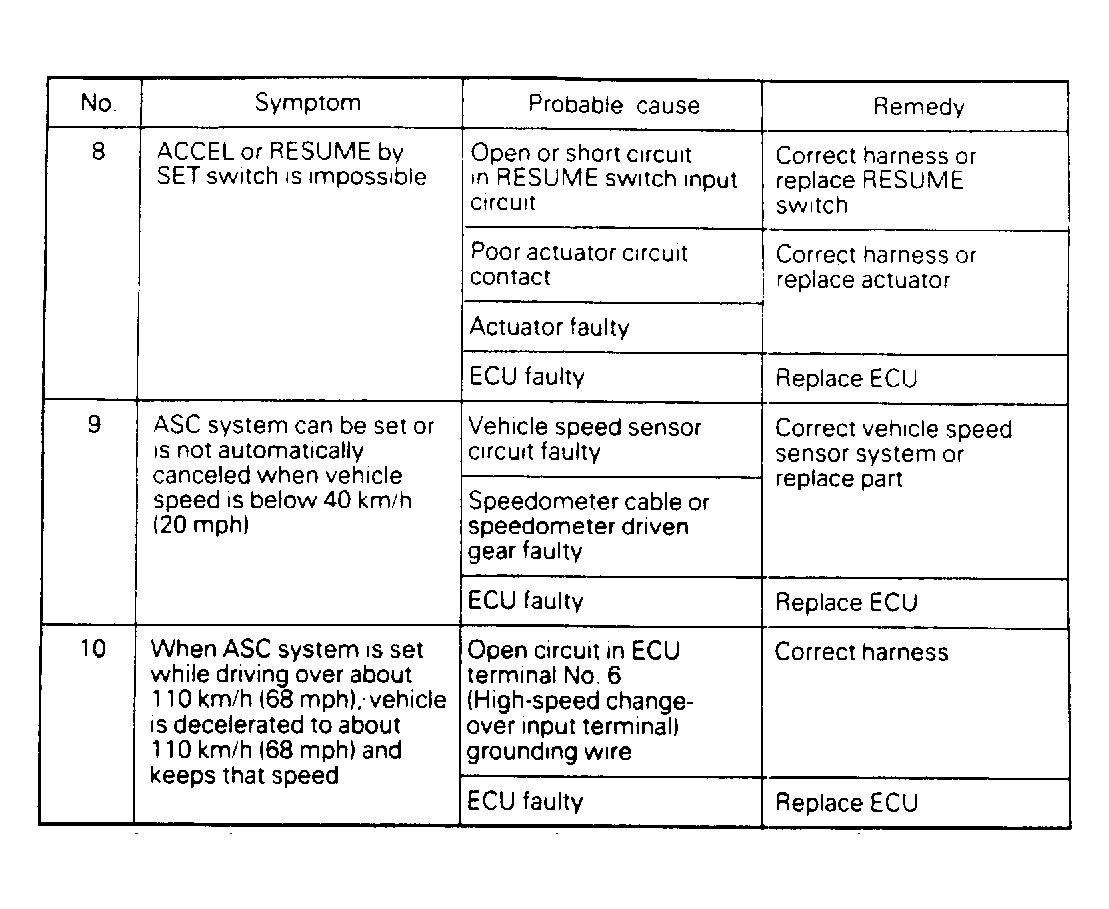

Fig 4: Trouble Shooting Chart (Cont.)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

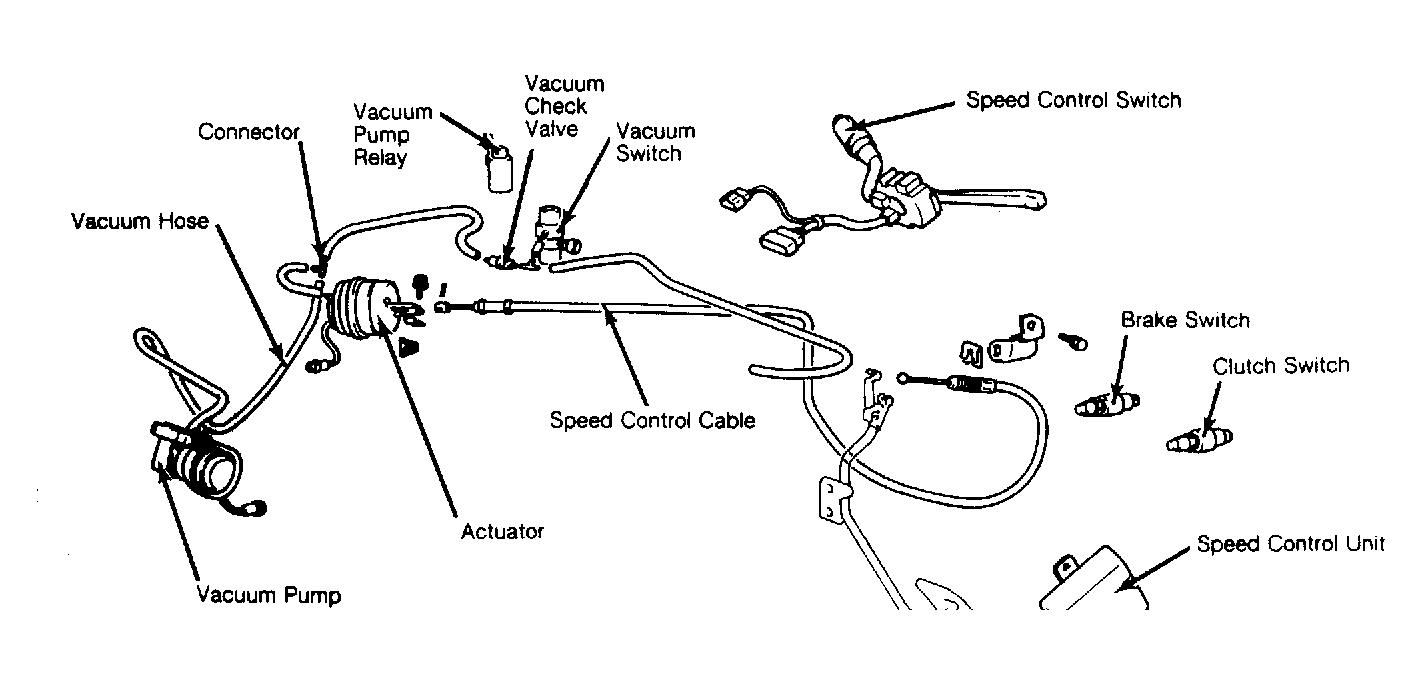

Fig 5: Starion Cruise Control Component Identification

Courtesy of CHRYSLER MOTORS.
