Wiring Diagrams

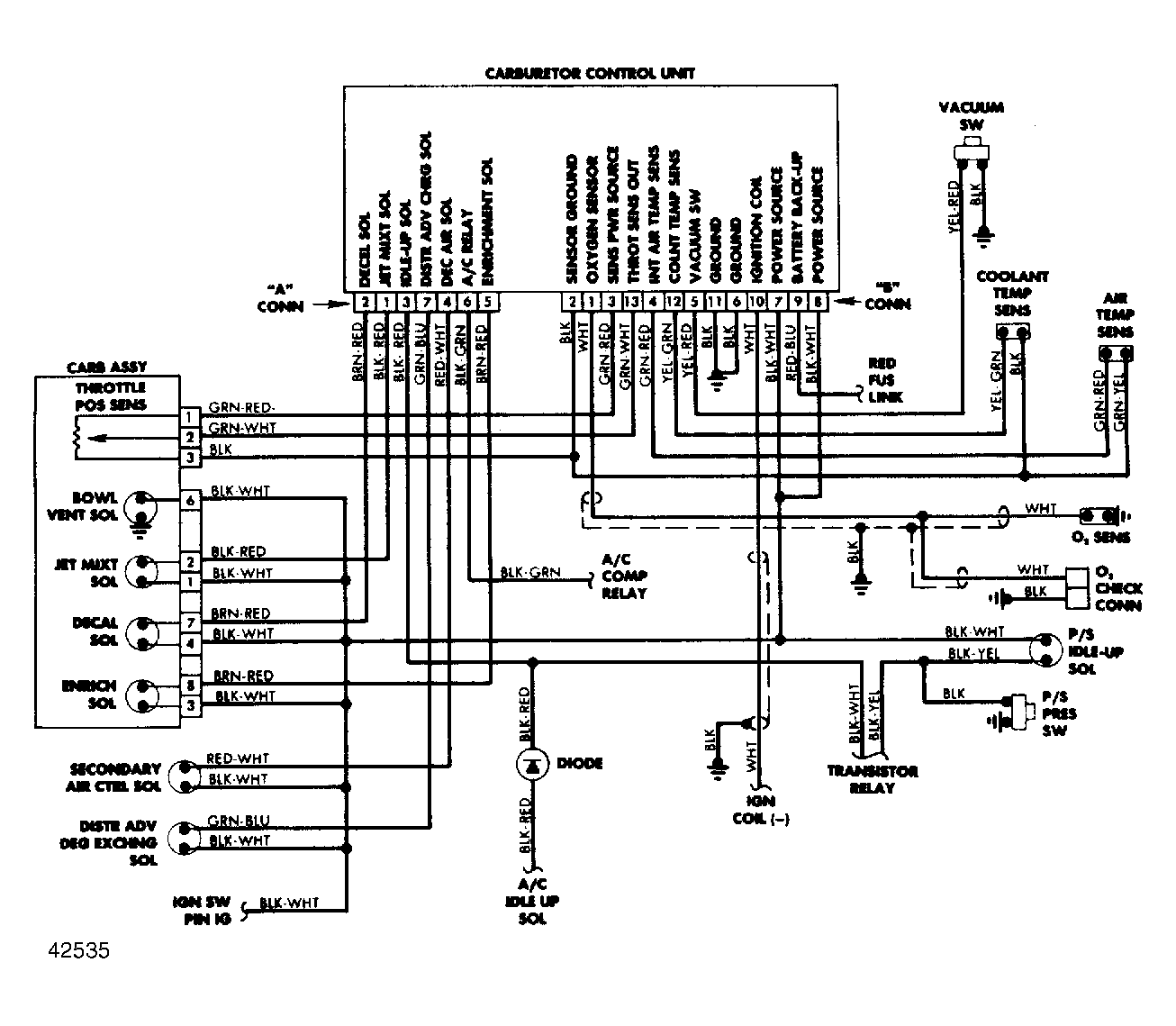

Fig 1: FBC System Wiring Diagram For Chrysler Motors Colt Vista, Mitsubishi Cordia and Treadia Models with manual transmission only.
G42535

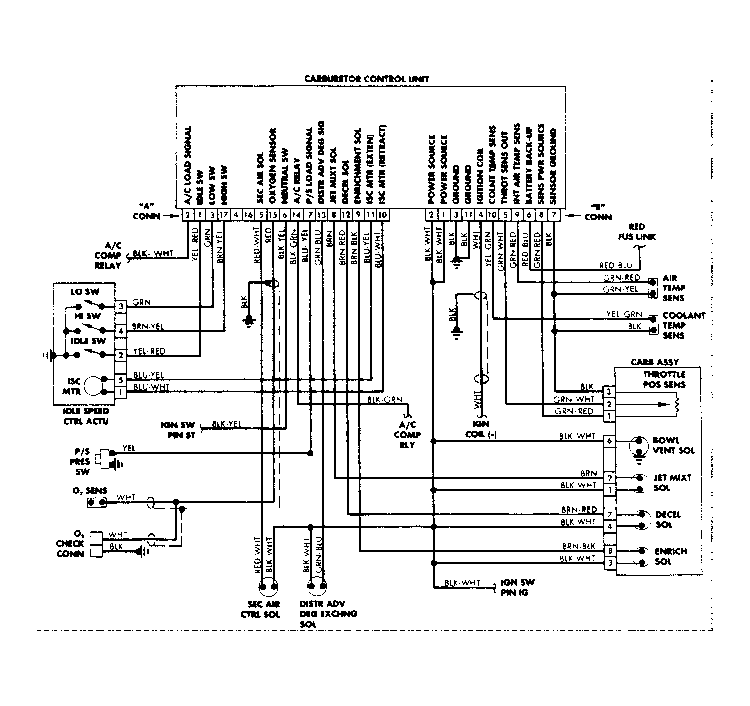

Fig 2: FBC System Wiring Diagram For Chrysler Motors Colt Vista, Mitsubishi Cordia and Treadia Models with automatic transmission only.
G48098
