Anti-Lock Brake System: Wiring Diagram

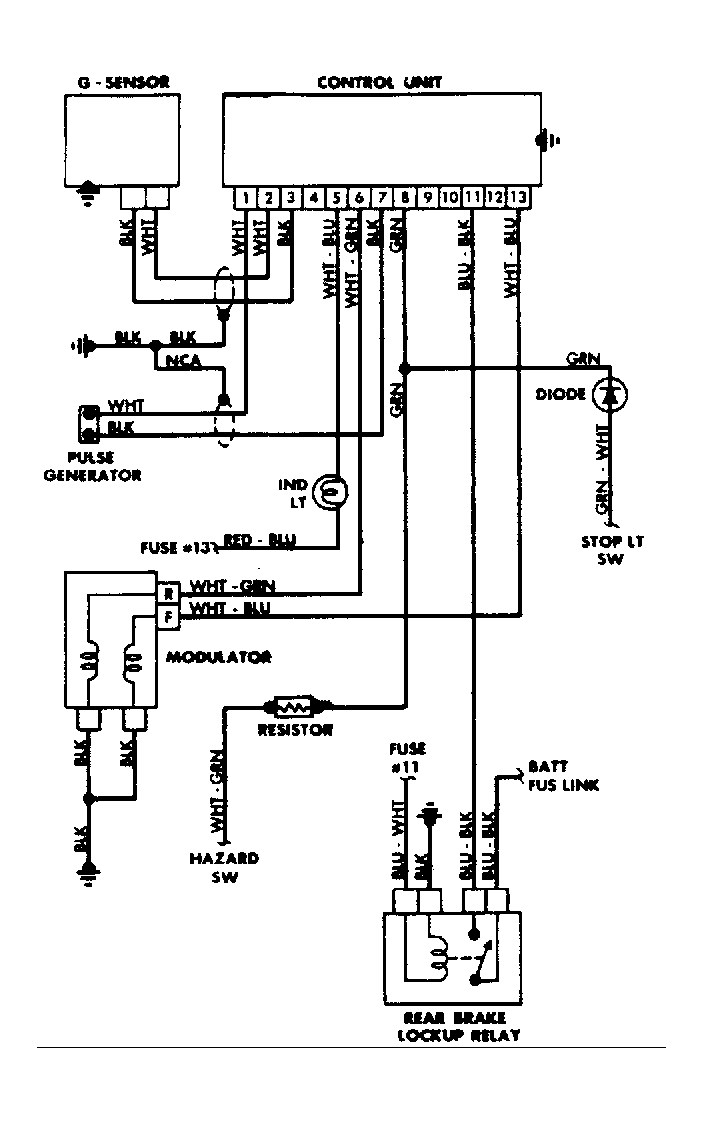

Fig 1: Chrysler Motors Conquest & Mitsubishi Starion ABS Wiring Diagram

G52064
