Control Units

CONTROL UNITS LOCATION

Component Location
Carburetor Control Unit Under right side of dash.
Electronic Lock-Up Converter Control (ELC) Under left side of engine.

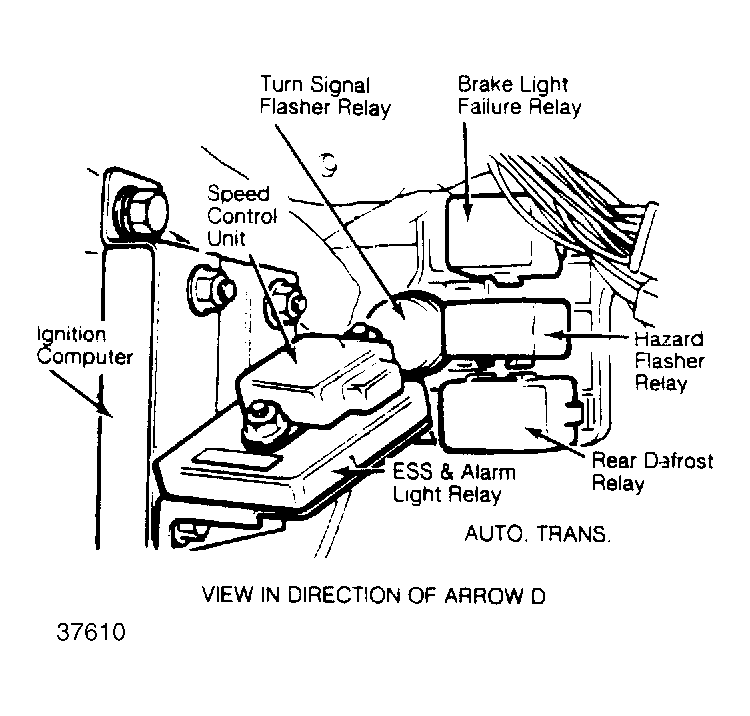

Ignition Computer Below left side of dash. See Figure .

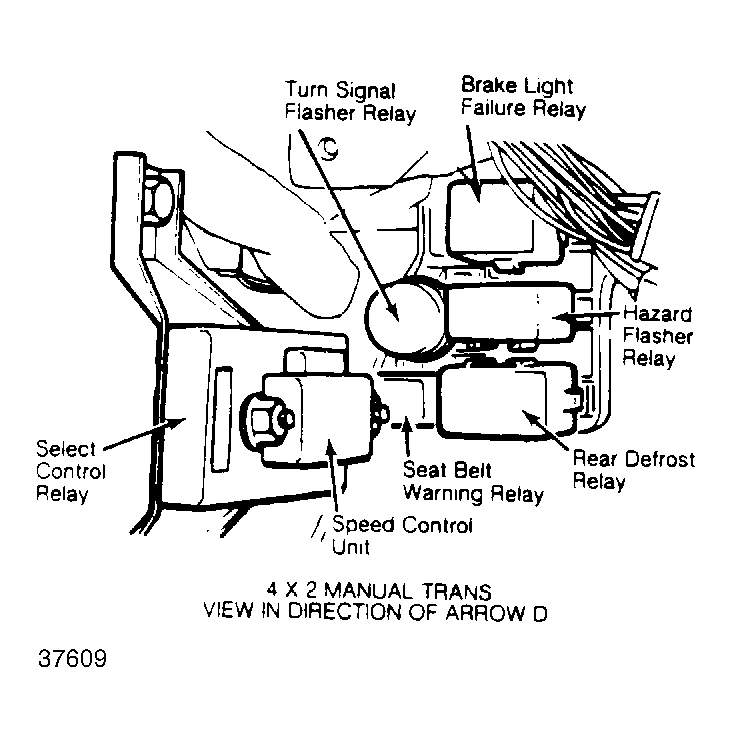

Speed Control Unit Under left side of dash. See Figure & Figure .
