Fuel Injection Pump

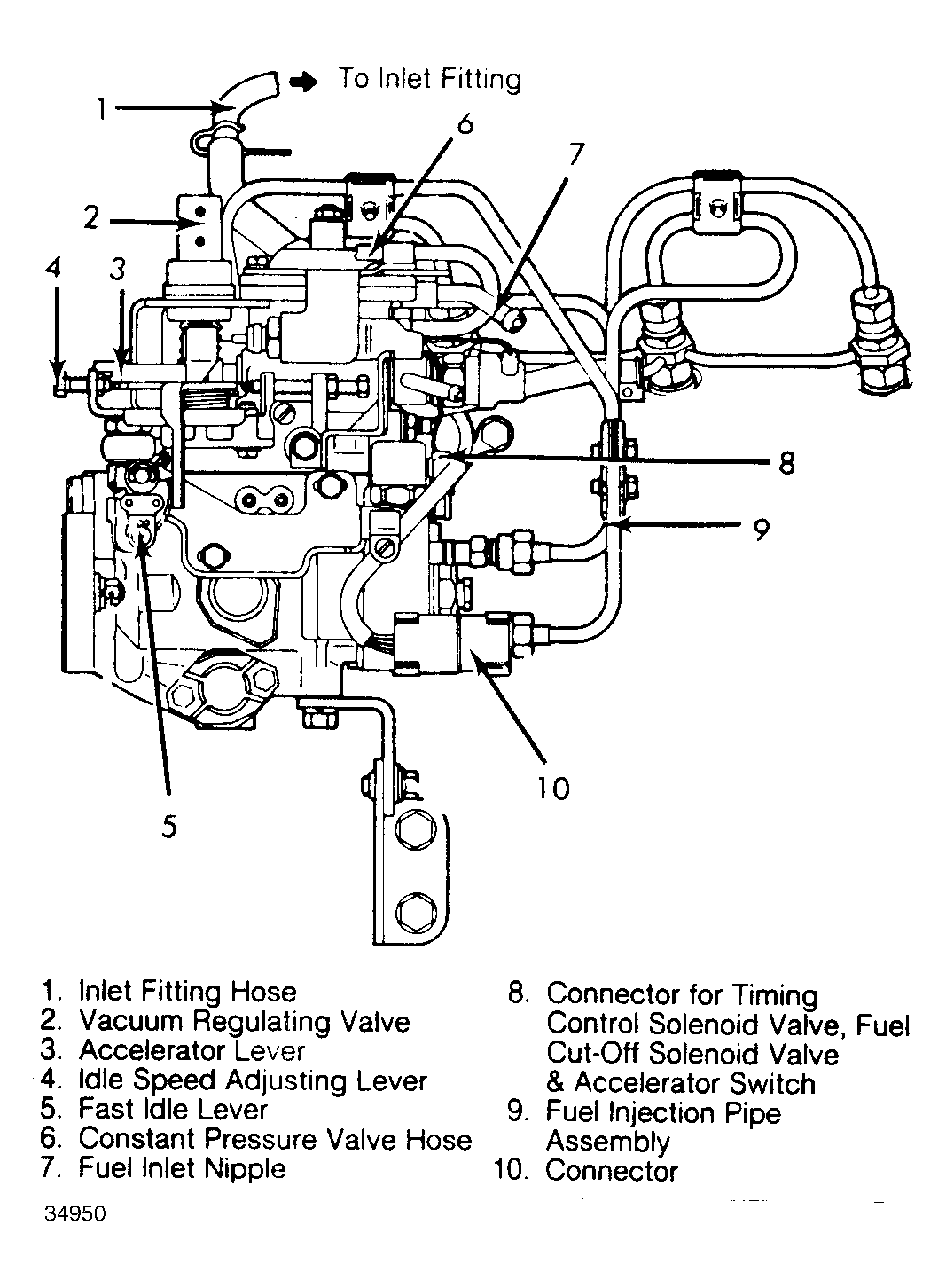

The vane pump output pressure (also referred to as the injection pump body pressure) averages between 50-100 psi depending upon the engine speed and application. The plunger type injection pump boosts this pressure to about 2000 psi. SeeFig 1 .
The injection spray nozzles spray fuel into a combustion prechamber as each compression stroke occurs. Nozzles can be disassembled, cleaned and adjusted to correct improper spray patterns.
Injector opening pressure can be adjusted with shims on top of the needle valve return spring. See Fig 2 . The injector receives a high pressure pulse of fuel which forces open the needle valve allowing fuel to pass into the prechamber.
