Speed Control System Specifications Update (STB-84-08-003)

Publication date: 1984-10-28
Reference number: STB-84-08-003

SPEED CONTROL SYSTEM SPECIFICATIONS UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): STB-84-08-003, Date of Issue: October, 1984

MITSUBISHI:	1983 and 1984 Cordia/Tredia
GROUP:	08 - Electrical

Superceded Bulletin(s): STB-84-08-003, Date of Issue: June, 1984

NOTE: This bulletin supersedes STB-84-08-003 issued June 1984. Previous issues should be discarded.

PURPOSE

Test values for the speed control actuator have been changed. The June issue of this bulletin contained orange labels to be placed at the tops of pages 8-177 of the 1984 Cordia/Tredia Service Manual and 8-164 of the 1983 Cordia/Tredia Service Manual as reference to this bulletin.

PAGE 8-177 AND PAGE 8-164 COMPONENT SERVICE - SPEED CONTROL SYSTEM

Change the text as shown below.

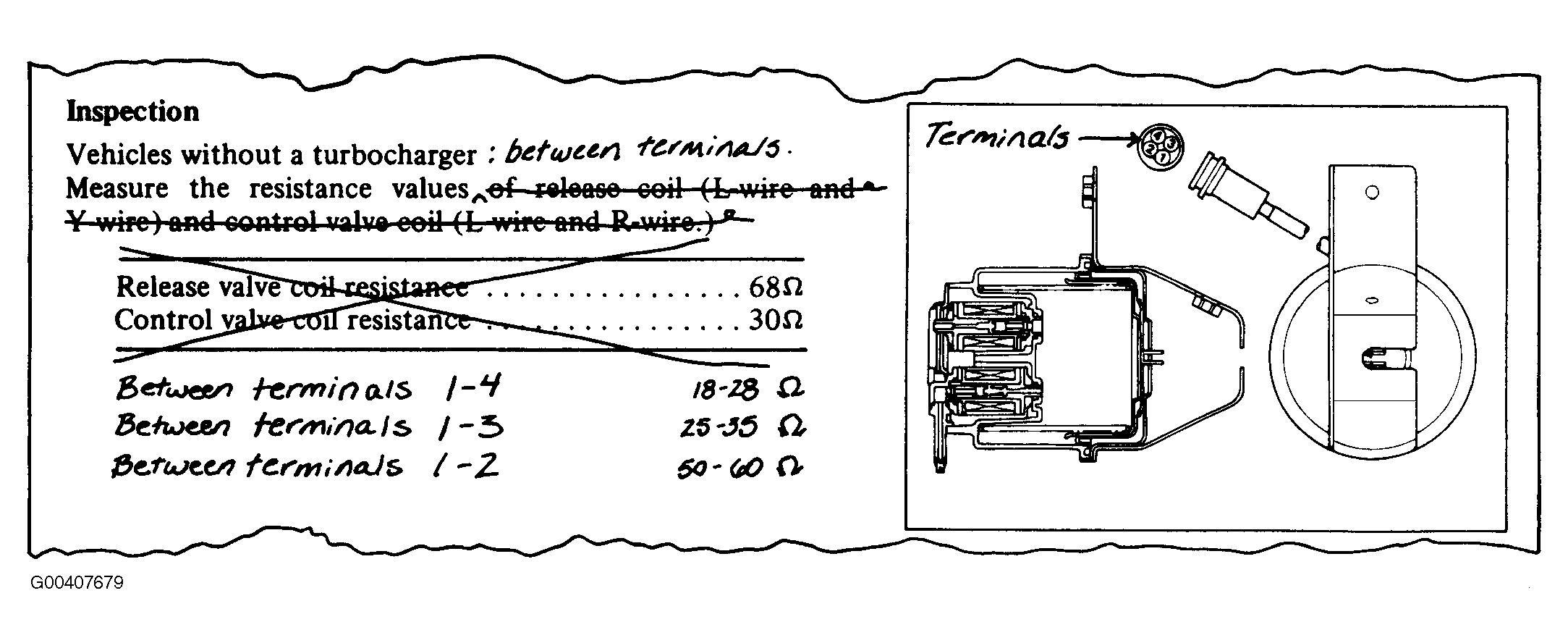

Fig 1: Revised Pages 8-177 & 8-164 Component Service - Speed Control System
