32 31 090 Removing and installing/replacing steering column

Preliminary work needed :

Removal :

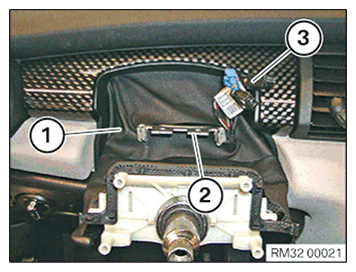

Feed out the steering column shroud (1) from the instrument cluster holder (2) and the wiring harness (3).

Courtesy of BMW OF NORTH AMERICA, INC.

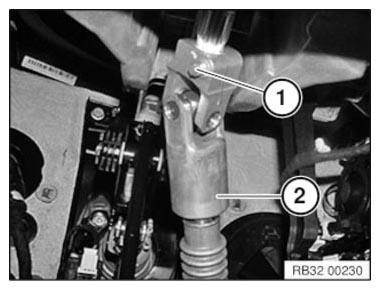

Release clamping bolt (1).

Release steering column from steering shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.

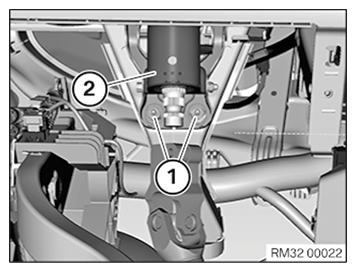

Release nuts (1) on bottom of steering column (2).

Courtesy of BMW OF NORTH AMERICA, INC.

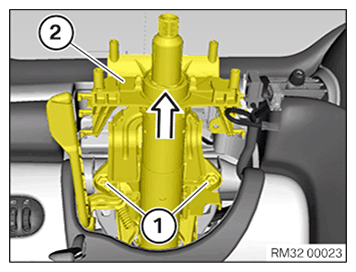

Unscrew nuts (1).

Unclip wiring harness holder from steering column.

Carefully remove steering column (2) towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation :

In case of replacement only:

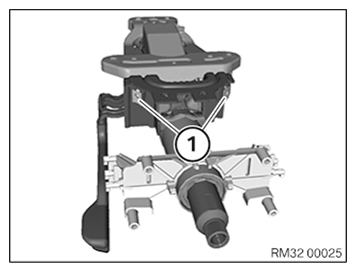

Remount sheet metal nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

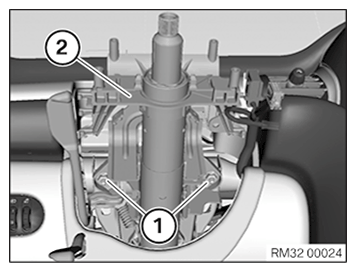

Carefully insert and position steering column (2) in instrument panel trim.

Secure wiring harness on steering column.

Tighten down nuts (1).

Tightening torque, 32 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nuts (1) on bottom of steering column (2).

Tightening torque, 32 31 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Insert steering column into steering shaft (2).

Tighten clamping bolt (1).

Part : Replace clamping bolt (1).

Tightening torque 32 31 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Feed the instrument cluster wiring harness (3) through the steering column shroud (1).

Feed instrument cluster holder (2) through steering column shroud (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work :
