Cooper Base, 2D Convertible, Standard Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Variable Camshaft Timing Control System -- Repair (F57)
>>
11 36 Variable Valve Timing Control System (VANOS)
>>
11 36 042 Removing and installing/replacing intake adjuster (Cooper base)
>>
Installing the intake adjuster
Installing the intake adjuster

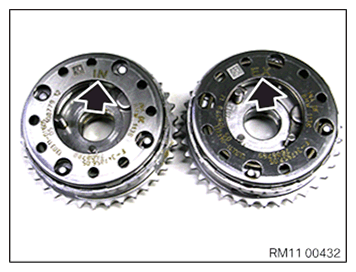

Lay out the intake adjuster marked with IN (arrow).
Courtesy of BMW OF NORTH AMERICA, INC.

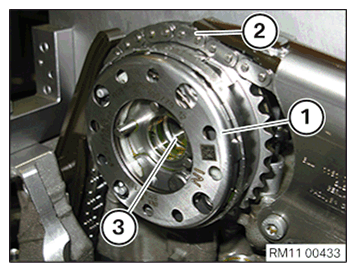

Feed in intake adjuster (1) in the timing chain (2) and position on the intake camshaft (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
