Installing both actuators
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

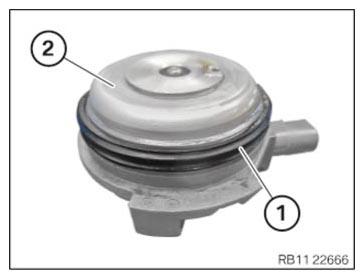

- Check the seal (1) for damage, if necessary, replace the seal (1) on the actuator (2).
- Feed in actuator (1) for exhaust side and position.

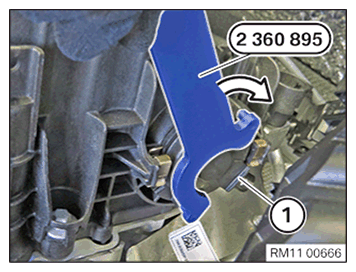

- Lock the actuator (1) on the exhaust side with the special tool 2 360 895 in the arrow direction.
- Make sure that actuator (1) for exhaust side engages audibly.
- Feed in actuator (1) for intake side and position.

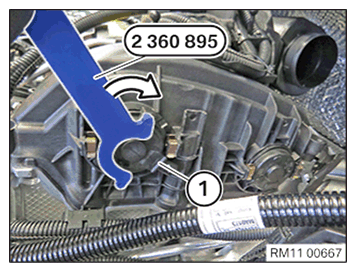

- Lock the actuator (1) on the intake side with the special tool 2 360 895 in the arrow direction.
- Make sure that actuator (1) for intake side engages audibly.

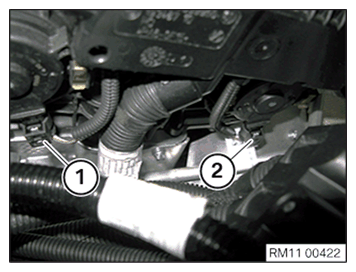

- Connect connectors (1) and lock.
- Connect connectors (2) and lock.
- Make sure that the connector (1) and (2) engages audibly.

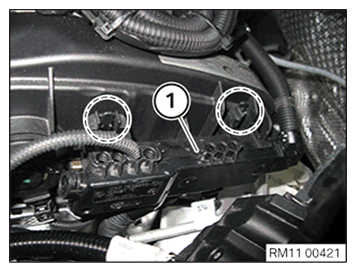

- Guide in the wiring harness section (1) and install.
- Ensure that the locks snap-in audibly in the marked areas .
Follow-up work
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE PORT .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING SECOND UPPER FIREWALL .
- Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE BATTERY COVER .
- Refer to INSTALLING THE LEFT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
