Installing left and right coil spring

Install the coil springs

• The installation position of the coil spring must be followed.

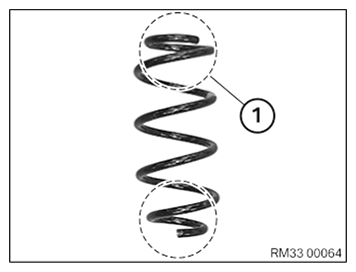

  NOTE: The upper end of the coil spring (1) is flatter.

  Courtesy of BMW OF NORTH AMERICA, INC.

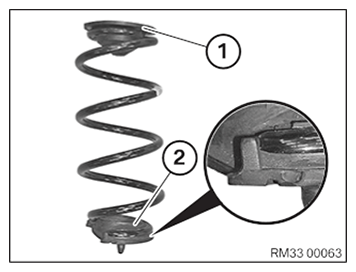

• Check the spring pad at the top (1) and the spring pad at the bottom (2) for damage, replace if necessary.
• Align the lower coil spring end at the lower spring pad (2) to the stop.

  Courtesy of BMW OF NORTH AMERICA, INC.

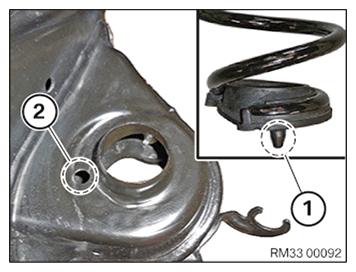

• While feeding in, position the coil spring with pin (1) of the lower spring pad into the hole (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

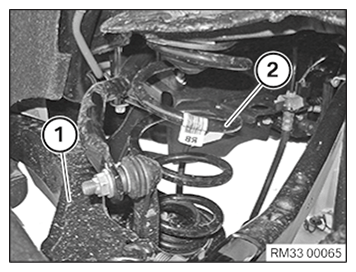

• Pull the trailing arm (1) down slightly.
• Feed in the coil spring (2).
• Check the position of the upper and lower spring pad, correct if applicable.

  Courtesy of BMW OF NORTH AMERICA, INC.

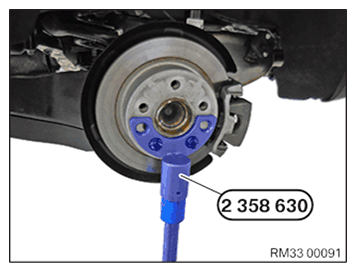

• Insert the universal jack in the special tool 2 358 630.
• Raise the trailing arm using the universal jack and special tool 2 358 630  until the shock absorber can be screwed to the trailing arm.

  Do not press against the spring force of the coil spring.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the NORMAL POSITION .

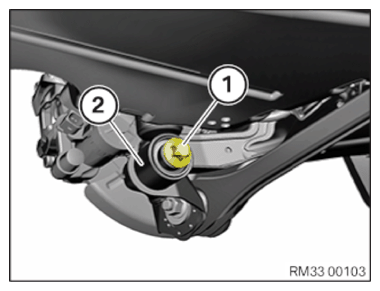

• Position shock absorber (2) on the trailing arm.
• Replace the screw (1).

  Parts:  Screw

• Tighten screw (1) by hand.

  The screw connection is tightened later in NORMAL POSITION .

  Courtesy of BMW OF NORTH AMERICA, INC.

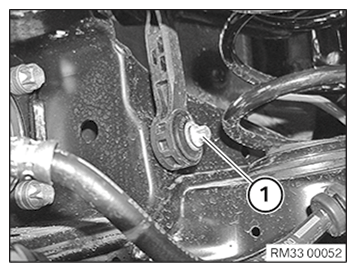

• Position the anti-roll bar link on the trailing arm.
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Anti-roll bar link on trailing arm
  M8	tightening torque	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the lug bolts at the special tool 2 358 630.
• Lower the workshop jack and place to one side.
