Installing air conditioning condenser

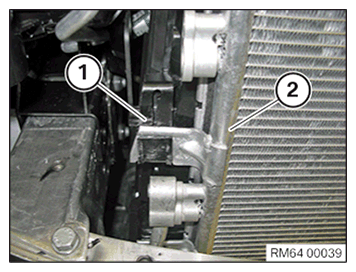

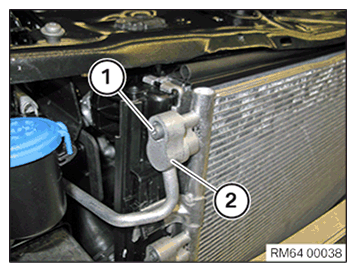

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Refrigerant line to air conditioning condenser
M6
	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

On version A:

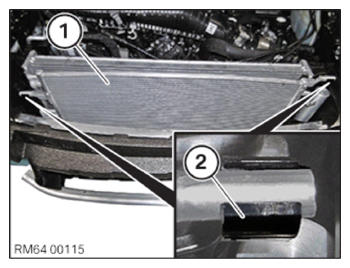

Slide down air conditioning condenser (1) and snap it into locks (2).

Courtesy of BMW OF NORTH AMERICA, INC.
On version A:

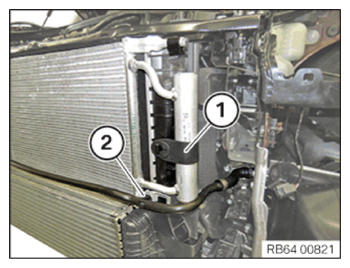

Attach retaining strap (1).

Engage hose support (2).

Courtesy of BMW OF NORTH AMERICA, INC.
On version B:

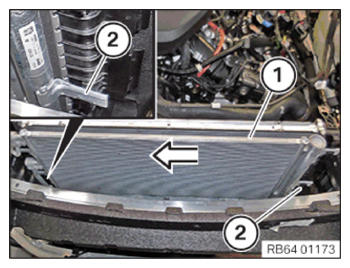

Slide air conditioning condenser (1) in the arrow direction and insert it with guides (2).

Courtesy of BMW OF NORTH AMERICA, INC.
For equipment specification with variant B:
Push the air conditioning condenser (2) from top to bottom and engage left and right latch mechanism (1).

Courtesy of BMW OF NORTH AMERICA, INC.

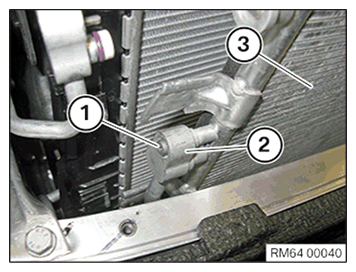

Attach refrigerant line (2).

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Refrigerant line to air conditioning condenser
M6
	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

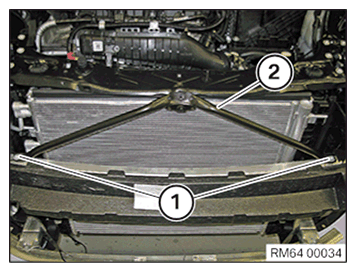

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Front reinforcement strut
screw	Tightening torque	11.8 Nm
