Structure and inner electrical connection

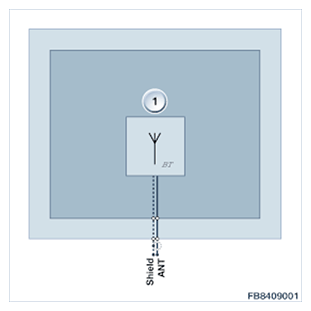

The Bluetooth aerial is connected to the corresponding control unit via an aerial line (e. g. Telematic Control Unit, interface box, Combox, radio or headunit).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
| Item |
Explanation |
| 1 |
Bluetooth aerial |
PIN ASSIGNMENT SPECIFICATION
| Pin |
Explanation |
| ANT |
Signal line |
| Shield |
Shielding |
