Removing and installing/replacing battery of telematics control module (Cooper Convertible )
WARNING: This page is about a different variant/trim than selected.
Preliminary work needed:
- Remove telematics CONTROL MODULE .
Removal:

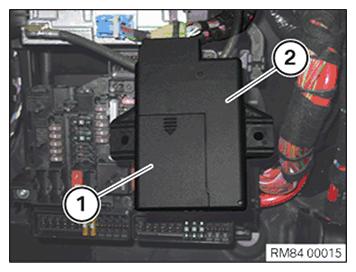

Open lid (1) on telematics control module (2) and remove.
Disconnect plug.

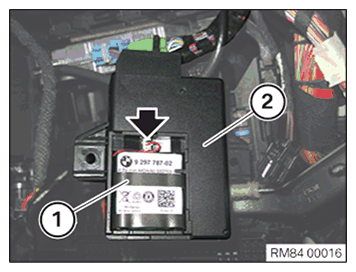

Remove rechargeable battery (1) from telematics control module (2).
Installation:
Connect connector.
Insert battery (1) into telematics control module (2) and connect plug.
NOTE:
Make sure battery and connector are correctly fitted.
Position and close lid (1) on telematics control module (2).
NOTE:
Make sure lid (1) is correctly fitted.
Required follow-up work:
- Install telematics CONTROL MODULE .
