Install right headlight

NOTE: Only perform the operation on the right side.

Install headlight

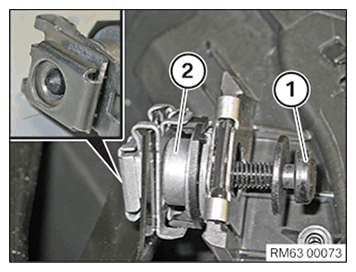

Replace the adjusting elements (2).
Parts: Adjusting elements

The adjusting elements (2) must not be reused.
Replace screws (1).
Parts: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

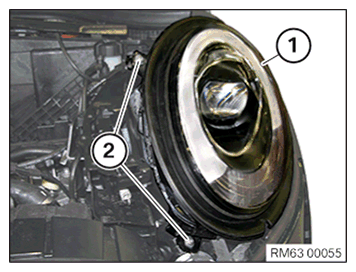

Position the headlamp (1).
Only press the screws (2) into the adjusting element until you feel a stop.
Screws (2) must not be screwed in.

Courtesy of BMW OF NORTH AMERICA, INC.

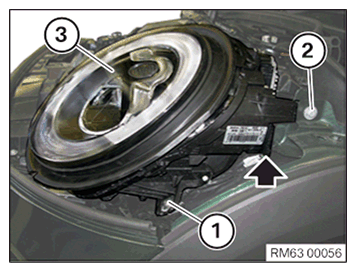

Tighten screw (2) on headlamp (3) hand-tight.
Press the screw (1) into the adjusting element only until it reaches a stop noticeably.
The screw (1) must not be screwed in.

Courtesy of BMW OF NORTH AMERICA, INC.
Release detents (1) and (2).
Remove seal (3) from headlamp.

Courtesy of BMW OF NORTH AMERICA, INC.

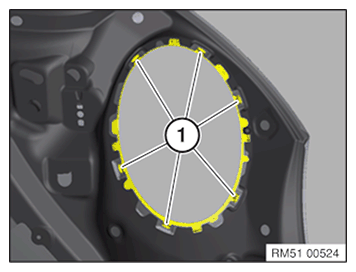

Release detents (1) and remove chrome ring from hood.

Courtesy of BMW OF NORTH AMERICA, INC.

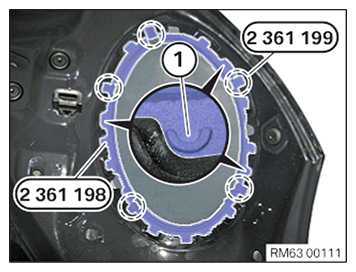

Insert the special tool 2 361 198 into the hood from the outside.
Guide lugs (1) are affixed for correct installation.
Secure special tool 2 361 198 using special tool 2 361 199 .

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the hood only lies flat.
The hood must not be closed.

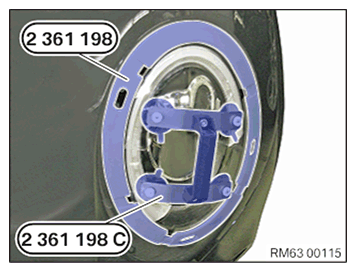

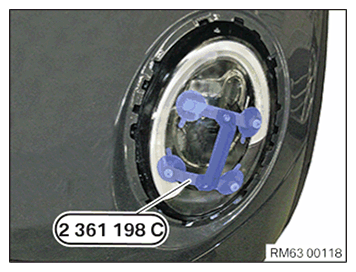

Position the special tool 2 361 198 (C) on headlight (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the hood only lies flat.
The hood must not be closed.
Insert the special tool 2 361 198 into the hood from the outside.
Secure special tool 2 361 198 using special tool 2 361 199 .

Courtesy of BMW OF NORTH AMERICA, INC.
Close the engine compartment lid.
The hood must be closed correctly on both sides.

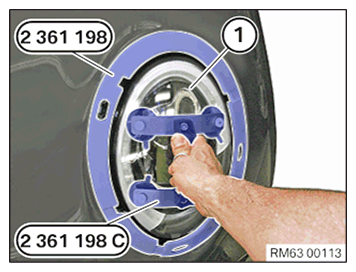

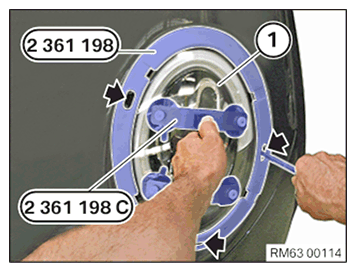

Lift, align and hold the headlight (1) using special tool 2 361 198 (C).

Courtesy of BMW OF NORTH AMERICA, INC.
If the headlamps cannot be aligned:
Raise hood.

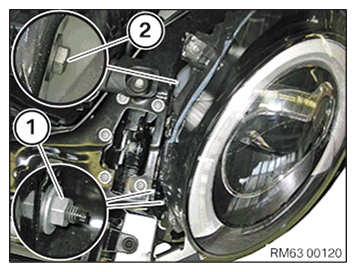

Slacken nuts (1) and screw (2).

Slide headlamp slightly backwards.

Tighten nuts (1) and screw (2) hand-tight.

Close the engine compartment lid.

Lift, align and hold the headlight (1) using special tool 2 361 198 (C).

Courtesy of BMW OF NORTH AMERICA, INC.

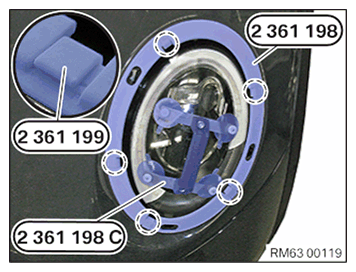

Keep the aligned headlights (1) in position with the special tool 2 361 198 .
Tighten the screws through the openings of the special tool 2 361 198 .

TIGHTENING TORQUES SPECIFICATION

Headlight to body
screw Replace screws and adjusting elements	Tightening torque	6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Check the alignment of the headlamp.
Remove the special tool 2 361 198 (C).
Raise hood.
Remove the special tool 2 361 198 .

Courtesy of BMW OF NORTH AMERICA, INC.

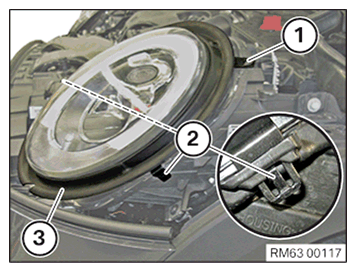

Install the seal (3) on the headlight.
The locks (1) and (2) must snap-in correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten screw (2) on headlamp (3).

TIGHTENING TORQUES SPECIFICATION

Headlight to side panel
screw	Tightening torque	6 Nm

Connect the connector (arrow).
Clip in cable clip.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the chrome ring in the hood.
The clamps (1) must snap-in noticeably.

Courtesy of BMW OF NORTH AMERICA, INC.
