Checking undercoating for damage

Check

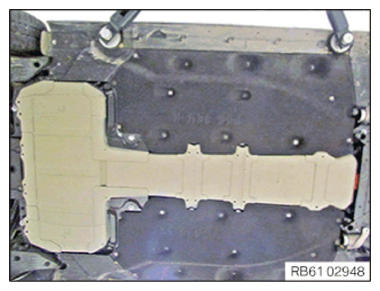

• Check undercoating for damage to prevent corrosion on the lower housing section.

  Result

  » Undercoating damaged.

  Measure

• Repair undercoating.
• Clean damaged area using the cleaning agent R2.

  When using the cleaning agent R2, an air drying time of 15 minutes must be observed.

  CONSUMABLE SPECIFICATION



  Cleaning agent R2

  500 ml

  83190417324

• Prime the area and the area around amply.
  PAINTS



  Emergency program base filler 2K spray

  200 ml, Processing time 8 h

  51910432615

  Courtesy of BMW OF NORTH AMERICA, INC.

• Wait for priming to cure.
• Apply sealant and spread it.
  CONSUMABLE SPECIFICATION



  Sealant D2

  290 ml

  83425A547B9
