Remove transmission
Remove transmission

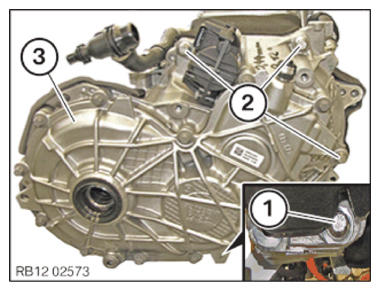

Release screw (1) (rear).
Loosen screws (2).
Courtesy of BMW OF NORTH AMERICA, INC.

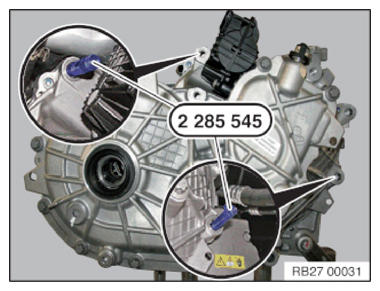

Screw In the special tool
2 285 545
into the electrical machine.
Pull the transmission from the electrical machine.
Do not tilt the transmission, otherwise transmission oil will run out.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
