Remove air conditioning compressor

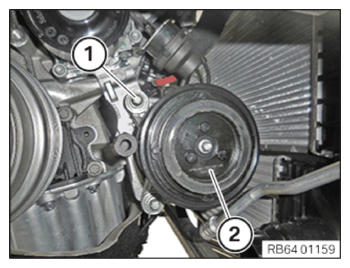

Unscrew screw (1) on air conditioning compressor (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Slacken screw (1) and slide air conditioning compressor (2) slightly forwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock the plug connection (1) at the top on the air conditioning compressor (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.
Release the screws (1) and remove the refrigerant line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.
Loosen screw (1).
Guide out air conditioning compressor (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
