Installing the lid
Installing the lid
CAUTION:
Sharp-edge components.
Injury hazard!
Where applicable, cover up or mask off sharp-edged components.

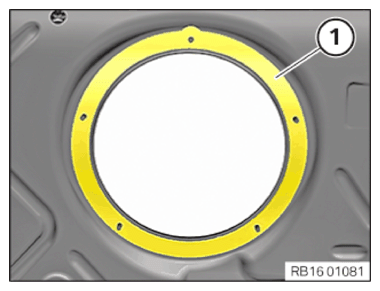

Check the seal (1) for damage and replace if necessary.
Courtesy of BMW OF NORTH AMERICA, INC.

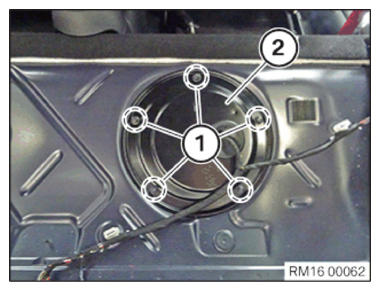

Install the lid (2).
Tighten nuts (1).
TIGHTENING TORQUES SPECIFICATION
Plastic nut with flange to body
Plastic nut
tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
