Installing air conditioning compressor

NOTE: TECHNICAL INFORMATION
Secure component against falling.

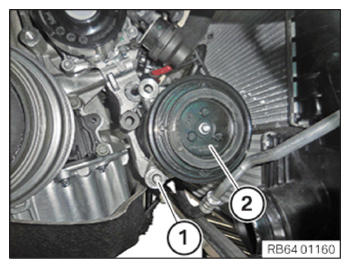

Feed in the air conditioning compressor (2) and position it.
Position the bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

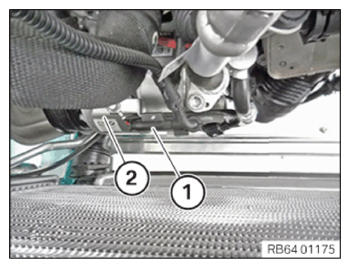

Connect plug connection (1) at top on air conditioning compressor (2) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

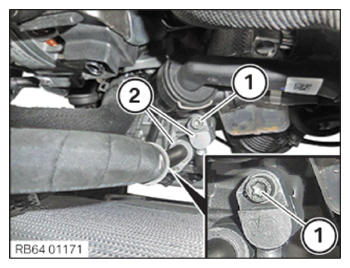

Position refrigerant lines (2) at top on air conditioning compressor.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Refrigerant line on air conditioning compressor
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

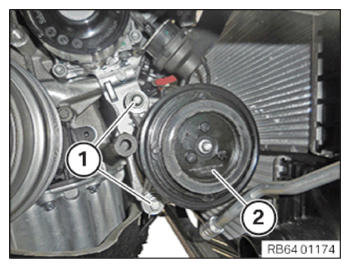

Position air conditioning compressor (2) correctly and tighten screws (1).

TIGHTENING TORQUES SPECIFICATION

Air conditioning compressor in component carrier
M10	Tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
