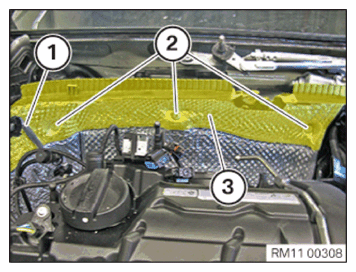

Install second upper firewall

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Second firewall
screw	Tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

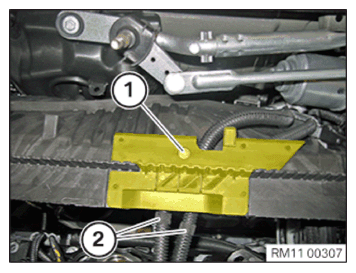

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Wiring harness holder to second firewall
screw	Tightening torque	1.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Second firewall
screw	Tightening torque	5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

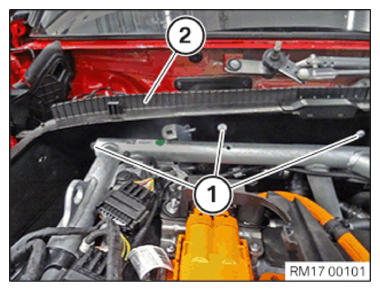

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Courtesy of BMW OF NORTH AMERICA, INC.
