Removing and installing/replacing right charge-air duct (B36 engine) (Cooper base)

Safety instructions:

In the event of a leak at the pressure pipe, there is a risk of damage on the exhaust turbocharger!

Preliminary work needed:

Removal:

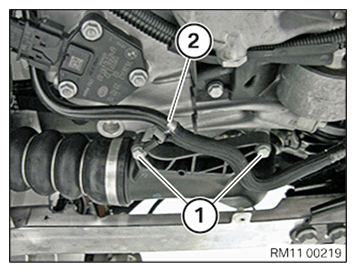

Loosen screws (1)

Unclip line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

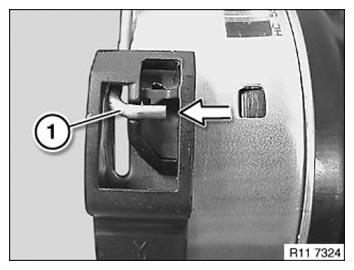

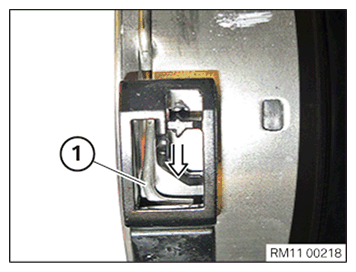

NOTE: Locks (1) must engage in holders (see arrow).

Courtesy of BMW OF NORTH AMERICA, INC.

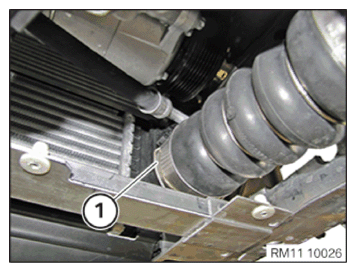

Unlock lock (1) on both sides with suitable tool.

Detach charge air duct from charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

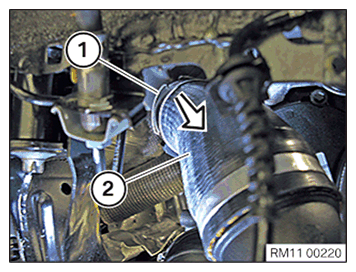

Unlock lock (1) on both sides with suitable tool.

Detach charge air duct (2) from exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

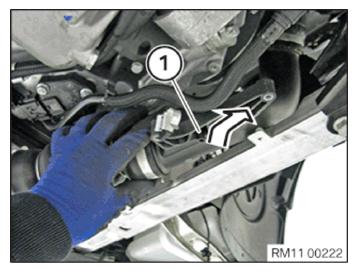

Remove charge air duct (1) towards bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

IMPORTANT: In the event of a leak on the charge air duct, there is a risk of damage to the exhaust turbocharger!

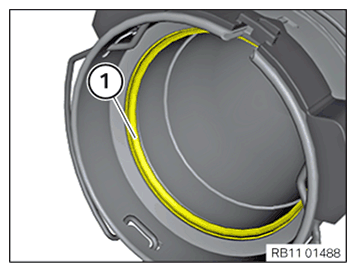

Check sealing lip (1) for damage.

NOTE: If sealing lip (1) is damaged, the gasket must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

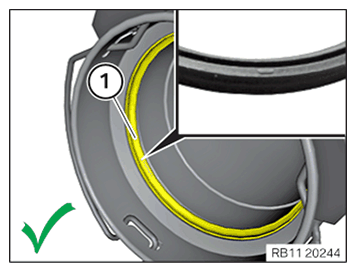

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted correctly in the pressure pipe.

Courtesy of BMW OF NORTH AMERICA, INC.

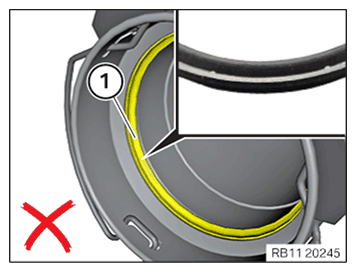

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted incorrectly in the pressure pipe.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Release locks (1) from holders.

Locks must engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Install charge air duct (1).

Courtesy of BMW OF NORTH AMERICA, INC.

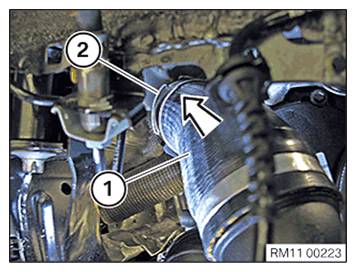

Connect charge air duct (1) to exhaust turbocharger until lock (2) engages on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect charge air duct (1) to charge air cooler until lock (1) engages on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 00 2AZ .

Clip in line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
