Removing and installing/replacing left-hand charge air duct (B36 engine) (Cooper base)

Preliminary work needed:

• Remove INTAKE SILENCER HOUSING .
• Remove front UNDERBODY PROTECTION .
• Remove THRUST FIELD .

REMOVAL:

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock lock (1) on both sides with suitable tool.

Detach charge air duct (2) from charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock lock (1) on both sides with suitable tool.

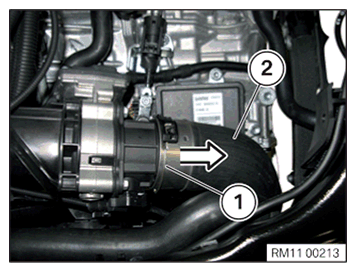

Detach charge air duct (2) from throttle valve.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn charge air duct (1) and remove upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Check sealing lip (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted correctly in the pressure pipe.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted incorrectly  in the pressure pipe.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Release locks (1) from holders.

Courtesy of BMW OF NORTH AMERICA, INC.

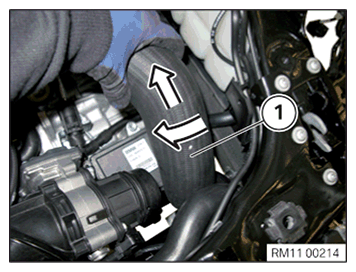

Turn charge air duct (1) and feed in downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

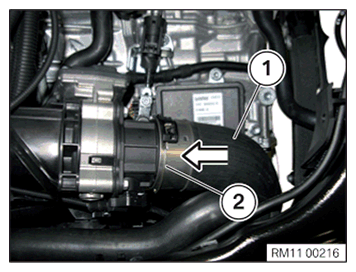

Connect charge air duct (1) to throttle valve until lock (2) engages on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

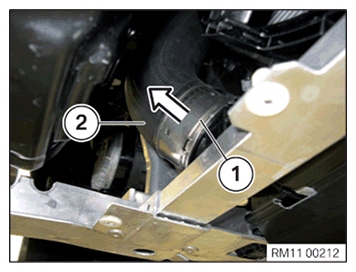

Connect charge air duct (1) to charge air cooler until lock (2) engages on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install front UNDERBODY PROTECTION .
• Install THRUST FIELD .
• Install INTAKE SILENCER HOUSING .
• Check turbocharging path for leak tightness.
• Check function of DME.
