Installing fog light support
Installing fog light support

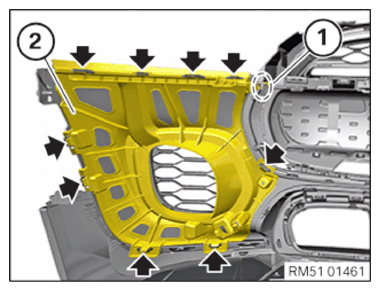

Install the fog light bracket (2) and engage it at the detents (arrows).
Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
Ornamental grille at the center to fog light bracket
M6x20 screw
tightening torque
4.6 Nm
