Installing the oxygen sensor monitor
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
NOTE:
TECHNICAL INFORMATION
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
- Prepare the oxygen sensor.
Do not damage the sensor ceramics.

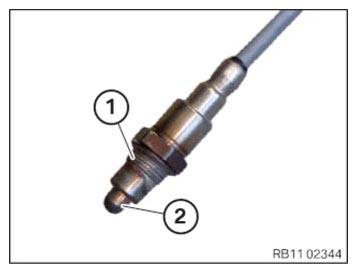

(1) = Thread
(2) = Sensor ceramics

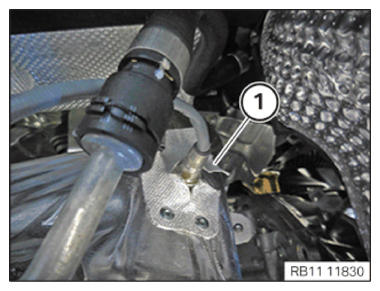

NOTE: The cable of the oxygen sensor monitor is gray. The installation location of the oxygen sensor monitor is behind the catalytic converter. - Insert the oxygen sensor monitor (1) and install it.

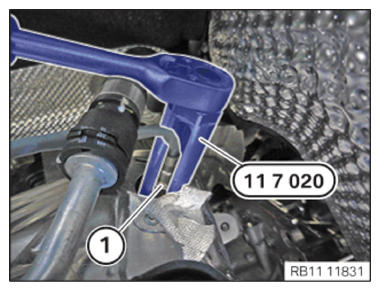

- Tighten the oxygen sensor monitor (1) with the special tool 0 491 074 (11 7 020). TIGHTENING TORQUES SPECIFICATION

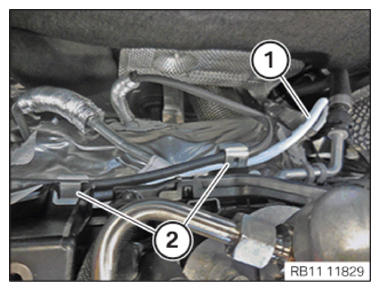

Oxygen sensor monitor Oxygen sensor monitor tightening torque 50 Nm - Insert and install the cables (1) in the clamps (2).

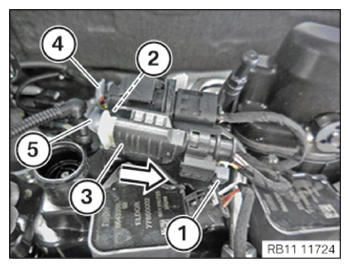

- Insert connector (3) in the direction of the arrow and install.
The lock (2) must audibly engage.
- Slide cable (5) into the clamp (4) and install.
- Connect and lock the connector (1).
The connector (1) must engage audibly.
NOTE:
TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
NOTE:
TECHNICAL INFORMATION
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
For additional information see: 11 00... OVERVIEW OF CONSUMABLES IN APPLICABLE BMW PARTS CATALOGUE
- Prepare the oxygen sensor.
Do not damage the sensor ceramics.
- Thread
- Sensor ceramics
NOTE: The cable of the oxygen sensor monitor is gray. The installation location of the oxygen sensor monitor is behind the catalytic converter. - Insert the oxygen sensor monitor (1) and install it.

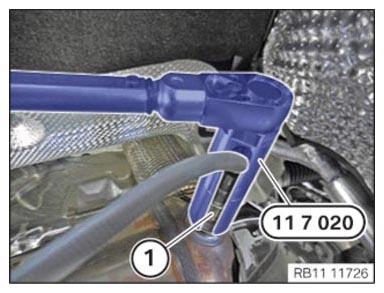

- Tighten the oxygen sensor monitor (1) with the special tool 0 491 074 (11 7 020). TIGHTENING TORQUES SPECIFICATION
Oxygen sensor monitor Oxygen sensor monitor tightening torque 50 Nm - Guide in and install cover (1).

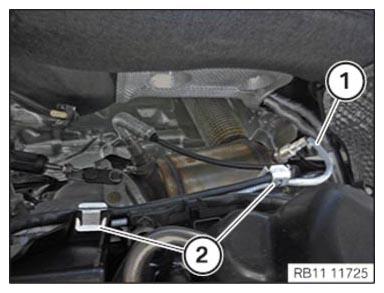

- Insert and install the cables (1) in the clamps (2).
- Insert connector (3) in the direction of the arrow and install.
The lock (2) must audibly engage.
- Slide cable (5) into the clamp (4) and install.
- Connect and lock the connector (1).
The connector (1) must engage audibly.
