Installing control unit (AISIN GA8G45)
Installing control unit (AISIN GA8G45)

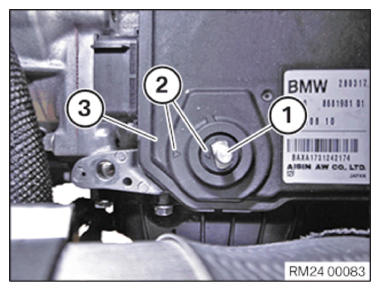

Before installing control unit (3), turn lever (1) so that arrows (2) point to one another.
Courtesy of BMW OF NORTH AMERICA, INC.

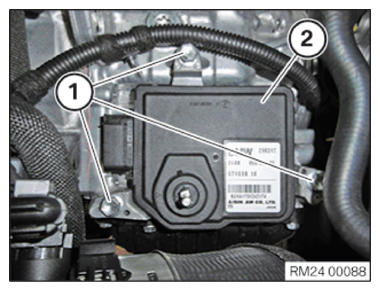

Tighten screws (1) on control unit (2).
TIGHTENING TORQUES SPECIFICATION
Control unit to transmission
M8
Tightening torque
25 Nm
Courtesy of BMW OF NORTH AMERICA, INC.

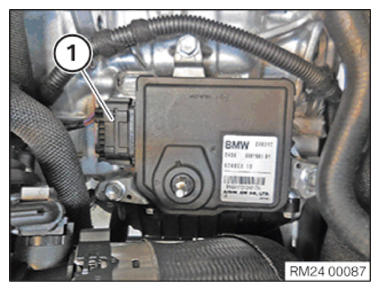

Connect connectors (1) and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
