Install right output shaft

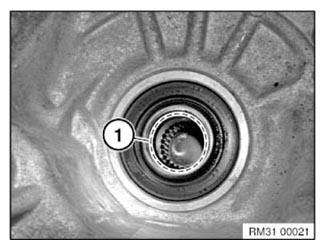

- Lever out the O-ring (1).
- Replace O-ring (1).
Parts: O-ring
- Insert O-ring (1).
- Insert the installation protection ring (1) into the radial shaft seal.
The installation protection ring (1) is included with the new radial shaft seal for the output shaft.
- Make sure the tool fits over the lip of the radial shaft seal to avoid damaging the sealing ring when inserting the output shaft.

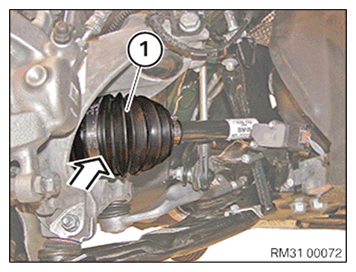

- Insert the output shaft (1) in arrow direction in the transmission.
- Before the sealing surface is pushed into the radial shaft seal, remove the installation protection ring (2) by pulling the handle.
- Slide the output shaft (1) up to the stop in the transmission.
- Position the output shaft (2) and tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Output shaft bearing to engine block M10 Tightening torque 38 Nm - Turn steering wheel to right.
- Insert the output shaft (1) from the front into the swivel bearing.
- Note the installation position of the compression spring (2) on the collar screw (1).
- Keep the collar screw (1) and the front gearing of the wheel bearing and the output shaft clean and free of grease.
- Replace the collar screw (1) and the compression spring.
Parts: Collar screw, compression spring
- Hand-tighten the collar screw (1) and the compression spring.

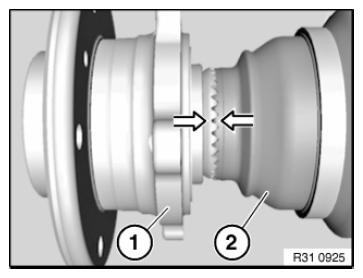

- Install the front gearing of wheel bearing (1) and the output shaft (2) to establish a positive connection (tooth-in-tooth position).
- Twist the wheel hub and output shaft in opposite directions to check whether the front gearing teeth mesh. Tighten the threaded connection when positive locking is ensured.TIGHTENING TORQUES SPECIFICATION
Output shaft to wheel bearing M16

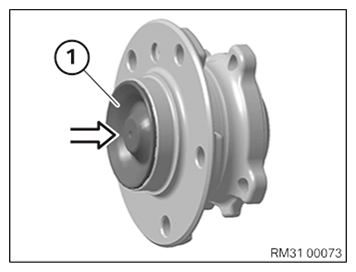

Replace the collar screw.Joining torque 210 Nm Angle of rotation 90° - If necessary, connect the protective cap (1) in arrow direction.
