11 37 005 Removing and installing/replacing the eccentric shaft

Special tools required:

WARNING: The following points must be strictly observed prior to starting work:

Observe safety instructions for working with electric vehicles. Refer to SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .

Preliminary work needed:

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

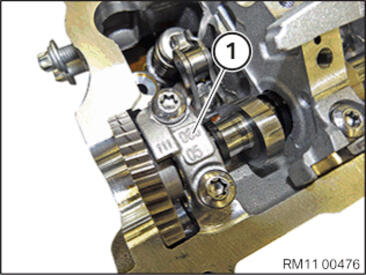

Release screws (1).

Set down the bearing cap neatly in special tool 11 4 480 .

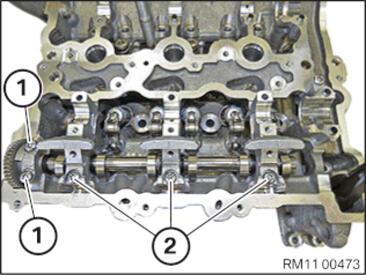

Release all screws (2) evenly.

Set down all bearing brackets neatly in special tool 11 4 480 .

NOTE: All bearing brackets must be reinstalled in the same positions in an engine which has already been in use.

Remove intermediate shaft (1) from cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

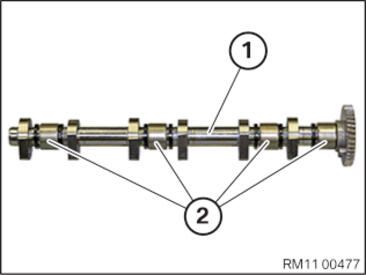

Check all needle bearings (2) of eccentric shaft (1) for ease of movement.

IMPORTANT: If one or more needle bearings are faulty the complete eccentric shaft must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

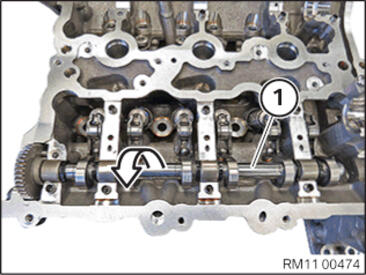

Clean all bearing positions (1) and coat with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

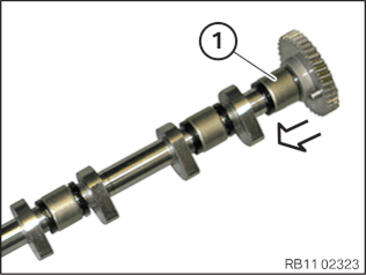

Before assembly of the eccentric shaft shift the needle bearing (1) in the direction of the arrow up to the stop.

Courtesy of BMW OF NORTH AMERICA, INC.

Oil the needle bearings of eccentric shaft (1).

Mount eccentric shaft on cylinder head.

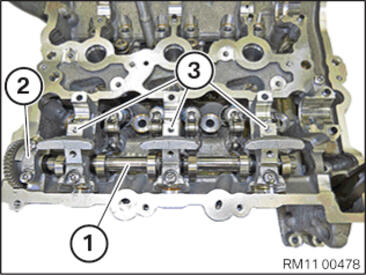

Mount bearing shell (2) and bearing brackets (3) on cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

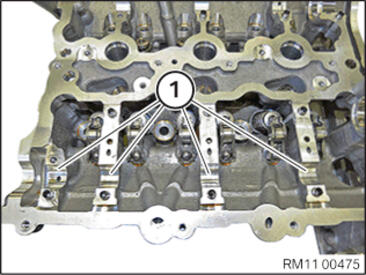

The bearing cap (1) is provided with a stop.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all screws (1 and 2) evenly.

Tightening torque 11 37 3AZ .

Required follow-up work:
