12 14 550 Replacing control unit (DME) (B38 hybrid powertrain)

Preliminary work needed:

• Remove UPPER FIREWALL COVER .
• Remove VEHICLE BATTERY .

Replacement:

• Carry out programming/coding
• If no data can be read out from the previous control unit, carry out injection quantity compensation (description at end of instructions).

Removal:

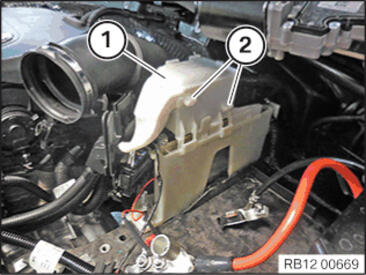

Unlock and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

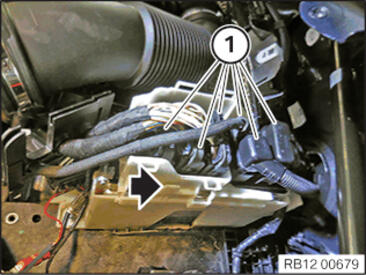

Unlock and detach all connectors (1) in the arrow direction at the control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

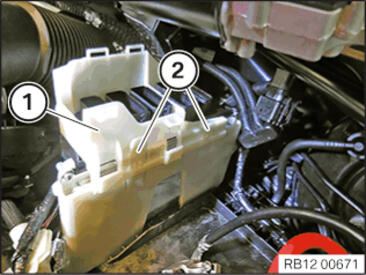

Unlock lock (2) and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

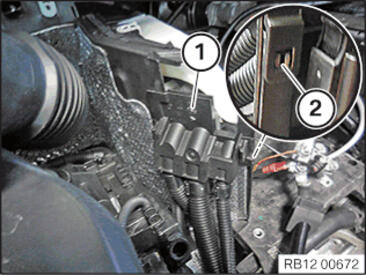

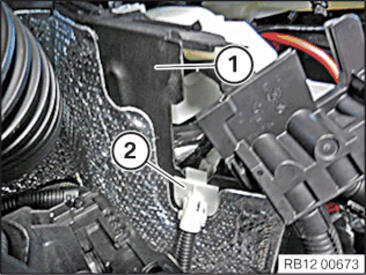

Unlock the lock (2) and release the cable clip (1) and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the cable clip (2) from cover (1) and lay to one side.

Feed out cover (1) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

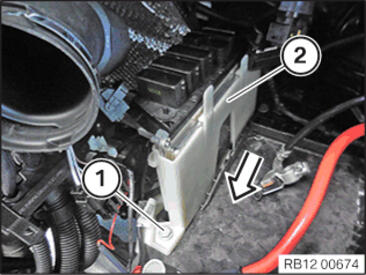

Loosen screw (1).

Loosen the equipment holder (2) in the arrow direction from the battery plate and pull it a bit towards the front.

Courtesy of BMW OF NORTH AMERICA, INC.

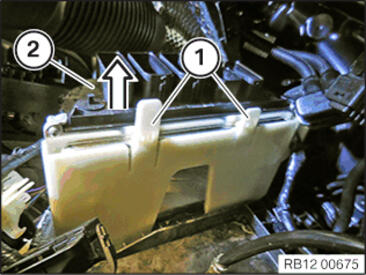

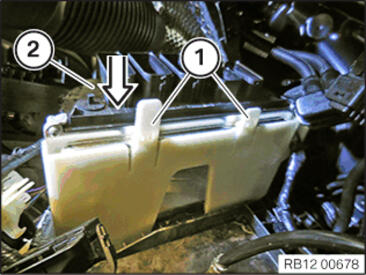

Unlock locks (1) and remove DME control unit (2) in upwards direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push the DME control unit (2) into the equipment holder until the locks (1) can be locked.

Courtesy of BMW OF NORTH AMERICA, INC.

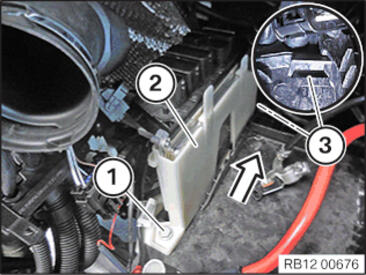

Insert the equipment holder (2) in the arrow direction at the rear into the battery plate (3).

Tighten screw (1).

Tightening torque 12 90 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Lock the cover (1) in the lock (2).

Lock (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

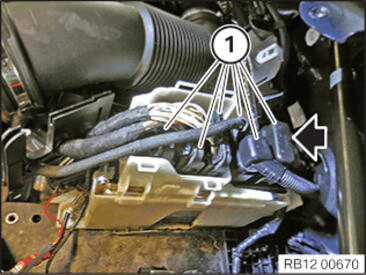

Connect all connectors (1) at the control unit in the arrow direction.

All connectors (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Lock the cover (1) in the lock (2).

Lock (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the cover (1).

Attach the cable clip (2) to the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the cable clip (1) and lock it in the lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install VEHICLE BATTERY .
• Install UPPER FIREWALL COVER .

Attention!

If the DME control unit has been replaced, it will also be necessary to reset the minimum quantity adjustment of the injectors!

Reset minimum quantity adaptation:

• Connect diagnostic system and follow the diagnosis instructions.
• Read out vehicle data
• Identification without vehicle test
• Start vehicle test
• Vehicle handling
• Service functions
• Power train
• Engine electronics
• Adjustment programs
• Delete adaptations
• Reset adaptation values
• Resetting minimum quantity adaptations
