61 13... Inline plugs, 3-, 6-pin, System Elo-Power 2.8

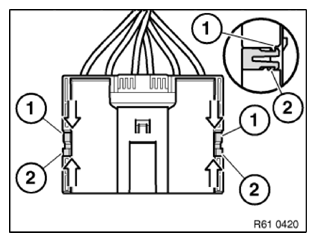

Press locking hooks (1) in arrow direction and disengage. Then unlock locking hooks (2) and remove locking mechanism.

Fig 1: Pressing Locking Hooks
G11774915Courtesy of BMW OF NORTH AMERICA, INC.

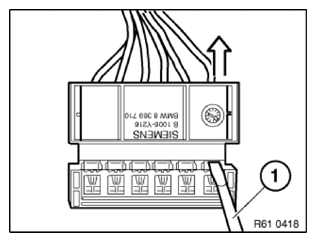

Press down safety catch with screwdriver (1) and pull out cable with contact towards rear.

Fig 2: Pressing Down Safety Catch With Screwdriver
G11774916Courtesy of BMW OF NORTH AMERICA, INC.
